Maytag MGR6775BDB13 Parts List

Popular Searches: (Click to search)    2oz  black  burner  center  door  front  holder  igniter  ignitor  lower  orifice  oven  paint  pressurized  screw  sensor  spray  top  touch  white


Select a Diagram

01 - Cooktop Parts

02 - Control Panel Parts

03 - Manifold Parts

04 - Chassis Parts

05 - Upper Door Parts

06 - Lower Door Parts

07 - Rack Parts, Optional Parts (not Included)

Select Diagram ... 01 - Cooktop Parts 02 - Control Panel Parts 03 - Manifold Parts 04 - Chassis Parts 05 - Upper Door Parts 06 - Lower Door Parts 07 - Rack Parts, Optional Parts (not Included)

05 - Upper Door Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	2402W248-19	Lining, Door	$75.60 Special Order
2	WP74001574	Nut, Snap (black)	$6.70 Special Order
	WP7103P114-60	Nut, Snap (white)	$6.70 Special Order
3	WP7201P091-60	Gasket, Door	$90.70 Special Order
4	74004566	Glass, Inner (2)	$59.60 Special Order
5	74004567	Frame, Glass	Call for Availability
6	W11233072	Screw	$8.70  In-Stock Retail: $8.47
7	74009976	Baffel, Door	$8.70 Special Order
8	74004569	Insulation, Door	Call for Availability
9	WP74009541	Screw (bisque)	$4.60 Special Order
	WP98008545	Screw (black)	$11.60  In-Stock Retail: $11.31
	WP98008544	Screw (white) (Replaces: 74009540 7101P373-60)	$9.00 Special Order
10	74004592	Retainer, Glass	Call for Availability
11	12002454	Glass, Door (black)	$48.60 Special Order
	12002455	Glass, Door (white)	Call for Availability
	12002456	Glass, Door (bisque)	$54.00 Special Order
12	3801F831-45	Bracket, Handle (right)	$13.70 Special Order
	3801F832-45	Bracket, Handle (left)	$13.70 Special Order
13	WP74005546	Spacer, Rubber	$6.00 Special Order
14	WP74006515	Screw W/washer	$4.80 Special Order
15	W11111008	Screw (10abx1/4p)   (Replaces: 7101P208-60)	$8.70 Special Order
16	WP3608F141-71	Trim, Door Top (white)	$139.50 Special Order
	3608F141-70	Trim, Door Top (black)	$89.50 Special Order
	74009691	Trim, Door Top (bisque)	Call for Availability
17	WP74006515	Screw, Handle (2)   (Replaces: 74011674)	$4.80 Special Order
18	74009745	Trim, Door (rt) (black)	$4.40 Special Order
	74009749	Trim, Door (rt) (bisque)	$4.40 Special Order
	3608F118-71	Trim, Door (rt) (white)	$4.80 Special Order
19	3608F119-71	Trim, Door (lt) (white)	$5.90 Special Order
	74009750	Trim, Door (lt) (bisque)	$4.40 Special Order
	74009746	Trim, Door (lt) (black)	$4.40 Special Order
20	WP98008544	Screw, Trim (4) (white) (Replaces: 74009540)	$9.00 Special Order
	WP74009541	Screw, Trim (4) (bisque)	$4.60 Special Order
21	74009688	Support, Glass (bisque)	Call for Availability
	WP3807F708-71	Support, Glass (white)	$95.60  In-Stock Retail: $93.24
	74009686	Support, Glass (black)	Call for Availability
22	WP74009014	Double Side Tape (white)	$4.80 Special Order
	WP74009025	Double Side Tape (black)	$7.30 Special Order
23	WP74011778	Handle, Door (bisque)   (Replaces: 74011778)	$137.40  In-Stock Retail: $134.04
	WP74011767	Handle, Door (black)   (Replaces: 74011767)	$139.40 Special Order
	WP74011768	Handle, Door (white)   (Replaces: 74011768)	$138.00 Special Order

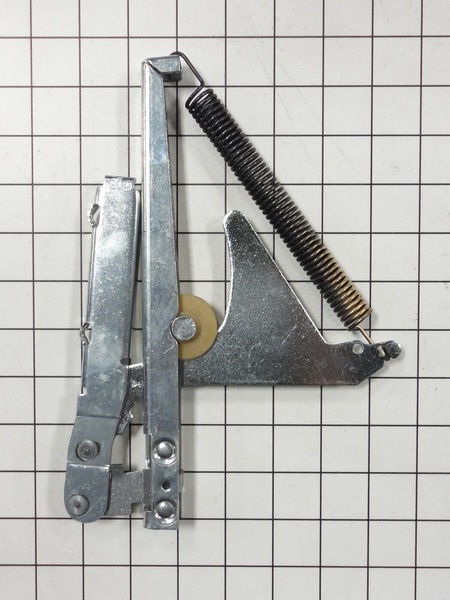

24	74007830	Hinge, Door (2)	Call for Availability
25	WP4159193	Screw (4)	$2.40  In-Stock Retail: $2.25
