Maytag MGR6751BDB19 Parts List

Popular Searches: (Click to search)    2oz  anti  black  bracket  burner  door  gasket  holder  module  orifice  paint  pressurized  screw  spark  spray  superior  tip  touch  white


Select a Diagram

01 - Cooktop Parts

02 - Control Panel Parts

03 - Manifold Parts

04 - Chassis Parts

05 - Upper Door Parts

06 - Lower Door Parts

07 - Rack Parts

08 - Optional Parts (not Included)

Select Diagram ... 01 - Cooktop Parts 02 - Control Panel Parts 03 - Manifold Parts 04 - Chassis Parts 05 - Upper Door Parts 06 - Lower Door Parts 07 - Rack Parts 08 - Optional Parts (not Included)

01 - Cooktop Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	8119P218-60	Diagram, Wiring	Call for Availability
	8101P623-60	Installation Instructions	Call for Availability
	8113P739-60	Owners Manual	Call for Availability
2	WPW10169983	Cap, Burner (black (lf))	$57.70 Special Order
	W10237747	Cap, Burner (white (lf))	$49.90 Special Order
	WPW10169984	Cap, Burner (black (lr/rr/rf)) (Replaces: W10169984)	$44.60 Special Order
	WPW10237743	Cap, Burner (white (lr/rr/rf))	$40.60 Special Order
3	W11189172	Glide, Main Top	$11.00 Special Order
4	WPW10406878	Burner (lf) (Replaces: W10406878 8286183)	$67.00  In-Stock Retail: $65.32
	WPW10406283	Burner (lr/rr/rf) (Replaces: W10194076)	$46.80  In-Stock Retail: $45.64
5	W10346931	Cooktop (black)	$41.60 Special Order
	W10346932	Cooktop (white)	$45.00 Special Order
6	8285469	Grommet, Knob (4)	$31.30 Special Order

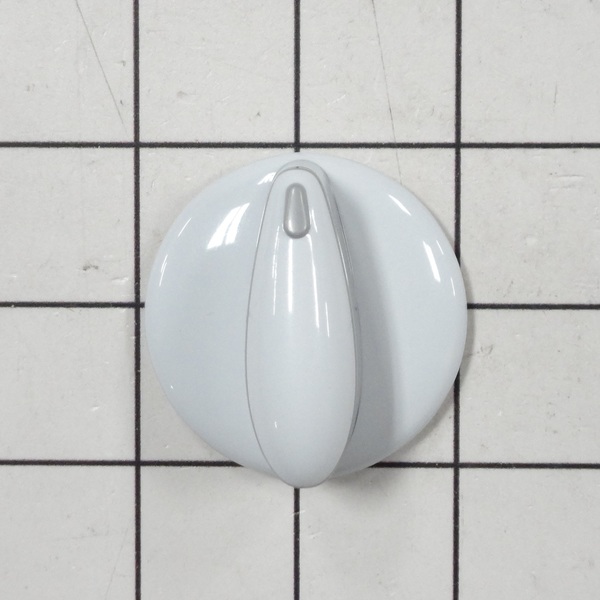

7	W10920307	Knob, Control (4) (white)	$14.20  In-Stock Retail: $13.84
	74010079	Knob, Control (4) (black)	$12.80 Special Order
8	7518P321-60	Grate, Burner (2) (incl. Bumpers) (black)	$126.10 Special Order
	7518P319-60	Grate, Burner (2) (incl. Bumpers) (gray)	$87.70 Special Order
9	WP3368921	Screw (8) (Replaces: 3368921)	$1.30  In-Stock Retail: $1.24
