Whirlpool KSRA25KNSS00 Parts List

Popular Searches: (Click to search)    and  cam  closer  combination  compressor  defrost  device  door  for  metal  only  overload  paint  pressurized  production  relay  spray  start  upper  white


Select a Diagram

01 - Cabinet Parts

02 - Refrigerator Liner Parts

03 - Refrigerator Shelf Parts

04 - Freezer Liner Parts

05 - Refrigerator Door Parts

06 - Freezer Door Parts

07 - Air Flow Parts

08 - Control Parts

09 - Unit Parts, Parts Not Illustrated

Select Diagram ... 01 - Cabinet Parts 02 - Refrigerator Liner Parts 03 - Refrigerator Shelf Parts 04 - Freezer Liner Parts 05 - Refrigerator Door Parts 06 - Freezer Door Parts 07 - Air Flow Parts 08 - Control Parts 09 - Unit Parts, Parts Not Illustrated

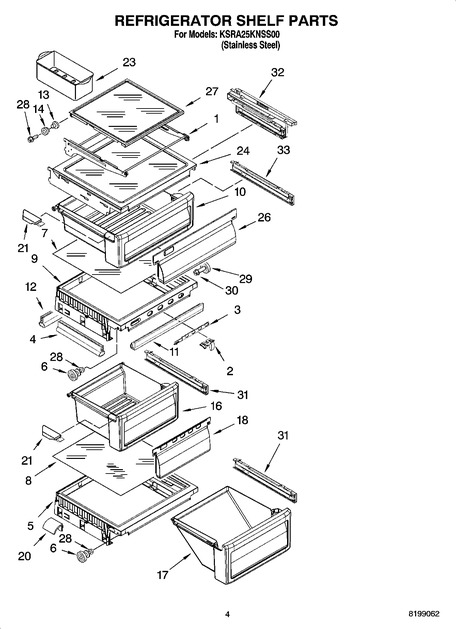

03 - Refrigerator Shelf Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	2301072	Frame Assembly	$76.20 Special Order
2	2301025	Button, Humidity	$48.30 Special Order
3	2301026	Slide, Humidity	$72.90 Special Order
4	2301117	Gasket, Side (2)	$91.20 Special Order
5	2301568	Cover, Meat Pan (includes Items	$134.40 Special Order
6	W11223328	Stud Assembly (Replaces: 2196485)	$8.70  In-Stock Retail: $8.47
7	WP2301028	Glass, Cover	$112.70 Special Order
8	WP2301028	Glass, Cover	$112.70 Special Order
9	2301567	Cover, Crisper (includes 2, 3, 4, 11, 12, 13, 14 & 19)	$177.80 Special Order
10	2301023	Snack Pan (includes 26)	Call for Availability
11	WP1125528	Gasket, Front	$98.20 Special Order
12	2301115	Gasket, Rear	$39.30 Special Order
13	WP2174478	Eyelet, Roller (Replaces: 2174478)	Call for Availability
14	4318078	Roller (Replaces: 2174388 2188212)	$34.80 Special Order
16	W10916292	Crisper Pan (includes 13,14, 18, 19 & 21)   (Replaces: 2301031)	$113.30  In-Stock Retail: $110.50
17	2301022	Meat Pan (includes 13, 14, 19 & 22)	$134.70 Special Order
18	2301001	Window, Crisper	$97.50 Special Order
20	2301126	Deflector	$37.50 Special Order
21	2301017	Cap, Crisper Pan (left Side)	Call for Availability
	2301016	Cap, Crisper Pan (right Side)	Call for Availability
23	W10136387A	Egg Bin	$10.70  In-Stock Retail: $10.39
24	2301084	Shelf & Roller Assembly	$90.10 Special Order
26	2301006	Window, Snack Pan	$94.70 Special Order
27	2301566	Shelf, Snack Pan	Call for Availability
28	WP3-24004-109	Screw	$4.80 Special Order
29	WP2196483	Stud Assembly   (Replaces: 2196483)	$6.40  In-Stock Retail: $6.19
30	WP3400806	Screw	$4.80 Special Order
31	2301549	Glide Assembly (left Side)	$94.90 Special Order
	2301548	Glide Assembly (right Side)	$174.20 Special Order
32	2301569	Support Assembly (right Side)	$90.60 Special Order
	WP2301570	Support Assembly (left Side)	Call for Availability
33	2301551	Glide Assy-pan (left Side)	$167.00 Special Order
	2301550	Glide Assy-pan (right Side)	$104.60 Special Order
NI	489439	Screw	$4.40 Special Order
