Whirlpool KGYL400WAL0 Parts List

Popular Searches: (Click to search)    alt  assembly  belt  coil  door  drive  fuse  main  motor  paint  pilot  position  roller  split  spray  strike  support  terminal  thermal  white


Select a Diagram

02 - Top And Console, Lit/optional

03 - Cabinet

04 - 694670 Burner Assembly

05 - Bulkhead

Select Diagram ... 02 - Top And Console, Lit/optional 03 - Cabinet 04 - 694670 Burner Assembly 05 - Bulkhead

02 - Top And Console, Lit/optional   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	3388889	Panel, Rear Console	Call for Availability
2	WP489069	Screw, 10-16 X 1/2	$4.80 Special Order
4	3354640	Cap, End (l.h.)	Call for Availability
5	WP688805	Clip   (Replaces: 688805)	$4.80  In-Stock Retail: $4.59
6	3354646	Cap, End (r.h.)	Call for Availability
7	3353685	Trim, Endcap (l.h.)	Call for Availability
9	3353678	Trim, Endcap (r.h.)	Call for Availability
10	339392V	Screen, Lint (Replaces: 337448)	$27.50  In-Stock Retail: $27.44
11	691205	Cover, Lint Screen	Call for Availability
12	WPW10044480	Hinge, L.h. (Replaces: 691194)	$4.80  In-Stock Retail: $4.59
	WPW10044470	Hinge, R.h. (Replaces: 3978605 691193)	$4.80  In-Stock Retail: $4.59
13	W11693756	Screw, 8-15 X 5/8	$8.70 Special Order
14	WP388326	Screw, 8-18 X 1	$4.80  In-Stock Retail: $4.59
15	WP694419	Buzzer, Mini   (Replaces: 694419)	$80.40  In-Stock Retail: $78.42
16	3393374	Top (white)	$95.20 Special Order
	3393375	Top (almond)	$126.60 Special Order
18	WP94614	Terminal (female)	$4.80 Special Order
19	487596	Washer	$4.10 Special Order
20	WP17258	Bumper, Lint Lid	$7.20 Special Order

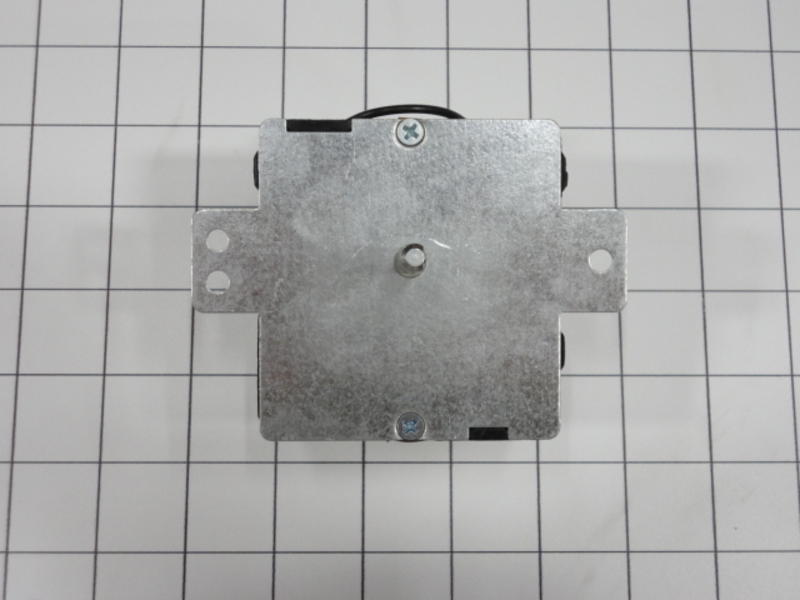

21	WP3394762	Timer Assembly, 60 Hz.	$207.10 Special Order
29	WP3390631	Screw	$4.80  In-Stock Retail: $4.59
30	3395992	Harness, Wiring	Call for Availability

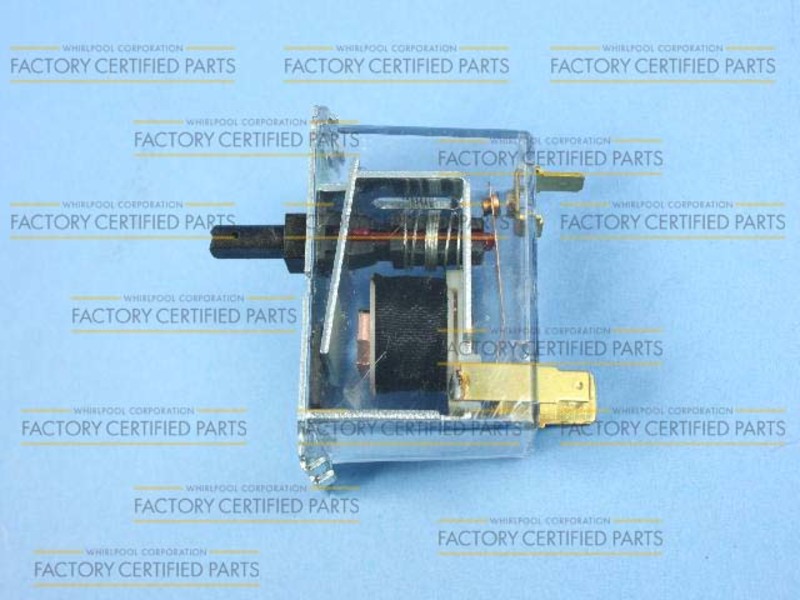

39	348314	Switch, Push To Start	Call for Availability
48	3396269	Timer Knob & Clip	$36.20 Special Order
53	3396009	Bracket, Control	Call for Availability
54	3395980	Panel, Control	Call for Availability
67	WP689559	Nut, Push-in (4)	$4.80 Special Order
72	690853	Wire, Ground	$32.00 Special Order
75	691707	Receptacle, 3-way	$13.00 Special Order
81	3390054	Knob, Push To Start	Call for Availability
82	358473	Nut, Push-in (2)	$4.50 Special Order
84	WP596797	Terminal, (male)	$4.80 Special Order
85	689180	Clip, Harness	Call for Availability
	LIT3387320	Guide, Dryer	Call for Availability
	WP72107	Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107)	$9.80  In-Stock Retail: $9.49
	LIT3392982	Guide, Use & Care	Call for Availability
	LIT3395322	Instructions, Installation	Call for Availability
	72017	Paint, Touch-up 1/2 Oz. (white)	$8.60  In-Stock Retail: $8.19
	978883	Almond (uncut)	$106.60 Special Order
	350956	Paint, Spray 13 Oz. (almond)	$16.80  In-Stock Retail: $16.34
	799344	Paint, Bulk (1 Qt.) (white) (uncut)	$128.20 Special Order
	350941	Leveler (thinner)	$6.90 Special Order
	350938	Paint, Pressurized Spray (12 Oz.) (primer,grey)	$27.40  In-Stock Retail: $26.69
	350930	Paint, Pressurized Spray (12 Oz.) White	$12.60  In-Stock Retail: $11.98
	LIT3395961	List, Service Parts	Call for Availability
