Maytag MER6775BAB Parts List

Popular Searches: (Click to search)    1200w  anti  asy  bake  bracket  broil  door  element  gasket  halogen  handle  hinge  long  lower  oven  pass  rack  sensor  tip  upper


Select a Diagram

01 - Body

02 - Control Panel/top Assembly

03 - Door (lower)

04 - Door (upper)

05 - Oven

06 - Supplemental Information

07 - Wiring Information

Select Diagram ... 01 - Body 02 - Control Panel/top Assembly 03 - Door (lower) 04 - Door (upper) 05 - Oven 06 - Supplemental Information 07 - Wiring Information

02 - Control Panel/top Assembly   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	2602D346-09	Panel, Backguard (blk) (Series: 10)	$52.50 Special Order
2	74009052	Bracket, Clock (Series: 10)	Call for Availability
	W11233072	Screw (8ab1/2-ni) (Series: 10)	$8.70  In-Stock Retail: $8.47
3	W10769079	Control, H3 (elec) (Series: 10)	$338.40 Special Order
4	WP74004153	Light, Indicator (Series: 10)   (Replaces: 74004153)	$4.80 Special Order
5	WP7730P011-60	Lens, Indicator Light (Series: 10)	$3.50 Special Order
6	WP74003122	Switch, Infinite (dual) (Series: 10)   (Replaces: 74003122)	$70.30  In-Stock Retail: $68.56
	WP74008940	Switch, Infinite (flex) (Series: 10) (Replaces: 74008940)	$111.40  In-Stock Retail: $108.67
	WP74010824	Switch, Element (lrg) (Series: 10)	$100.70 Special Order
7	7403P985-60	Switch, Rocker W/shield (blk) (Series: 10)	$60.80 Special Order
8	WP74003976	Screw, Shoulder (Series: 10)	$4.80 Special Order
	74010202	Support, Backguard (lt-blk) (Series: 10)	$4.40 Special Order
	3807F733-70	Support, Backguard (rt-blk) (Series: 10)	$23.90 Special Order
	WP98008545	Screw (blk) (Series: 10)	$11.60  In-Stock Retail: $11.31
9	3604F405-51	Shield, Wire (Series: 10)	$8.10 Special Order
10	WP7101P338-60	Screw (8bx3/8-ni) (Series: 10)   (Replaces: 7101P338-60)	$4.40 Special Order
	4005F803-51	Cover, Backguard Wire (Series: 10)	$15.70 Special Order

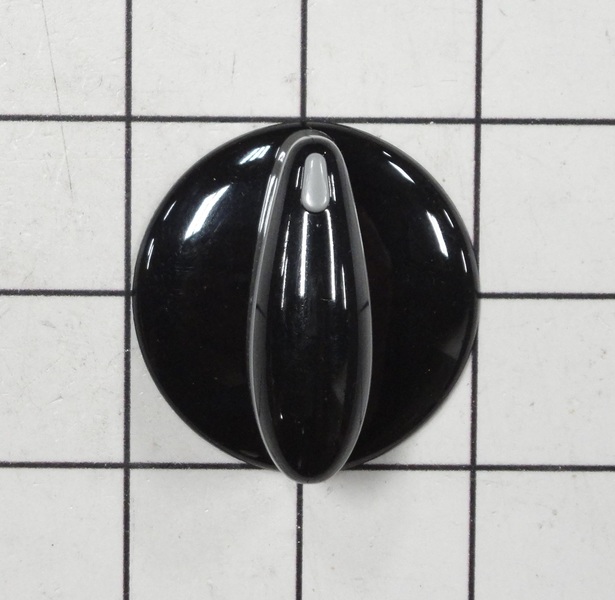

11	WP74008945	Knob (blk/chr) (Series: 10)	$12.80 Special Order
12	5706M616-09	Top Assembly (blk) (Series: 10)	Call for Availability
13	WP7101P309-60	Screw (Series: 10)	$4.80 Special Order
14	W11233072	Screw (8ab1/2-ni) (Series: 10)	$8.70  In-Stock Retail: $8.47
15	74009898	Element, Dual (2400w) (Series: 10)	$117.60  In-Stock Retail: $114.67
16	W10823711	Element (1200w) (Series: 10) (Replaces: 12002141 74008568)	$208.20  In-Stock Retail: $203.10
17	W10823719	Element, Triple (Series: 10) (Replaces: 74011844)	$216.00 Special Order
18	WP7406P497-60	Element, Warm (240v) (Series: 12)   (Replaces: 7406P497-60)	$99.60 Special Order
	WP74009899	Element, Warm (250v) (Series: 10)	$119.20 Special Order
19	8004P093-60	Support, Ceramic Element (Series: 10)	$7.70 Special Order
20	W11189172	Glide, Main Top (Series: 10)	$11.00 Special Order
21	3604F387-51	Shield, Rear Sight (Series: 10)	$4.40 Special Order
22	7728P494-60	Overlay (blk) (Series: 10)	Call for Availability
