01 - Cooktop Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	9759133	Safecooking Tips	Call for Availability
	9763467	Guide Easy Set	Call for Availability
	9763460	Installation Instructions	Call for Availability
	9763457	Use & Care Guide	Call for Availability
	9762784	Tech Sheet (english)	Call for Availability
	W10065210	Tech Sheet (french)	Call for Availability
	9757680	Anti-tip Instruct.	Call for Availability
	3191638	Safe Cooking Tips	Call for Availability
2	W10110471	Burner Box	$153.20 Special Order
3	9761784	Bracket, Mounting	$69.20 Special Order
4	W10106320	Cooktop (black)	$191.30 Special Order
	W10106330	Cooktop (biscuit)	$191.30 Special Order
	W10106340	Cooktop (white)	$191.30 Special Order
5	WP3196557	Screw	$4.80  In-Stock Retail: $4.59
6	9761738SS	Trim-cktop, Si (s.steel Lh)	$102.40 Special Order
	W10110681	Trim-cktop, Si (biscuit Lh)	$151.00 Special Order
	W10110682	Trim-cktop, Si (black Lh)	$184.90 Special Order
	W10110685	Trim-cktop, Si (white Rh)	$184.90 Special Order
	9761739BT	Trim-cktop, Si (biscuit Rh)	$102.40 Special Order
	9761739BL	Trim-cktop, Si (black Rh)	$102.40 Special Order
	9761739SS	Trim-cktop, Si (s.steel Rh)	$102.40 Special Order
	W10110680	Trim-cktop, Si (white Lh)	$176.10 Special Order
7	WP12990527	Screw	$4.80  In-Stock Retail: $4.59
9	9763445	Bracket, Burner	$36.20 Special Order
10	WP9756821	Support, Wiring	$44.50 Special Order
12	9761625SD	Grate, Burner (satin Cumberland)	$142.10 Special Order

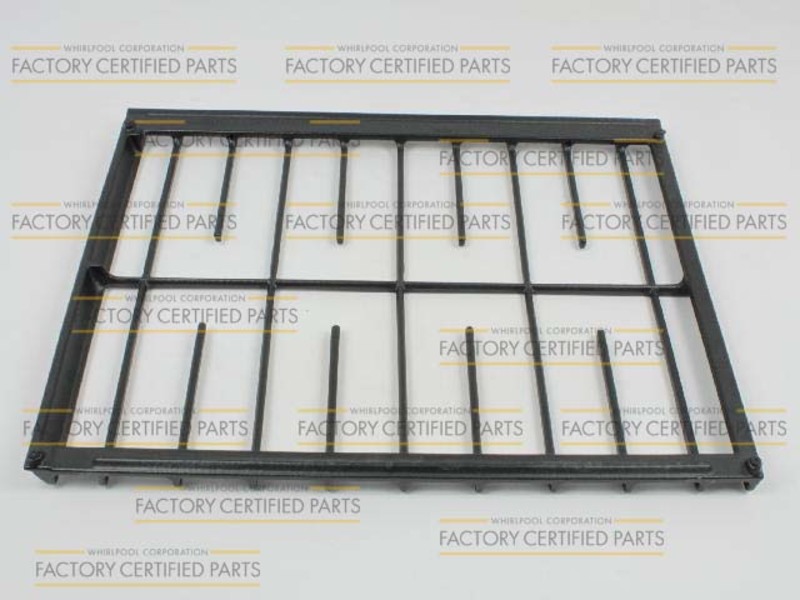

	9761625CB	Grate, Burner (coal Black)	Call for Availability
	9761625SN	Grate, Burner (satin Moleskin)	$77.40 Special Order
13	9761624SD	Grate, Brnr (tcb) (satin Cumberland)	$170.50 Special Order
	9761624CB	Grate, Brnr (tcb) (coal Black)	$79.20 Special Order
	9761624SN	Grate, Brnr (tcb) (satin Moleskin)	$77.40 Special Order
14	9761577	Cover, Backsplash	$52.20 Special Order
15	9763483BL	Backsplash (black)	$72.20 Special Order
	9763483GY	Backsplash (gray)	$40.50 Special Order
	W10109750	Backsplash (black)	$90.90 Special Order
	W10109740	Backsplash (white)	$89.10 Special Order
	W10109760	Backsplash (biscuit)	$74.20 Special Order
	W10109770	Backsplash (nickel Plated Gasket)	$94.90 Special Order
16	WP9759944	Thermostat (60c)   (Replaces: 9759944)	$126.90 Special Order
17	WP9760225BL	Vent, Center (black)   (Replaces: 9760225BL)	$42.90 Special Order
	9760225BT	Vent, Center (biscuit)	$47.60 Special Order
	9760225WH	Vent, Center (white)	$36.60 Special Order
18	WP9761557SD	Grate, Insert (tcb) (satin Cumberland)	$72.20 Special Order
	WP9761557CB	Grate, Insert (tcb) (coal Black)   (Replaces: 9761557CB)	$115.00  In-Stock Retail: $112.12
	9761557SN	Grate, Insert (tcb) (satin Moleskin)	Call for Availability
19	WP9761562SN	Cap, Burner 6k (rf, Lr) (satin Moleskin)	$163.20 Special Order
	WP8284669	Cap, Burner 6k (rf, Lr) (coal Black) (Replaces: 8284669)	$41.80  In-Stock Retail: $40.76
	9761563SN	Cap, Burner 12.5k (rr) (satin Moleskin)	$78.00 Special Order
	9761563CB	Cap, Burner 12.5k (rr) (coal Black)   (Replaces: 9761563CB)	$65.00 Special Order
	WP9761562SD	Cap, Burner 6k (rf, Lr) (satin Cumberland) (Replaces: 9761562SD)	$75.90  In-Stock Retail: $73.96
	9761563SD	Cap, Burner 12.5k (rr) (satin Cumberland)	$78.00 Special Order
20	WP4449809	Screw (Replaces: 4449809)	$4.80 Special Order
21	W10491985	Screw (Replaces: 3196160)	$4.80  In-Stock Retail: $4.59
22	WPW10128446	Orifice Holder (small (2))	$68.20  In-Stock Retail: $66.50
	WPW10128455	Orifice Holder (large)	$70.90 Special Order
23	9759627	Cover, Cktp Rear	$65.60 Special Order
24	WP9763436	Cover, Top Rear	$86.60 Special Order
25	WPW10406797	Head, Burner (large) (Replaces: 8286182)	$55.80  In-Stock Retail: $54.36
	WPW10406243	Head, Burner (small (2)) (Replaces: 8286181)	$24.40  In-Stock Retail: $23.75
26	W10109920	Gasket (tape)	$37.50 Special Order
27	9761749BT	Glass, Backsplash (biscuit)	$134.90 Special Order
	9761749WH	Glass, Backsplash (white)	$145.90 Special Order
	9761749BL	Glass, Backsplash (black)	$109.20 Special Order
28	9762768	Clip, Retainer	$34.50 Special Order
