Maytag MDG8400AWW Parts List

Popular Searches: (Click to search)    assembly  assy  bearing  belt  blower  coil  gas  idler  igniter  kit  motor  multi  radiant  roller  secondary  sensor  temp  thermostat  tumbler  valve


Select a Diagram

01 - Cabinet

02 - Control Panel

03 - Door

04 - Gas Valve

05 - Heater

06 - Motor Drive

07 - Supplemental Information

08 - Tumbler

09 - Wiring Information

10 - Wiring Information

11 - Wiring Information

Select Diagram ... 01 - Cabinet 02 - Control Panel 03 - Door 04 - Gas Valve 05 - Heater 06 - Motor Drive 07 - Supplemental Information 08 - Tumbler 09 - Wiring Information 10 - Wiring Information 11 - Wiring Information

02 - Control Panel   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	8534058	Screw, Oval Ctsk Hd No.8 (Series: 10)	$6.70 Special Order
	33002730	Facia, Control Panel (wht) (Series: 10)	$47.70 Special Order
2	22004165	Timer Dial Skirt (wht) (Series: 10) (Replaces: 22003953)	Call for Availability
3	WP22003993	Timer Knob (blue) (wht) (Series: 10) (Replaces: 22003993)	$15.90  In-Stock Retail: $15.44
4	WP22003989	Timer Cap (chrome) Wht (Series: 10) (Replaces: 22003989)	$29.30 Special Order
5	22004050	Eng. Tol. Compensator (spacer) (Series: 10)	Call for Availability
	WP22003987	Control Knob (chrome) Wht (Series: 10) (Replaces: 22003987)	$36.70 Special Order
6	WP33002917	Screw (hex Head) (Series: 10)	$4.60 Special Order
7	33002732	Chime / Buzzer (Series: 10)	$25.40 Special Order

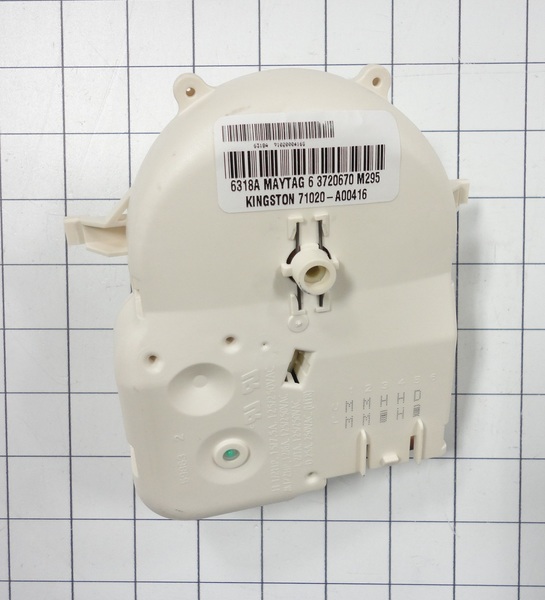

	WP33002808	Timer (Series: 16) (Replaces: 33002808)	Call for Availability

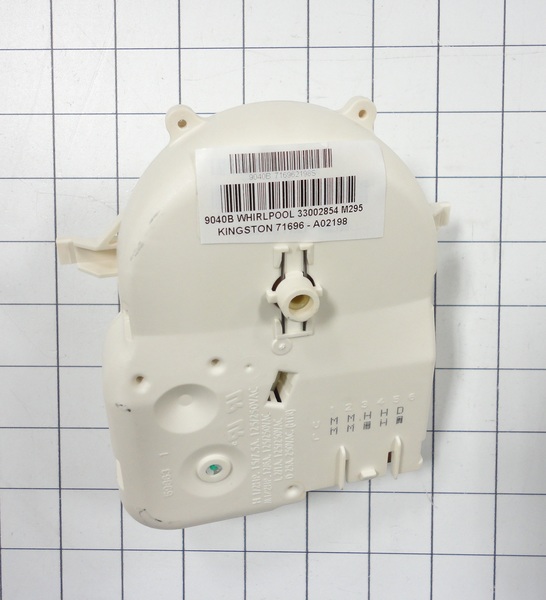

	WP33002854	Timer (Series: 10) (Replaces: 33002854)	Call for Availability
	WP33002855	Timer (Series: 19)   (Replaces: 33002855)	Call for Availability
	33002871	Switch, 4 Position (Series: 23)	$7.10 Special Order
	33002743	4 Position Chime Switch (Series: 10)	$21.60 Special Order
8	33002738	Dryer Switch Support (Series: 10)	$38.30 Special Order
9	22003960	Console Housing (wht) (Series: 10)	$31.80 Special Order

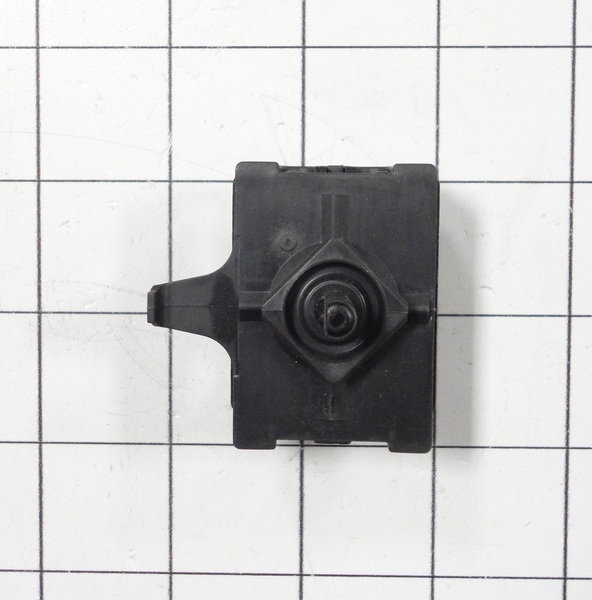

10	33002724	Rotary Infinite Temp. Switch (Series: 10)	Call for Availability
11	WP74010226	Switch, Rocker (wht) (Series: 10)	$60.50 Special Order
12	8534058	Screw, Oval Ctsk Hd No.8 (Series: 10)	$6.70 Special Order
13	WP33002905	Sensor Assy (chime & Dryness) (Series: 23)   (Replaces: 33002905)	Call for Availability
	WP33002734	3 Light Dryness Display (Series: 10)   (Replaces: 33002734)	$67.50 Special Order
	WP33002917	Screw (hex Head) (Series: 23)	$4.60 Special Order
14	33002746	Lens Carrier Assembly (wht) (Series: 10)	$4.40 Special Order
