Maytag MDG26PCABG Parts List

Popular Searches: (Click to search)    assembly  assy  bearing  coil  door  gas  idler  igniter  kit  latch  motor  pulley  radiant  roller  secondary  sensor  shaft  switch  tumbler  valve


Select a Diagram

01 - Front

02 - Rear

03 - Pc Control Panel

04 - Pc Control Center

05 - Front Panel

06 - Tumbler

07 - Gas Valve

08 - Motor Drive, Blower & Base Frame

09 - Thermostats

Select Diagram ... 01 - Front 02 - Rear 03 - Pc Control Panel 04 - Pc Control Center 05 - Front Panel 06 - Tumbler 07 - Gas Valve 08 - Motor Drive, Blower & Base Frame 09 - Thermostats

03 - Pc Control Panel   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
001	WP90767	Screw (Series: A0)	$4.80  In-Stock Retail: $4.59

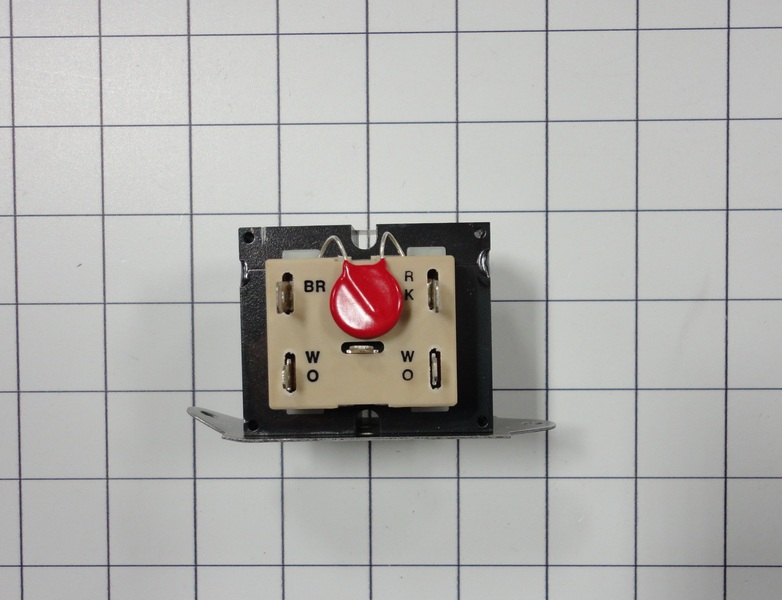

002	207766	Transformer (Series: A0)	$58.80 Special Order
	WP90767	Screw (Series: A0)	$4.80  In-Stock Retail: $4.59

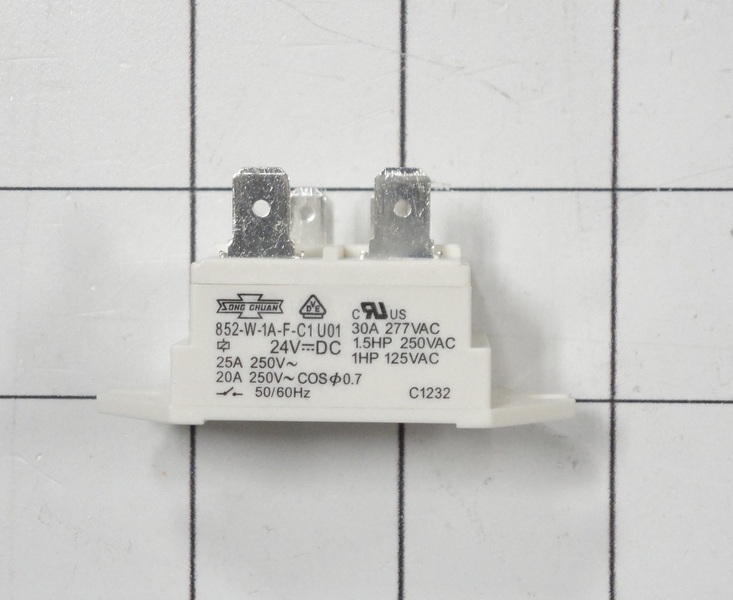

003	WPW10133335	Relay, Motor (Series: A0) (Replaces: 33002969 W10133335 206824)	Call for Availability
	WP90767	Screw (Series: A0)	$4.80  In-Stock Retail: $4.59
004	206828	Battery (Series: A0)	Call for Availability
005	215510	Support, Pc Board (Series: A0)	Call for Availability
	NLA	Circuit Board Assy (Series: A0)	Call for Availability
006	215003	Fastener (Series: A0)	Call for Availability
007	WP90767	Screw (Series: A0)	$4.80  In-Stock Retail: $4.59
	NLA	Control Cover (wht) (Series: A0)	Call for Availability

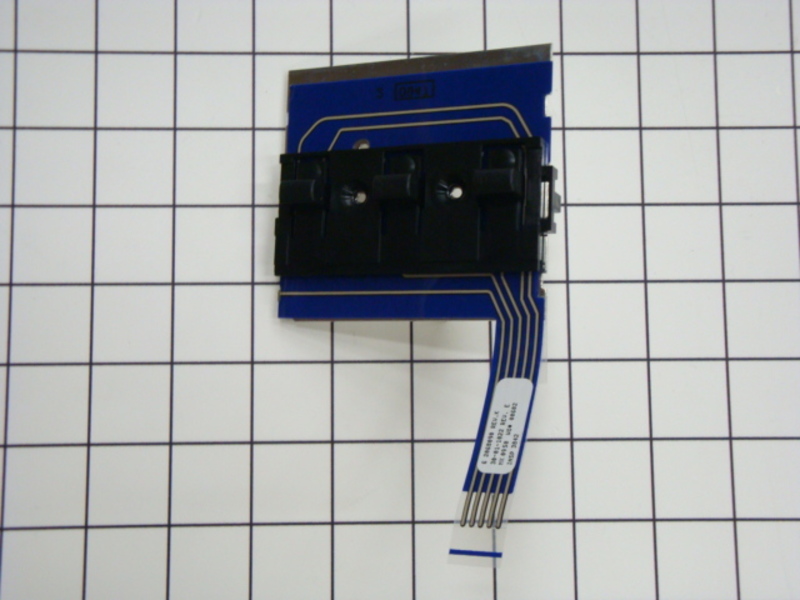

008	WP306694	Backup Plate With Switch (Series: A0) (Replaces: 306694)	$79.70 Special Order
009	WPW10424308	Pushbutton (Series: A0) (Replaces: 33002863 WPW10131113 215517)	$11.80  In-Stock Retail: $11.47
010	NLA	Back Up Plate (wht) (Series: A0)	Call for Availability
011	215515	Display Cover (Series: A0)	Call for Availability
012	WPW10131119	Screw, Torx (Series: A0)	$4.80 Special Order
013	W10756178	Screw (Series: A0)	$4.40 Special Order
014	NLA	Control Panel (Series: A0)	Call for Availability
015	215526	Screw (Series: A0)	$4.40 Special Order
016	307105	Top Cover Assy. (wht) (Series: A0)	Call for Availability
	NLA	(alm) (Series: A0)	Call for Availability
017	205810	Wire, Ground (Series: A0)	$4.40 Special Order
	WP489399	Screw (Series: A0)	$4.80 Special Order
018	Y215513	Spacer Circuit Board (Series: A0)	$4.40 Special Order
019	308368	Wire Harness (Series: A2)	$88.60 Special Order
	NLA	Wire Harness (Series: A0)	Call for Availability
	Y308513	Harness, Wire (Series: A5)	$97.00 Special Order
020	Y038227	Torx Bit (tx20h) (Series: A0)	Call for Availability
