Maytag MDE6460AZW Parts List

Popular Searches: (Click to search)    assembly  baffle  bearing  belt  bracket  door  filter  fuse  idler  kit  lint  roller  seal  shaft  short  switch  tall  thermal  tumbler  watt


Select a Diagram

01 - Cabinet

02 - Control Panel

03 - Door

04 - Heater

05 - Motor Drive

06 - Supplemental Information

07 - Tumbler

08 - Wiring Information

Select Diagram ... 01 - Cabinet 02 - Control Panel 03 - Door 04 - Heater 05 - Motor Drive 06 - Supplemental Information 07 - Tumbler 08 - Wiring Information

02 - Control Panel   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	33002726	Facia, Control Panel (Series: 10)	Call for Availability

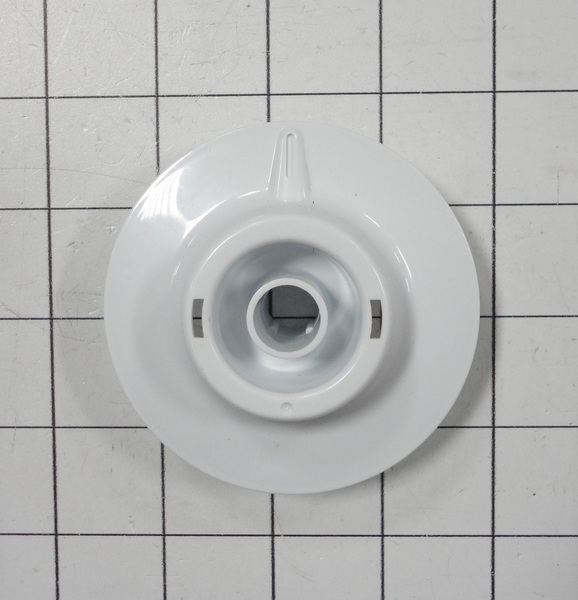

2	22004165	Timer Dial Skirt (wht) (Series: 10) (Replaces: 22003953)	Call for Availability

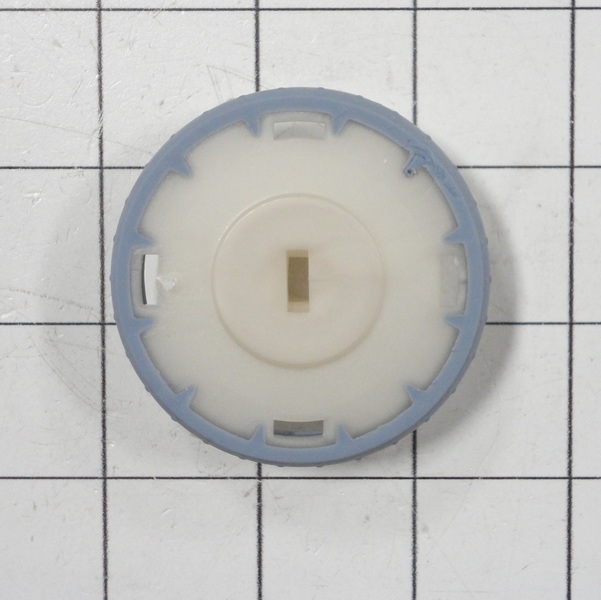

3	WP22003993	Timer Knob (blue) (wht) (Series: 10) (Replaces: 22003993)	$15.90  In-Stock Retail: $15.44

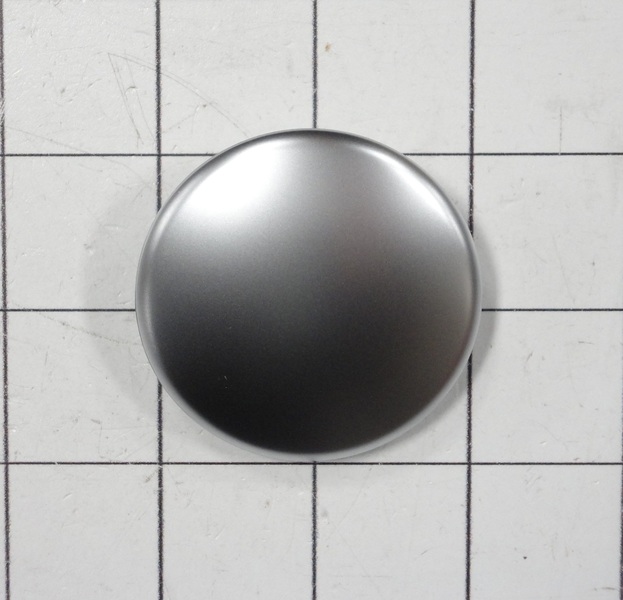

4	WP22003989	Timer Cap (chrome) Wht (Series: 10) (Replaces: 22003989)	$29.30 Special Order

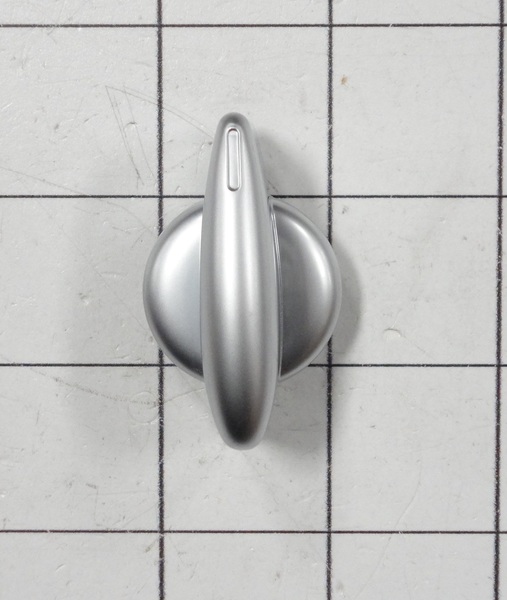

5	WP22003987	Control Knob (chrome) Wht (Series: 10) (Replaces: 22003987)	$36.70 Special Order
6	WP489128	Screw (Series: 10)	$6.70  In-Stock Retail: $6.50
8	33002738	Dryer Switch Support (Series: 10)	$38.30 Special Order
9	22003960	Console Housing (wht) (Series: 10)	$31.80 Special Order

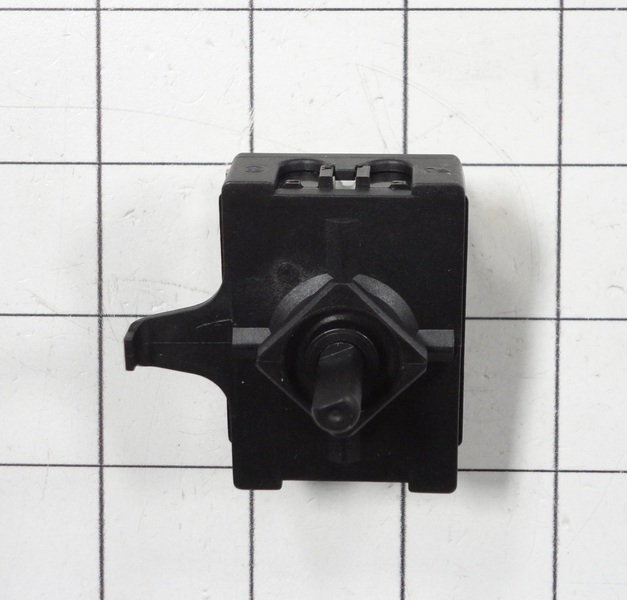

10	WP33002725	4 Pos. Rotary Temp. Switch (Series: 10) (Replaces: 33002725)	$115.40 Special Order

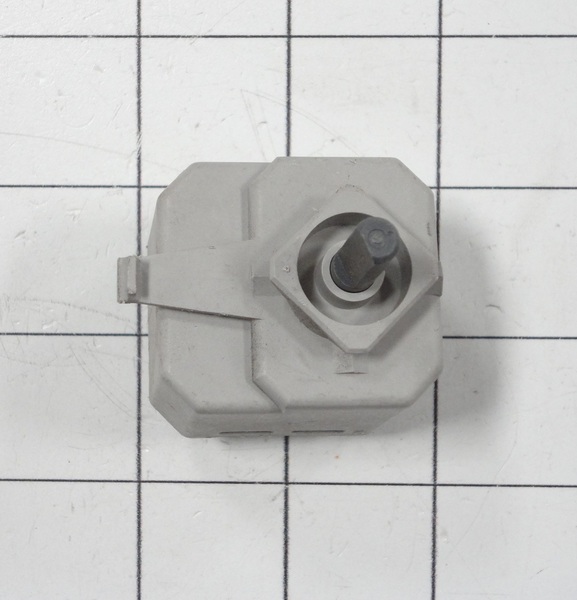

11	33002750	Buzzer Switch (Series: 10)	$8.00 Special Order
12	8534058	Screw, Oval Ctsk Hd No.8 (Series: 10)	$6.70 Special Order
