Whirlpool 4KUDA220T5 Parts List

Popular Searches: (Click to search)    2oz  937``  almond  assembly  black  clamp  dia  fill  flat  gasket  hose  lower  paint  pressurized  rack  spray  touch  valve  vinyl  white


Select a Diagram

01 - Door And Panel Parts

02 - Blower

03 - Control Panel, Lit/optional

04 - Pump And Motor

05 - Lower Washarm And Strainer

06 - Heater

07 - Fill And Overfill

08 - Upper Wash And Rinse

09 - Frame And Tank

10 - Upper Rack And Track

11 - Lower Rack

12 - Door And Latch

Select Diagram ... 01 - Door And Panel Parts 02 - Blower 03 - Control Panel, Lit/optional 04 - Pump And Motor 05 - Lower Washarm And Strainer 06 - Heater 07 - Fill And Overfill 08 - Upper Wash And Rinse 09 - Frame And Tank 10 - Upper Rack And Track 11 - Lower Rack 12 - Door And Latch

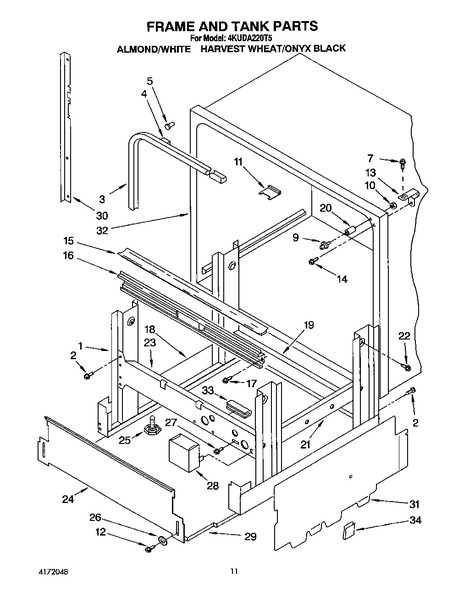

09 - Frame And Tank   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	4162908	Short Frame Assembly (includes Items 2, 18, 19, 21, & 23)	Call for Availability
2	WP693304	Screw	$4.80  In-Stock Retail: $4.59
3	WP4161631	Door Seal Assembly (includes Item 4)	$75.50 Special Order
4	4161608	Clip, Seal	$4.40 Special Order
5	4161626	Bumper, Door	$19.80 Special Order
7	4172012	Screw	Call for Availability
9	4172040	Actuator, Interlock Switch	$32.50 Special Order
10	4159115	Lock Nut	Call for Availability
11	4160092	Keeper, Latch	$9.50 Special Order
12	4159421	Screw, 10-16 X 3/8	Call for Availability
13	WP9741251	Bracket, Top Panel Anchor (Replaces: 4162167)	$4.80 Special Order
14	9740980	Screw	Call for Availability
15	4162306	Channel, Evaporation	$21.20 Special Order
16	675745	Support, Evaporation Channel   (Replaces: 4161564)	$123.20 Special Order
17	4162151	Screw, 10-32 X 1/2	Call for Availability
18	4171936	Frame Assembly (l.h.)	Call for Availability
19	4162867	Cross Frame, Rear	$17.50 Special Order
20	9740120	Sleeve, Actuator Spacer	Call for Availability
21	4172046	Frame Assembly (r.h.)	Call for Availability
22	4159443	Screw, 1/4-20 X 1/2	Call for Availability
23	4161368	Cross Frame, Front	Call for Availability
24	4171618	Kick Board	$53.00 Special Order
25	4162911	Foot, Leveling	Call for Availability
26	4159494	Lock Washer	$0.50 Special Order
27	595095	Screw, 10-32 X 3/8	$4.40 Special Order
28	4161369	Enclosure, Elec. Supply	Call for Availability
	W11233072	Screw, 8-18 X 1/2	$8.70  In-Stock Retail: $8.47
29	9740042	Panel, Bottom	Call for Availability
30	4171304	Trim, Tank (r.h.)	$57.10 Special Order
	9741233	Trim, Tank (screw)	Call for Availability
	4171305	Trim, Tank (l.h.)	Call for Availability
31	9740041	Panel, Side (r.h.)	Call for Availability
	9740040	Panel, Side (l.h.)	Call for Availability
32	9741213	Tank (serviced Complete With Frame)	$609.80 Special Order
33	3367669	Protector, Edge	$25.30 Special Order
34	9740033	Clip, Speed (8)	Call for Availability
