Maytag MDE12PSBDW Parts List

Popular Searches: (Click to search)    bearing  0  blower  clamp  cycling  deg  door  filter  idler  kit  lint  motor  pulley  roller  seal  shaft  switch  thermostat  tumbler  wheel


Select a Diagram

01 - Control Panel

02 - Control Center

03 - Cabinet-front

04 - Door

05 - Cabinet-rear

06 - Tumbler

07 - Heater

08 - Motor Drive

09 - Wiring Information

Select Diagram ... 01 - Control Panel 02 - Control Center 03 - Cabinet-front 04 - Door 05 - Cabinet-rear 06 - Tumbler 07 - Heater 08 - Motor Drive 09 - Wiring Information

02 - Control Center   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
001	WPW10529176	Vault, Coin (wht) (Series: 10)	$174.70 Special Order
002	22001810	Strap, Mounting (Series: 10)	$4.40 Special Order
003	WP90767	Screw, Mounting Strap (Series: 10)	$4.80  In-Stock Retail: $4.59
004	910309	Washer, Strap Screw (Series: 10)	$4.40 Special Order
005	22001870	Gasket, Coin Vault (wht) (Series: 10)	$4.40 Special Order
006	WP62739	Nut, Case Mounting (Series: 10)	$4.80 Special Order
007	WP8576635	Bolt, Locking (Series: 10)	$43.50  In-Stock Retail: $42.42
008	910387	Lockwasher, Locking Bolt (Series: 10)	$4.40 Special Order
009	NLA	Cam, Locking (Series: 10)	Call for Availability
010	WPW10131838	Switch, Sensor (Series: 10)	$16.20 Special Order
	3400409	Screw, Sensor Switch (Series: 10)	$4.40 Special Order
011	22001910	Door, Access (wht) (Series: 10)	$7.10 Special Order
012	WPW10247389	Switch Assy., Optic (Series: 10)   (Replaces: WP22001965 22001965)	$68.20  In-Stock Retail: $66.49
013	WP3395530	Screw, Optic Switch (Series: 10)	$4.80 Special Order
014	33001253	Bracket, Sensor Switch (Series: 10)	Call for Availability
015	WPW10137328	Clip, Bracket Screw (Series: 10) (Replaces: 211605)	Call for Availability
	WP90767	Screw, Switch Bracket (Series: 10)	$4.80  In-Stock Retail: $4.59
016	22001966	Harness, Sensor Switch (Series: 10)	Call for Availability

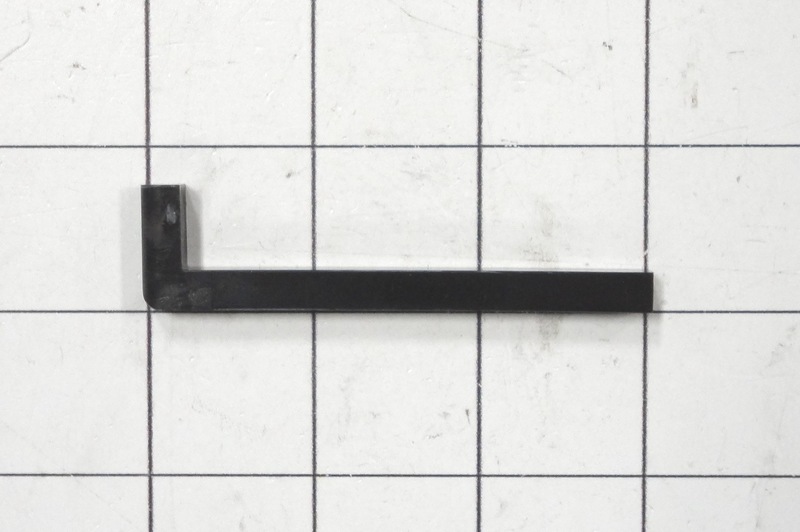

017	216442	Rod, Actuator (Series: 10)	Call for Availability
018	33001252	Spring, Switch Rod (Series: 10)	Call for Availability
019	22003416	Actuator Kit (Series: 10)	$18.70 Special Order
020	WPW10529176	Chute, Coin (Series: 10)	$174.70 Special Order
021	22001917	Plate, Adapter (wht) (Series: 10)	$21.40 Special Order
022	NLA	Brace, Coin Slide (Series: 10)	Call for Availability
