Maytag MDB2200AWZ Parts List

Popular Searches: (Click to search)    ++xxx  assembly  dispenser  door  grommet  hinge  hose  insulation  link  long  lwr  motor  pin  rack  seal  spring  switch  upr  wax  wheel


Select a Diagram

01 - Control Panel

02 - Door

03 - Pump & Motor

04 - Rinse Aid & Soap Dispenser

05 - Track & Rack Assembly

06 - Tub

07 - Wiring Information

Select Diagram ... 01 - Control Panel 02 - Door 03 - Pump & Motor 04 - Rinse Aid & Soap Dispenser 05 - Track & Rack Assembly 06 - Tub 07 - Wiring Information

06 - Tub   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WP902894	Seal, Door--++xxx (Series: 10) (Replaces: 902894)	$56.90  In-Stock Retail: $55.47

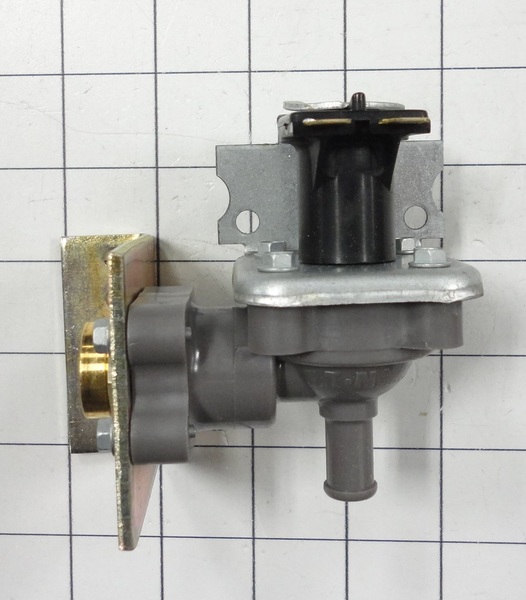

2	99001358	Valve, Water (Series: 10)	Call for Availability
	WP489128	Screw (Series: 10)	$6.70 Special Order
3	WP596669	Clamp, Spring (Series: 10)	$4.80 Special Order
4	912633	Hose, Injector (Series: 10)	Call for Availability
5	912533	Injector, Water (Series: 10)	$27.20 Special Order
6	WPW10548433	Clamp, Hose (1 1/4``) (Series: 10)	$1.60 Special Order
7	WP6-912366	Screw --++xxx (Series: 10)	$4.80 Special Order
	912640	Panel, Toe (blk) (Series: 10)	$82.40 Special Order
8	912648	Spring, Latch (Series: 10)	Call for Availability
	WP99001355	Hook, Latch (Series: 10)	$17.20 Special Order
	Y912873	Screw, Latch (Series: 10)	$4.80 Special Order
	903098	Door Latch Hook Assy (Series: 10)	Call for Availability
	912650	Retainer, Latch (Series: 10)	$4.40 Special Order
9	WP912647	Hose, Top Shower (Series: 10)   (Replaces: 912647)	Call for Availability
10	Y913095	Vent, Inlet (Series: 10)	$2.70 Special Order
11	910069	Washer, Tub Top (Series: 10)	$25.00 Special Order
12	912014	Lever, Actuator (Series: 10)	$38.30 Special Order
13	99002531	Pin, Lever Pivot (Series: 10)   (Replaces: 912015)	$6.20 Special Order
14	Y912686	Ring, Locking (Series: 10)	$26.30 Special Order
15	99001008	Clip, Thermostat (Series: 10)	$4.40 Special Order
	99001006	Thermostat, Limiting (Series: 10)	$21.70 Special Order
16	912654	Strap, Support (Series: 10)	$7.00 Special Order
17	Y913096	Tube, Inlet (Series: 10)	$4.40 Special Order
18	6-912651	Bracket, Adjusting (Series: 10)	$27.20 Special Order
19	912613	Screw, Adjusting Bracket (Series: 10)	$4.40 Special Order
20	99001333	Sleeve, Insulating (Series: 10)	$4.40 Special Order
	912645	Nut, Heating Element (Series: 10)	$4.40 Special Order
21	Y912659	Cap, Air Inlet (Series: 10)	$4.40 Special Order
	912622	Screw (Series: 10)	$4.40 Special Order
22	Y913079	O-ring, Heater (Series: 10)	$4.40 Special Order
23	903096	Element, Heating (Series: 10)	Call for Availability
	99001995	Element, Heating (830w/650w) (Series: 14)   (Replaces: 99001773)	$45.20 Special Order
24	Y912541	Bracket, Heating Element (Series: 10)	$4.40 Special Order
25	WP911265	Palnut, Float (Series: 10) (Replaces: 911265)	$4.80 Special Order
26	WPW10143258	Leg, Leveling (Series: 10)	$9.70  In-Stock Retail: $9.43
27	6-912563	Box, Terminal (Series: 10)	$27.10 Special Order
	4396672	Clamp, Cable (Series: 10)	$11.30  In-Stock Retail: $10.99
28	WP99002363	Float (Series: 10) (Replaces: 99001004)	$4.80 Special Order
29	3400409	Screw (Series: 10)	$4.40 Special Order
	WP99002560	Switch, Water Level Control (Series: 10) (Replaces: 99002560)	$45.20 Special Order
30	6-912656	Bracket, Water Level Switch (Series: 10)	$4.00 Special Order
	WP489128	Screw (Series: 10)	$6.70 Special Order
31	WP489491	Screw, Cabinet Mount (Series: 10)	$4.80 Special Order
32	911917	Fastener, Insulation (Series: 10)	$4.40 Special Order
33	99002408	Insulation, Tub (short) (Series: 10)	$21.50 Special Order
34	903730	Cord, Power (Series: 10)	$31.10 Special Order
35	911532	Strain Relief Grommet (Series: 10)	Call for Availability
36	WP99001586	Spinner, Top Wash (Series: 10)	$4.80 Special Order
	W10877037	Nut, Top Wash Spinner (Series: 10)	$4.80 Special Order
37	912644	Seal Ring, Injector (Series: 10)	$6.00 Special Order
