Whirlpool KECC567BWH0 Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)


Select a Diagram

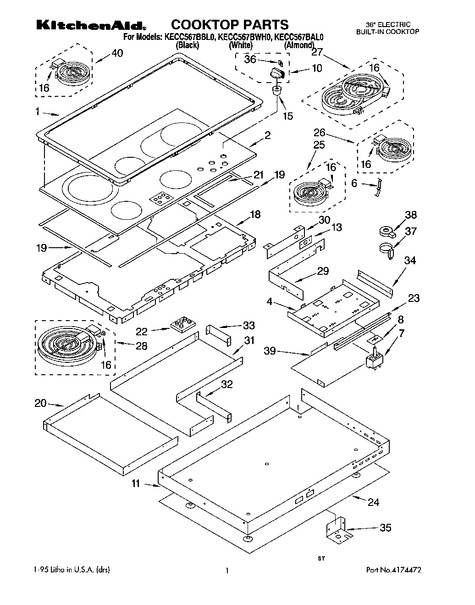

01 - Section   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
1 3187820 Trim Ring, Cooktop (black) Call for Availability
3187821 Trim Ring, Cooktop (white) Call for Availability
3187822 Trim Ring, Cooktop (almond) Call for Availability
2 3187817 Cooktop, Glass (white) $393.30
Special Order
3187816 Cooktop, Glass (black) $393.30
Special Order
3188896 Cooktop, Glass (almond) $393.30
Special Order
4 3188103 Bracket, Switch Mounting Call for Availability
6 WP486754 Screw (8) $4.80
Special Order
3187707 Spring Locator (8) Call for Availability
7 W10900107 W10900107 Switch, Infinite (use W/1500 W Left Front Burner) $58.40
 In-Stock
Retail: $56.94
WP3188755 WP3188755 Switch, Infinite (use W/2200/1400w Right Rear Burner) $113.30
Special Order
W10900107 W10900107 Switch, Infinite (use W/1400w Center Rear) $58.40
 In-Stock
Retail: $56.94
8 WP486579 Screw $4.60
Special Order
3183956 Seal, Switch Shaft $31.10
Special Order
10 WP9750372FF WP9750372FF Knob, Control (4) (black) $13.80
Special Order
4211913 Knob, Control (4) (almond) $14.00
Special Order
WP9750372FW WP9750372FW Knob, Control (4) (white) $13.10
Special Order
11 3188103 Box, Burner Call for Availability
13 4159456 Screw $4.40
Special Order
3190669 Grommet $4.40
Special Order
15 3182435 Seal, Switch (5) $4.40
Special Order
16 3187536 Switch, Limiter (use W/3187188 Element) Call for Availability
3188784 Switch, Limiter (use W/3188781 Element) $98.70
Special Order
3187538 Switch, Limiter (use W/3188157 Element) $108.50
Special Order
3187528 Switch, Limiter (use W/3184952 Element) $97.20
Special Order
3187537 Switch, Limiter (use W/3187119 Element) $98.70
Special Order
18 3188104 Plate, Backer Call for Availability
19 3188854 Seal, Silicone (large (2)) $16.30
Special Order
3190666 Seal, Silicone (small (2)) $16.30
Special Order
20 4159456 Screw $4.40
Special Order
3187753 Shield, Heat Call for Availability
21 3190666 Seal, Silicone (11 In.) $16.30
Special Order
3190666 Seal, Silicone (8 In.) $16.30
Special Order
22 3188782 Lamp, Hot Surface Indicator Call for Availability
4168863 Screw $4.40
Special Order
23 4159456 Screw $4.40
Special Order
3189152 Bracket, Stiffening Call for Availability
24 4159456 Screw $4.40
Special Order
3189123 Shield, Heat Call for Availability
25 3188157 1200w Left Front $259.70
Special Order
26 8185662 8185662 1400w Center Rear
(Replaces: 3184952) 		$96.20
Special Order
27 3187119 2200/1400w Right Rear $184.50
Special Order
28 W10823694 W10823694 2400/1000 Left Rear $208.20
 In-Stock
Retail: $203.10
29 4159456 Screw $4.40
Special Order
3188876 Shield, Heat Call for Availability
30 3189175 Bracket, L Call for Availability
4159456 Screw $4.40
Special Order
31 3188309 Shield, Heat Call for Availability
32 4159456 Screw $4.40
Special Order
3188158 Plate, Interior Call for Availability
33 3189159 Plate, End Call for Availability
4159456 Screw $4.40
Special Order
34 3189036 Plate Louver Call for Availability
4159456 Screw $4.40
Special Order
35 3189273 Cover, Conduit Call for Availability
36 9751376 Insert (black & White Model) Call for Availability
9751377 Insert (almond Model) Call for Availability
37 3188760 Housing, Backlight Call for Availability
WP486579 Screw $4.60
Special Order
38 3188761 Lens, Backlight Call for Availability
39 4159456 Screw $4.40
Special Order
3188786 Insulator Call for Availability
40 3188781 Element 1500w Right Front Call for Availability
