Maytag MAV7750AGW Parts List

Popular Searches: (Click to search)    assembly  assy  bearing  belt  cam  cap  drive  dust  hub  kit  nut  pulley  pump  replacement  seal  snubber  thrust  tran  trans  tub


Select a Diagram

01 - Base

02 - Cabinet

03 - Control Panel

04 - Top

05 - Transmission

06 - Tub

07 - Wiring Information

Select Diagram ... 01 - Base 02 - Cabinet 03 - Control Panel 04 - Top 05 - Transmission 06 - Tub 07 - Wiring Information

03 - Control Panel   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WP22001664	Timer Knob Insert/cap (wht) (Series: 10) (Replaces: 22001664)	$4.80  In-Stock Retail: $4.59
2	22002997	Pin, Locking (Series: 10)	Call for Availability
3	22002996	Knob, Timer (gry) (Series: 10)	$3.10 Special Order
4	27001092	Skirt, Timer Knob (wht) (Series: 10)   (Replaces: 22002995)	Call for Availability

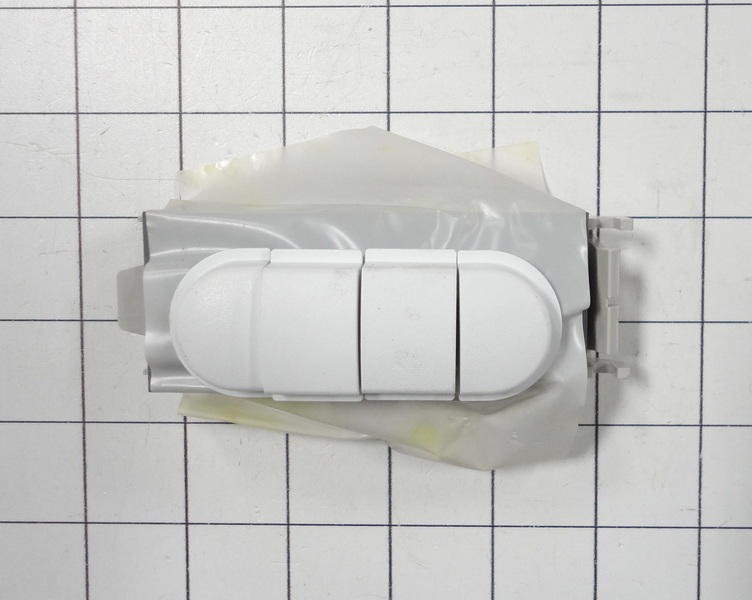

5	22003525	Switch, Temp. (4 Pos.-wht) (Series: 10)	$40.50 Special Order
6	22003590	Harness, Main Wire (Series: 10)	$76.60 Special Order
7	22003591	Panel, Control (wht) (Series: 10)	$43.30 Special Order
8	WP489128	Screw (Series: 10)	$6.70 Special Order
	33002256	Seal, Cabinet (export) (Series: 10)	$21.50 Special Order
	27001110	Console (wht) (Series: 10)	$39.70 Special Order

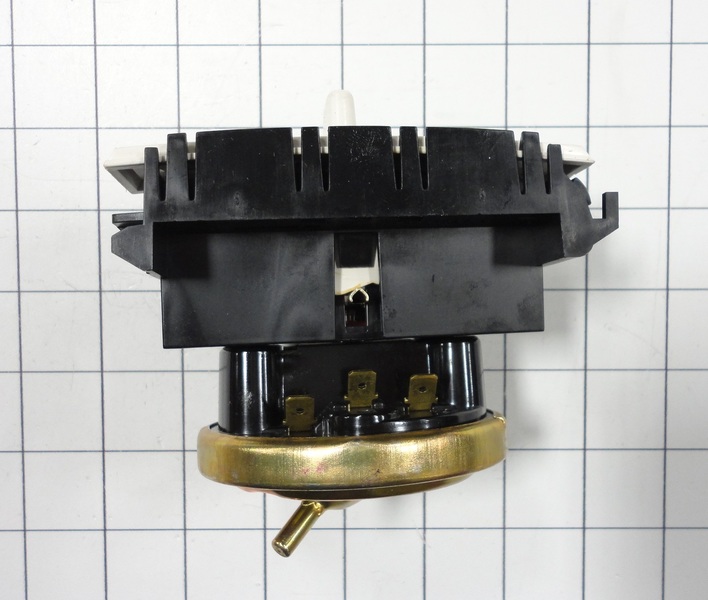

9	WP22002705	Switch, Pressure (Series: 10) (Replaces: 22002705)	Call for Availability
	22003461	Pad, Pressure Switch (Series: 10)	$0.30 Special Order
10	22003588	Switch, 4 Button (opt.exp.) (Series: 10)	$47.70 Special Order
11	22003422	Air Dome Hose (Series: 10)	$26.80 Special Order
12	22001789	Button, Switch (wht-mdl) (Series: 10)	$4.40 Special Order
13	22003523	Timer (Series: 10)	Call for Availability
14	22002406	Plug, Hole (Series: 10)	$0.60 Special Order
	33002253	Back, Console Panel (Series: 10)	$13.80 Special Order
	8534058	Screw (Series: 10)	$6.70 Special Order
15	22003003	Bracket, Atc / Timer (Series: 10)	$4.40 Special Order
16	22003530	Board, Control (Series: 10)	$25.80 Special Order
17	WP903115	Lock Light (Series: 10)	$4.80 Special Order
	WP22001948	Lens, Indicator Light (Series: 10) (Replaces: 22001948)	$7.80 Special Order
18	22003589	Switch, 2 Button (opt.exp.) (Series: 10)	$32.40 Special Order
19	16009485	Manual, Service-no Refund (Series: 10)	Call for Availability
