Maytag MAV7000AWQ Parts List

Popular Searches: (Click to search)    assembly  assy  bearing  belt  cam  cap  drive  dust  kit  lid  motor  nut  pulley  pump  replacement  seal  switch  thrust  trans  tub


Select a Diagram

01 - Base

02 - Cabinet

03 - Control Panel

04 - Top

05 - Transmission

06 - Tub

07 - Wiring Information

Select Diagram ... 01 - Base 02 - Cabinet 03 - Control Panel 04 - Top 05 - Transmission 06 - Tub 07 - Wiring Information

03 - Control Panel   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	33002347	Timer Knob Insert/cap (Series: 10)	$17.40  In-Stock Retail: $16.93
2	WPW10137328	Retainer, Timer Knob (Series: 10) (Replaces: 211605)	Call for Availability
3	WP22001659	Timer Knob - Grey (Series: 10) (Replaces: 22001659)	$15.00  In-Stock Retail: $14.61
4	WP211065	Spring, Timer Knob (Series: 10) (Replaces: 211065)	$4.50 Special Order
5	22002598	Bezel, Timer Dial (bsq) (Series: 10)	$1.10 Special Order
6	22002728	Wire Harness (Series: 10)	$97.10 Special Order
7	22002808	Panel, Control (bsq) (Series: 10)	$47.70 Special Order
8	33002327	Console (bsq) (Series: 10)	$36.80 Special Order

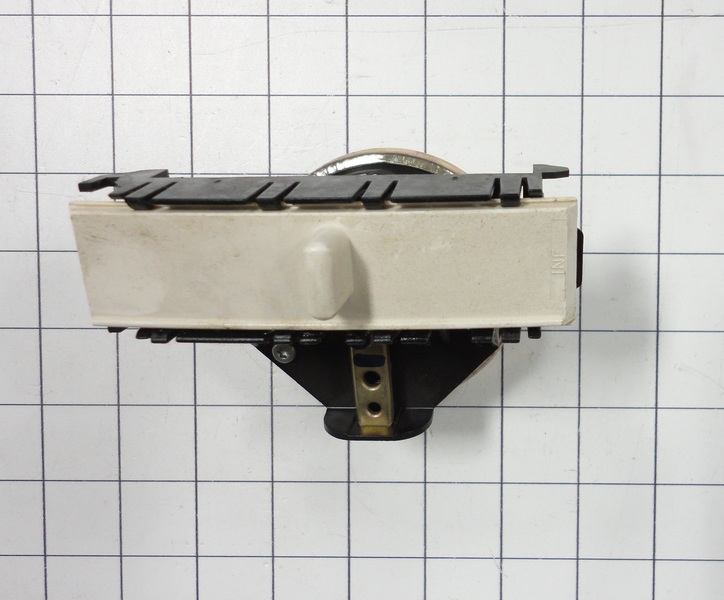

9	22002804	Switch, Pressure (bsq) (Series: 10)	$57.50 Special Order
	22003461	Pad, Pressure Switch (Series: 14)	$0.30 Special Order

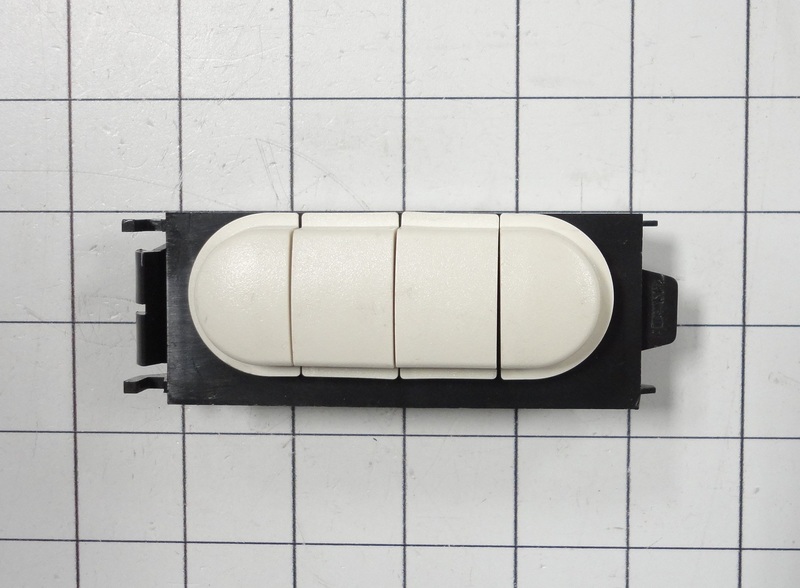

10	22002937	Switch, Temperature (4pos.bsq) (Series: 10)	$39.70 Special Order
	22002697	Button, Switch (bsq-end) (Series: 10)	$4.40 Special Order
	22002698	Button, Switch (bsq-mdl) (Series: 10)	$5.20 Special Order
11	22003422	Tube, Water Level Switch (Series: 10)	$26.80 Special Order
	22003422	Hose, Air Dome (Series: 14)	Call for Availability
	22003422	Air Dome Hose (Series: 12)	$26.80 Special Order
12	22002697	Button, Switch (bsq-end) (Series: 10)	$4.40 Special Order
	22002805	Switch, Option (bsq) (Series: 10)	$39.70 Special Order
	22002698	Button, Switch (bsq-mdl) (Series: 10)	$5.20 Special Order

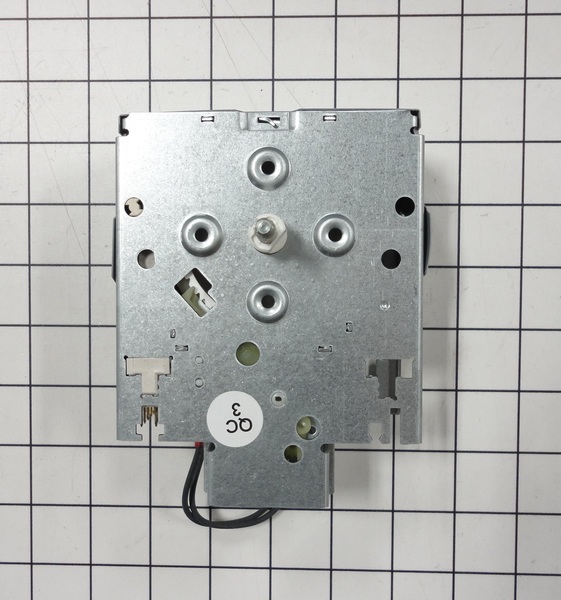

13	22002717	Timer (Series: 10)	Call for Availability
	WP3400094	Screw, Timer (Series: 10)	$4.50 Special Order
14	22002529	Console Back Panel (Series: 10)	$12.90 Special Order
15	WP22003906	Board, Control (Series: 10) (Replaces: 22002857)	$96.20 Special Order
16	22002856	Bracket, Mtg. (ctl. Board) (Series: 10)	$4.40 Special Order
17	WP22001948	Lens, Indicator Light (Series: 10) (Replaces: 22001948)	$7.30 Special Order
	WP903115	Lock Light (Series: 10)	$4.50 Special Order
18	22002807	Manual, Use & Care (french) (Series: 10)	Call for Availability
	16009485	Manual, Service-no Refund (Series: 10)	Call for Availability
	16000327	Guide, Quick Ref. - Maytag (Series: 10)	Call for Availability
	22002806	Manual, Use & Care (Series: 10)	$6.20 Special Order
