Maytag MAV4057AWW Parts List

Popular Searches: (Click to search)    assembly  assy  bearing  belt  cam  cap  drive  dust  hose  kit  lid  motor  pulley  pump  replacement  seal  switch  thrust  trans  tub


Select a Diagram

01 - Base

02 - Cabinet (prior Ser Pre 18)

03 - Cabinet (ser Pre 18 & After)

04 - Control Panel

05 - Top

06 - Transmission

07 - Tub

08 - Wiring Information

Select Diagram ... 01 - Base 02 - Cabinet (prior Ser Pre 18) 03 - Cabinet (ser Pre 18 & After) 04 - Control Panel 05 - Top 06 - Transmission 07 - Tub 08 - Wiring Information

04 - Control Panel   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WP22001664	Timer Knob Insert/cap (wht) (Series: 10) (Replaces: 22001664)	$4.80  In-Stock Retail: $4.59
2	22002997	Pin, Locking (Series: 18)	Call for Availability
	WPW10137328	Retainer, Timer Knob (Series: 10) (Replaces: 211605)	Call for Availability
3	22002996	Knob, Timer (gry) (Series: 18)	$3.10 Special Order
	WP22001659	Timer Knob - Grey (Series: 10) (Replaces: 22001659)	$15.90  In-Stock Retail: $15.49
4	W10124350	Not Required Part Or See Note (Series: 18)	Call for Availability
	WP211065	Spring, Timer Knob (Series: 10) (Replaces: 211065)	$4.80 Special Order
5	22001660	Dial Skirt - White (Series: 10)	$16.20 Special Order
	27001092	Skirt, Timer Knob (wht) (Series: 18)   (Replaces: 22002995)	Call for Availability
6	22002727	Wire Harness (Series: 10)	Call for Availability
	22003423	Harness, Wire (Series: 18)	$84.00 Special Order
7	22002948	Panel, Control (Series: 10)	$47.70 Special Order
8	27001110	Console (wht) (Series: 10)	$39.70 Special Order

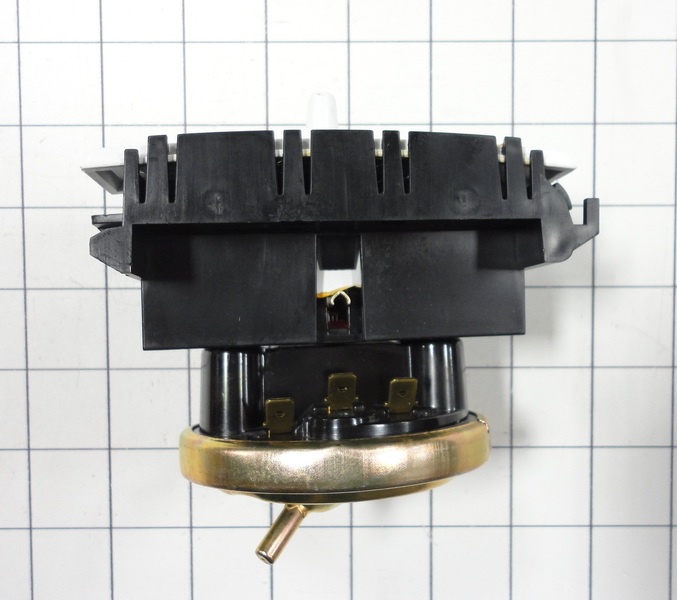

9	WP22002706	Switch, Pressure (Series: 10) (Replaces: 22002706)	Call for Availability
	22003461	Pad, Pressure Switch (Series: 14)	$0.30 Special Order
10	22002714	Switch, Temperature (Series: 10)	$40.50 Special Order
11	22003422	Tube, Water Level Switch (Series: 10)	$26.80 Special Order
	22003422	Hose, Air Dome (Series: 14)	Call for Availability
	22003422	Air Dome Hose (Series: 12)	$26.80 Special Order
12	22001788	Button, Switch (wht-end) (Series: 10)	$4.40 Special Order
	22001789	Button, Switch (wht-mdl) (Series: 10)	$4.40 Special Order

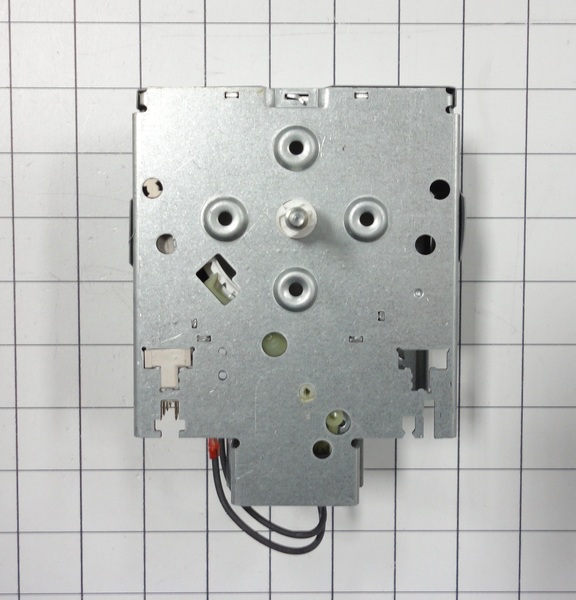

13	WP22002715	Timer (Series: 10)	$233.20 Special Order
	WP3400094	Screw, Timer (Series: 10)	$4.80 Special Order
14	22002529	Console Back Panel (Series: 10)	$12.90 Special Order
15	22002955	Manual, Use & Care (french) (Series: 10)	Call for Availability
	22002951	Manual, Use & Care (Series: 10)	Call for Availability
