Frigidaire GLES388DBA Parts List

Popular Searches: (Click to search)    6``  assy  block  brkt  broil  element  hinge  kit  latch  light  motor  oven  probe  receptacle  0  surface  switch  temp  terminal  1


Select a Diagram

03 - Backguard

05 - Body

07 - Top/drawer

09 - Door

01 - Cover

Select Diagram ... 03 - Backguard 05 - Body 07 - Top/drawer 09 - Door 01 - Cover

03 - Backguard   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
F14	318044825	Light,indicator ,125v ,(2)	$11.30 Special Order
16	318235021	Console,assy. ,black ,w/ End Caps   (Replaces: 318235001)	$239.60 Special Order
19	318239705	Panel,control Assy. ,black ,w/ Membrane	$263.50 Special Order
19A	318224403	Panel,control Mtg.	$140.90 Special Order

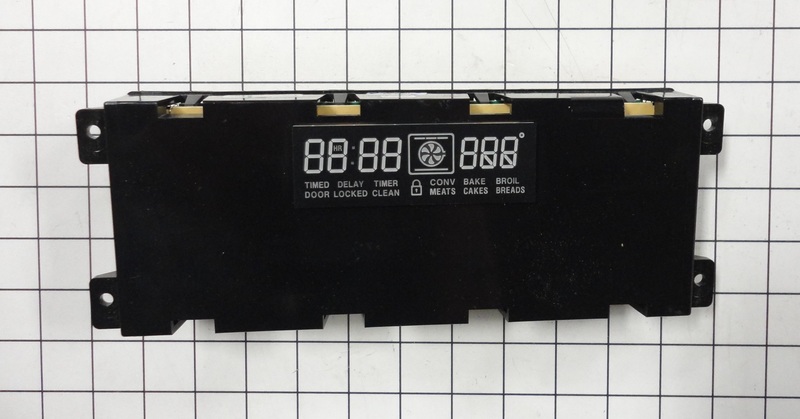

F20	316272202	Clock/timer,electronic ,es500/es550	Call for Availability
35	318233700	Retainer,control Panel ,black	$14.90 Special Order
36	318229301	Knob,control ,black	$37.40 Special Order
42	318224301	Trim,vent ,black ,bottom	$28.40 Special Order
F54	318120521	Switch,surface Unit	Call for Availability
F54A	318191023	Switch,infinite ,dual (Replaces: 903097-9010 318191023)	$66.70  In-Stock Retail: $64.99
69	5303323134	Screw,switch Mtg. ,8-32 X 0.188	$2.30  In-Stock Retail: $2.19
99A	318223900	Gasket,dark Grey	$54.40  In-Stock Retail: $52.99
NI	3201861	Screw,6 X 0.375	$0.50 Special Order
	08016432	Screw,truss Head,8-18 X 0.375	$1.60 Special Order
	5303211311	Screw,8 X 0.500	$10.30 Special Order
	5303311528	Screw,oval Hd Sq Dr ,6-20ab X 0.625 ,black	Call for Availability
	5303300265	Screw,8-18 X 0.500 ,chrome	$10.30 Special Order
