Maytag MAT12CSDGW Parts List

Popular Searches: (Click to search)    air  assembly  assy  bearing  bolt  damper  drain  gasket  hose  kit  lube  nut  pad  pak  poly  pump  repair  spring  tub  tube


Select a Diagram

01 - Control Panel

02 - Control Center

03 - Top

04 - Cabinet

05 - Tub

06 - Transmission

07 - Clutch & Brake

08 - Base

09 - Wiring Information

Select Diagram ... 01 - Control Panel 02 - Control Center 03 - Top 04 - Cabinet 05 - Tub 06 - Transmission 07 - Clutch & Brake 08 - Base 09 - Wiring Information

02 - Control Center   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
001	WP22002478	Vault, Coin (wht)cs (Series: 10)   (Replaces: 22002478)	$176.10 Special Order
002	22001810	Strap, Mounting (Series: 10)	$4.40 Special Order
003	WP90767	Screw (Series: 10)	$4.80  In-Stock Retail: $4.59
004	910309	Washer (Series: 10)	$4.40 Special Order
005	22001870	Gasket, Coin Vault (wht) (Series: 10)	$4.40 Special Order
006	WP62739	Nut (Series: 10)	$4.80 Special Order
007	WP8576635	Locking Bolt, Coin Slide (Series: 10)	$46.60  In-Stock Retail: $45.39
008	910387	Lock Washer (Series: 10)	$4.40 Special Order
009	Y052721	Nut (Series: 10)	$15.10 Special Order
010	22003677	Locking Cam (Series: 10)	$4.40 Special Order
	NLA	Cam, Locking (Series: 10)	Call for Availability

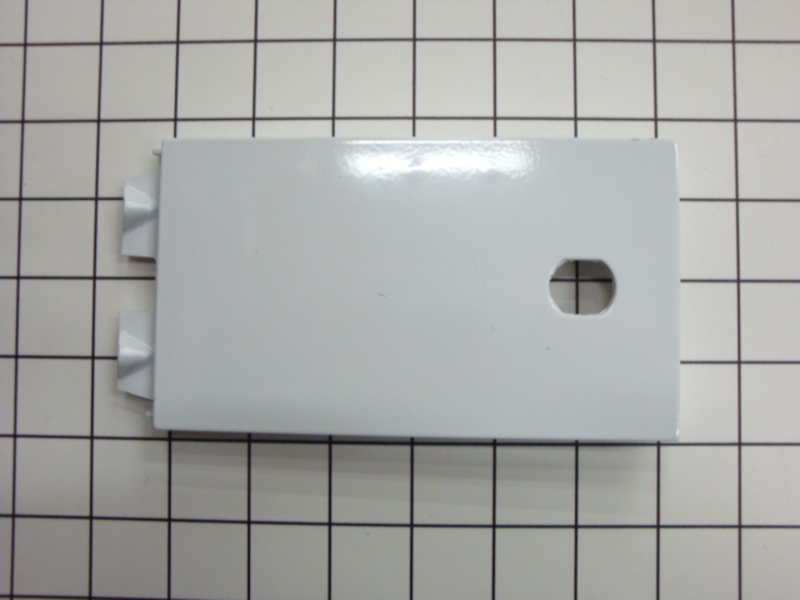

011	WP22003679	Timer Access Door Assy (white) (Series: 10) (Replaces: 22003679)	$81.10 Special Order
012	22002256	Wire Harness Kit (Series: 10)	Call for Availability
013	22001885	Housing, Connector (rt)----n (Series: 10)	Call for Availability
014	22001886	Housing, Connector (lt) (Series: 10)	$0.90 Special Order
015	22001086	Timer (Series: 10)	$139.00 Special Order
016	216442	Rod, Actuator (Series: 10)	Call for Availability
017	22001042	Pivot Arm, Timer (Series: 10)	Call for Availability
018	214663	Spring For Timer Lever (Series: 10)	Call for Availability
019	22001398	Retainer, Spring----na (Series: 10)	Call for Availability
020	WP98392	E Clip (Series: 10)	$0.50  In-Stock Retail: $0.47
021	216412	Screw (Series: 10)	Call for Availability
022	22001043	Bracket, Timer (Series: 10)	Call for Availability
023	22001811	Actuator Kit, Washer (Series: 10)	$3.60 Special Order
024	22003600	Actuation Door Kit (wht) (Series: 10)	$98.20 Special Order
	22002533	Weld Assy., Funnel (Series: 10)	$19.80 Special Order
