Maytag MAH6500AWW Parts List

Popular Searches: (Click to search)    assy  clamp  dispenser  door  hose  inch  kit  lamp  latch  lip  pack  pump  screw  seal  spinner  support  svc  tub  valve  watt


Select a Diagram

01 - Base, Motor & Motor Control

02 - Cabinet-front

03 - Cabinet-rear

04 - Control Panel & Top

05 - Door & Front Panel

06 - Door Shroud & Door Latch Assembly

07 - Outer Tub

08 - Spinner Assembly & Outer Tub Cover

09 - Supplemental Information

10 - Wiring Harness

12 - Wiring Information

Select Diagram ... 01 - Base, Motor & Motor Control 02 - Cabinet-front 03 - Cabinet-rear 04 - Control Panel & Top 05 - Door & Front Panel 06 - Door Shroud & Door Latch Assembly 07 - Outer Tub 08 - Spinner Assembly & Outer Tub Cover 09 - Supplemental Information 10 - Wiring Harness 12 - Wiring Information

05 - Door & Front Panel   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	22003242	Door, Outer W/medallion (wht) (Series: 10)	$71.90 Special Order
2	WP22003850	Vent Tube Assembly (Series: 10)	$58.10 Special Order
3	WP22003269	Door, Lock Hoop Assembly (Series: 10) (Replaces: 22003269)	$32.80  In-Stock Retail: $31.93
4	WP22003275	Door, Inner (wht) (Series: 10)   (Replaces: 22003275)	$108.30 Special Order
5	22002038	Clip, Door (double) (Series: 10)	$7.60 Special Order

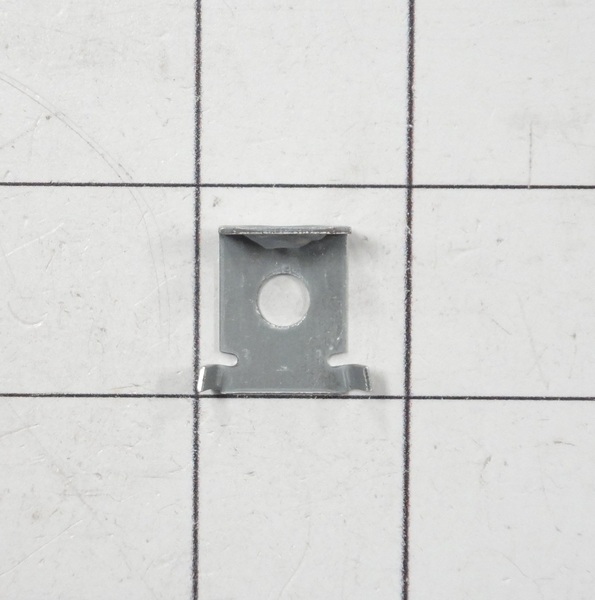

6	WP22002039	Clip, Door (single) (Series: 10) (Replaces: 22002039)	$6.50 Special Order
7	22002104	Wireframe (Series: 10)	$4.40 Special Order

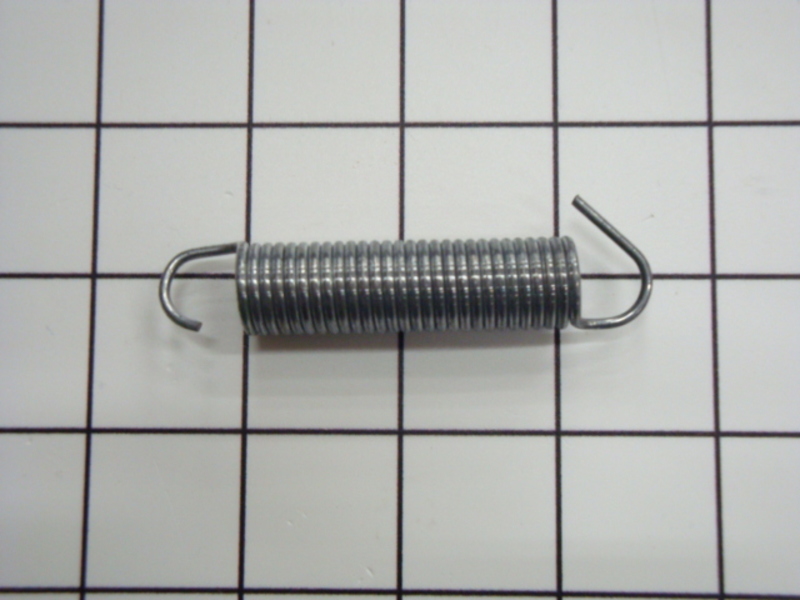

8	22002356	Spring, Plate (Series: 10)	$4.40 Special Order
9	22002094	Plate (Series: 10)	$21.10 Special Order
10	22002007	Screw (Series: 10)	$4.40 Special Order

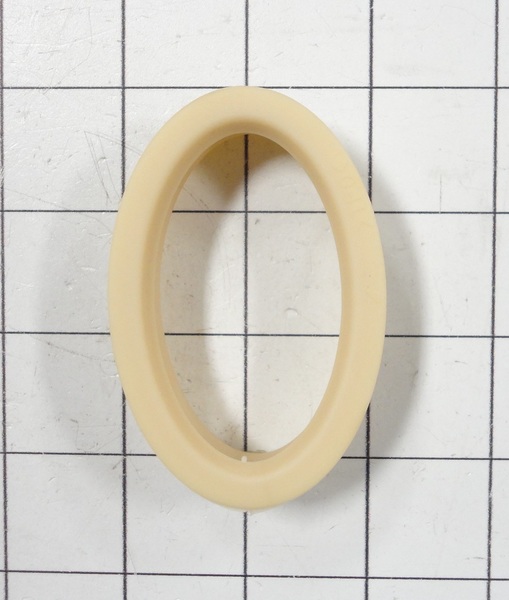

11	WP22003075	Grommet, Vent Tube (Series: 10)	$34.90 Special Order

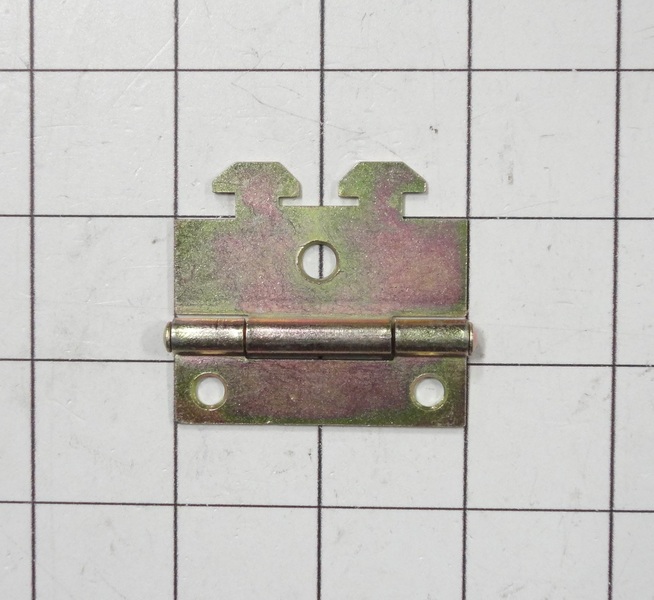

12	WP22002798	Hinge, Door (Series: 10) (Replaces: 22002798)	$52.70 Special Order
	12001994	Cover, Hinge (wht) (Series: 10) (Replaces: 22002095)	$39.90 Special Order
13	WP98006631	Screw (Series: 10)	$4.80 Special Order
15	22003512	Insulation, Cabinet (Series: 10)	$4.40 Special Order
	22002239	Clip, Lower Front Panel (Series: 10)	$4.40 Special Order
	22004428	Seal, Export (Series: 10)	$6.60 Special Order
	22003511	Insulation (Series: 10)	$4.40 Special Order
	22002836	Panel, Front (wht) (Series: 10)	$270.50 Special Order
	W11573574	Screw (Series: 10) (Replaces: 22001995)	$8.70  In-Stock Retail: $8.47
16	WP22002012	Screw, Hinge (Series: 10) (Replaces: 22002012)	$4.80 Special Order
17	22002244	Clip, Grounding (Series: 10)	$4.40 Special Order
