Maytag MAH6500AWW Parts List

Popular Searches: (Click to search)    assy  clamp  dispenser  door  hose  inch  kit  lamp  latch  lip  pack  pump  screw  seal  spinner  support  svc  tub  valve  watt


Select a Diagram

01 - Base, Motor & Motor Control

02 - Cabinet-front

03 - Cabinet-rear

04 - Control Panel & Top

05 - Door & Front Panel

06 - Door Shroud & Door Latch Assembly

07 - Outer Tub

08 - Spinner Assembly & Outer Tub Cover

09 - Supplemental Information

10 - Wiring Harness

12 - Wiring Information

Select Diagram ... 01 - Base, Motor & Motor Control 02 - Cabinet-front 03 - Cabinet-rear 04 - Control Panel & Top 05 - Door & Front Panel 06 - Door Shroud & Door Latch Assembly 07 - Outer Tub 08 - Spinner Assembly & Outer Tub Cover 09 - Supplemental Information 10 - Wiring Harness 12 - Wiring Information

04 - Control Panel & Top   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	22003806	Medallion, Console (wht) (Series: 10)	Call for Availability
	22004440	Led Console Assy-wht - As Pack (Series: 37)	$205.80 Special Order
	22003807	Medallion, Console (bsq) (Series: 10)	$101.60 Special Order
	22003910	Console W/membrane Switch-wht (Series: 10)	$211.30 Special Order
2	910187	Screw (Series: 10)	$4.40 Special Order
	8534058	Screw (Series: 10)	$6.70 Special Order
	22003581	Back, Console Panel (Series: 10)	$4.40 Special Order
3	22004180	Cover, Top (wht-as Pk) (Series: 10)	Call for Availability
4	22003276	Cover, Console Plug (wht) (Series: 10)	$4.40 Special Order

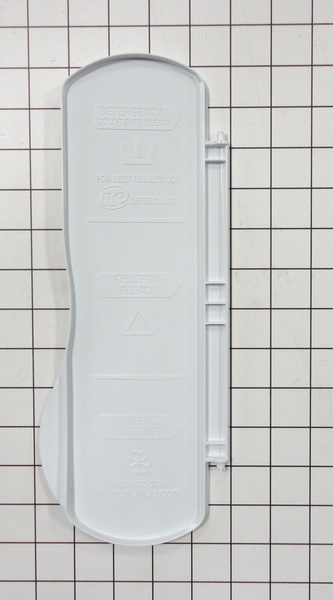

5	WP22004426	Lid, Dispenser (wht) (Series: 10) (Replaces: 22003274)	Call for Availability
6	22003848	Siphon Cup (Series: 10)	$28.30 Special Order
7	WP400021-1	Screw, Dispenser Lid (Series: 10)	$6.70  In-Stock Retail: $6.50
8	22003273	Bezel, Dispenser (wht) (Series: 10)	Call for Availability
9	WP596669	Hose Clamp - 1-1/16 Inch (Series: 10) (Replaces: 202515)	$4.80  In-Stock Retail: $4.59

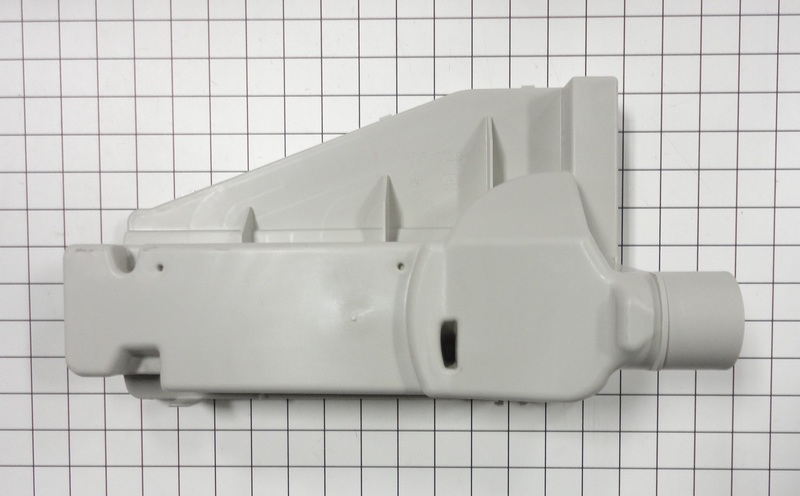

	WP22003844	Dispenser Bottom (Series: 10)	$62.80 Special Order

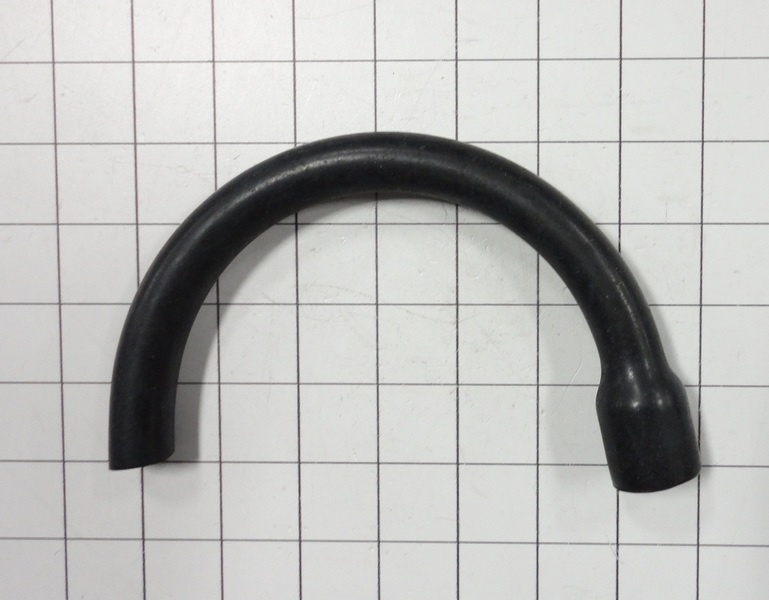

10	22003832	Fill Hose, Dispenser (Series: 10)	$32.80 Special Order
11	22003321	Grid, Dispenser (Series: 10)	$26.70 Special Order
12	WP285655	Clamp, Drain Hose (Series: 10)	$4.80  In-Stock Retail: $4.59
	WP285655	Clamp, Hose (Series: 10)	$4.80  In-Stock Retail: $4.59

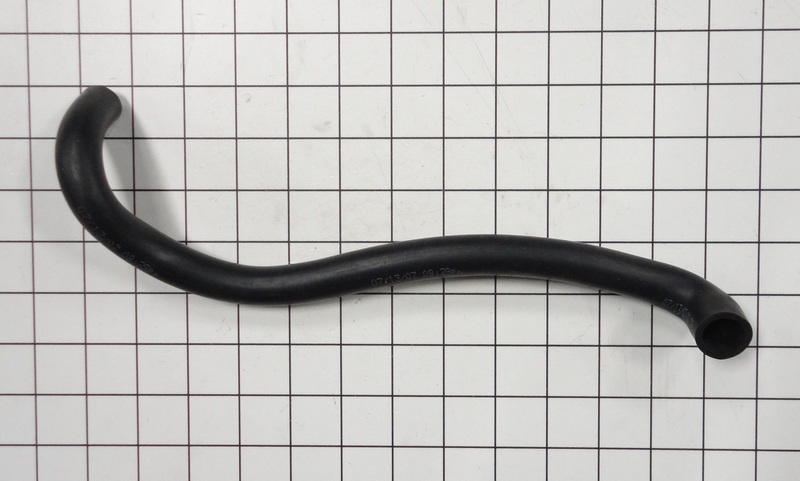

	22003833	Hose, Tub Shower (Series: 10)	$48.20 Special Order
	WP489503	Clamp - 15/16`` (Series: 10)	$7.10 Special Order
	22003832	Fill Hose, Dispenser (Series: 10)	$32.80 Special Order
13	22003845	Dispenser Cover (flume) (Series: 10)	Call for Availability
14	12001930	Dispenser Valve (Series: 10) (Replaces: 22003846)	$138.60  In-Stock Retail: $135.15
	12001930	Dispenser Valve Asy Kit (Series: 10)	$138.60  In-Stock Retail: $135.15
15	WP489128	Screw (Series: 10)	$6.70 Special Order
16	22002551	Hose, Bleach (Series: 10)	$18.20 Special Order
17	WP22004257	Control Board Led As Pk (Series: 24)   (Replaces: 22004257)	$222.90 Special Order
	22004447	Control Board, As Packed Sub (Series: 35)	$143.50 Special Order
	22004447	Control Board, As Packed Sub (Series: 37)	$143.50 Special Order
	WP22004257	Control Board (as Pack) (Series: 10)   (Replaces: 22003927)	$222.90 Special Order
18	WP22003849	Siphon Cap (Series: 10)	$51.90 Special Order
19	22004082	Seal Insertion Tool (Series: 10)	Call for Availability
