Maytag MAH4000BWW Parts List

Popular Searches: (Click to search)    assembly  assy  belt  conversion  drive  hose  kit  lamp  lip  motor  neptune  outer  pump  seal  spinner  support  svc  tub  watt  wax


Select a Diagram

01 - Base

02 - Cabinet-front

03 - Cabinet-rear

04 - Control Panel

05 - Door & Front Panel

06 - Door Shroud & Latch Assembly

07 - Motor & Motor Control

08 - Outer Tub

09 - Spinner Assembly & Outer Tub Cover

10 - Top

Select Diagram ... 01 - Base 02 - Cabinet-front 03 - Cabinet-rear 04 - Control Panel 05 - Door & Front Panel 06 - Door Shroud & Latch Assembly 07 - Motor & Motor Control 08 - Outer Tub 09 - Spinner Assembly & Outer Tub Cover 10 - Top

03 - Cabinet-rear   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	22002445	Label, Safety (Series: 10)	Call for Availability
	22002548	Cabinet Assy. (wht) (Series: 10)	Call for Availability
	22002444	Label, Energy (Series: 10)	Call for Availability

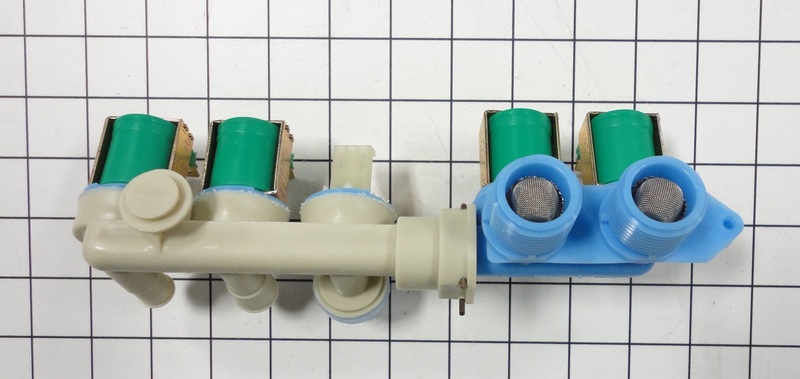

2	WP22002795	Valve, Water (Series: 10) (Replaces: 22002795)	$133.90 Special Order
3	22002436	Screw (Series: 10)	$4.40 Special Order
4	WP285655	Clamp, Stepless (Series: 10)	$4.80  In-Stock Retail: $4.59
5	WP74007164	Wire Tie, Twist Lock (Series: 10)	$5.40 Special Order
6	8539404	Tie, Cable (Series: 10)	$4.40 Special Order
	22002296	Hose, Injector (Series: 10)	$21.00 Special Order
7	WP596669	Clamp,hose-injec.hose To Valve (Series: 10)	$4.80  In-Stock Retail: $4.59
8	33002212	Bracket, Water Valve (Series: 10)	Call for Availability
9	WP489128	Screw (Series: 10)	$6.70  In-Stock Retail: $6.50
10	33002213	Strap, Drain Hose (Series: 10)	$4.40 Special Order
11	W11573574	Screw (Series: 10) (Replaces: 22001995)	$8.70  In-Stock Retail: $8.47
12	22002022	Spacer, Access Panel (Series: 10)	Call for Availability
13	22004355	Rear Access Panel (Series: 11)	$21.30 Special Order
	22002092	Panel, Access (Series: 10)	$18.80 Special Order
14	WP489128	Screw (Series: 11)	$6.70  In-Stock Retail: $6.50
	WP67006908	Screw (Series: 10)	$4.80 Special Order
15	WP489128	Screw (Series: 10)	$6.70  In-Stock Retail: $6.50
16	WP22002960	Strainer (Series: 10)	$4.80 Special Order
	60FFUSA	Inlet Hose Assy. (Series: 10)   (Replaces: WP89503 3805FF 202860)	Call for Availability
17	Y013783	Gasket, Inlet Hose (Series: 10)	$4.50 Special Order
18	22002704	Cover, Drain Hose (Series: 10)	$4.40 Special Order
19	W11573574	Screw (Series: 10) (Replaces: 22001995)	$8.70  In-Stock Retail: $8.47
20	WP285655	Clamp, Drain Hose (Series: 10)	$4.80  In-Stock Retail: $4.59
21	8539404	Tie, Cable (Series: 10)	$4.40 Special Order
	22002932	Clip, Drain Hose (Series: 10)	$4.40 Special Order
	12001807	Hose, Drain (Series: 10) (Replaces: 12001659 22002891)	$31.30 Special Order
22	W10850756	Screw----na (Series: 10)	$4.80  In-Stock Retail: $4.59
23	WP22002892	Retainer, Drain Hose (Series: 10)	$51.80 Special Order
24	WP22004095	Hinge, Plastic (Series: 10)	$28.10  In-Stock Retail: $27.35
	W11573574	Screw (Series: 10) (Replaces: 22001995)	$8.70  In-Stock Retail: $8.47
