Maytag MAH4000AWQ Parts List

Popular Searches: (Click to search)    assy  belt  boot  clamp  conversion  door  drain  drive  hose  inch  kit  lip  motor  neptune  seal  spinner  support  svc  watt  wax


Select a Diagram

01 - Base

02 - Cabinet-front

03 - Cabinet-rear

04 - Control Panel

05 - Door & Front Panel

06 - Door Shroud & Door Latch Assembly

07 - Motor & Motor Control

08 - Outer Tub

09 - Spinner Assembly & Outer Tub Cover

10 - Top

11 - Wiring Information (series 10)

12 - Wiring Information (series 11)

13 - Wiring Information (series 45+)

Select Diagram ... 01 - Base 02 - Cabinet-front 03 - Cabinet-rear 04 - Control Panel 05 - Door & Front Panel 06 - Door Shroud & Door Latch Assembly 07 - Motor & Motor Control 08 - Outer Tub 09 - Spinner Assembly & Outer Tub Cover 10 - Top 11 - Wiring Information (series 10) 12 - Wiring Information (series 11) 13 - Wiring Information (series 45+)

08 - Outer Tub   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	22004465	Tub Assembly (Series: 10) (Replaces: 22004080 22002907)	$537.70 Special Order
2	WP22003302	Switch, Inertial - Unbalance (Series: 10) (Replaces: 22002045)	Call for Availability
3	WP9740848	Screw (Series: 10)	$4.60 Special Order
4	12001798	Wire Harness, Unbalance /comm (Series: 10)	$4.80 Special Order
5	22001981	Ring, Retaining (Series: 10)	Call for Availability
6	22003615	Bolt (Series: 10)	Call for Availability
7	22002067	Washer, Counter Balance (Series: 10)	Call for Availability
8	22003616	Bolt (Series: 10)	$4.50 Special Order
9	22002102	Weight, Counter Balance (Series: 10)	$21.20 Special Order
10	WP22002083	Hose, Injector (Series: 10)   (Replaces: 22002083)	$87.20 Special Order
11	WP616099	Clamp, Injector Hose (Series: 10)	$4.40 Special Order
12	22002103	Clip, U (Series: 10)	$4.40 Special Order
13	22004310	Deflector, Water (Series: 10)	$9.90 Special Order
	22004310	Deflector, Water (Series: 42)	$9.90 Special Order
14	22002006	Clip (Series: 10)	Call for Availability
	22002583	Wire Wrap (Series: 10)	$7.60 Special Order
15	22002065	Nut, Counter Balance (Series: 10)	$4.40 Special Order
16	WP22002044	Switch, Tub Displacement (Series: 10) (Replaces: 22002044)	$55.00 Special Order
17	910187	Screw (Series: 10)	$4.40 Special Order
18	910187	Screw (Series: 10)	$4.40 Special Order
	22002797	Clip, Hose (saddle Horn) (Series: 10)	$15.40 Special Order
19	WP22002010	Hose, Air Dome (Series: 10)	$44.50 Special Order
	22002799	Clip, Snap (Series: 10)	$4.40 Special Order
20	WP596669	Hose Clamp - 1-1/16 Inch (Series: 10) (Replaces: 202515)	$4.80  In-Stock Retail: $4.59

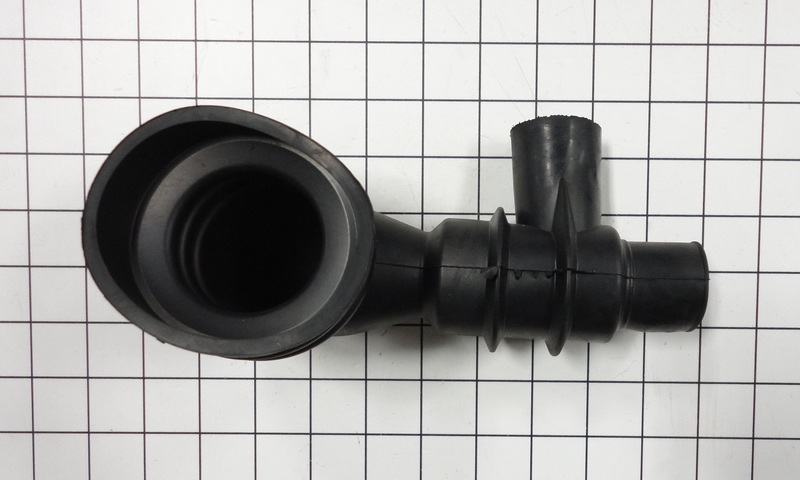

21	22002958	Hose, Outlet (tub) (Series: 42)	$37.90 Special Order
	22002958	Hose, Outlet W/filter (6 1/2``) (Series: 10) (Replaces: 22002793)	$37.90 Special Order
22	WP696392	Clamp, Sump Hose (Series: 10)	$4.40 Special Order
23	22002579	Front Weight Bracket (Series: 10)	$22.50 Special Order
24	22002008	Strap (Series: 10)	Call for Availability
25	WP22003937	Screw, Spinner (Series: 10) (Replaces: 22002057)	$4.60 Special Order
26	WP22003936	Washer (1 1/4``) (Series: 89)	$4.60 Special Order
	WP22003936	Washer, Spinner Shaft (Series: 10) (Replaces: 22002055)	$4.60 Special Order
27	22002315	Pulley, Spinner (Series: 10) (Replaces: 22001998)	$101.90 Special Order
28	12001788	Belt Kit, Drive (Series: 10) (Replaces: 12001435)	$27.80  In-Stock Retail: $27.76
29	22003225	Cushion (Series: 10)	$2.90 Special Order
30	22002791	Hose/clip Assy Recirc (64 1/2`` (Series: 10)	$30.90 Special Order
