Maytag MAH3000BGW Parts List

Popular Searches: (Click to search)    assy  belt  boot  conversion  door  drain  hose  isolator  kit  lip  motor  neptune  seal  spinner  support  svc  switch  tub  watt  wax


Select a Diagram

01 - Base

02 - Cabinet-front

03 - Cabinet-rear

04 - Control Panel

05 - Door & Front Panel

06 - Latch Assembly Parts List

07 - Motor & Motor Control

08 - Outer Tub

09 - Spinner Assembly & Outer Tub Cover

10 - Top

11 - Wiring Information

12 - Wiring Information

Select Diagram ... 01 - Base 02 - Cabinet-front 03 - Cabinet-rear 04 - Control Panel 05 - Door & Front Panel 06 - Latch Assembly Parts List 07 - Motor & Motor Control 08 - Outer Tub 09 - Spinner Assembly & Outer Tub Cover 10 - Top 11 - Wiring Information 12 - Wiring Information

03 - Cabinet-rear   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	22002445	Label, Safety (Series: 10)	Call for Availability
	W11573574	Screw (Series: 10) (Replaces: 22001995)	$8.70  In-Stock Retail: $8.47
	22002548	Cabinet Assy. (wht) (Series: 10)	Call for Availability
	22003639	Cabinet Assy. (wht As Pk) (Series: 72)	$102.50 Special Order
	22003582	Cabinet, Assy. (wht-as Pk) (Series: 67)	$172.20 Special Order
2	WP489503	Clamp - 15/16`` (Series: 10)	$7.10 Special Order

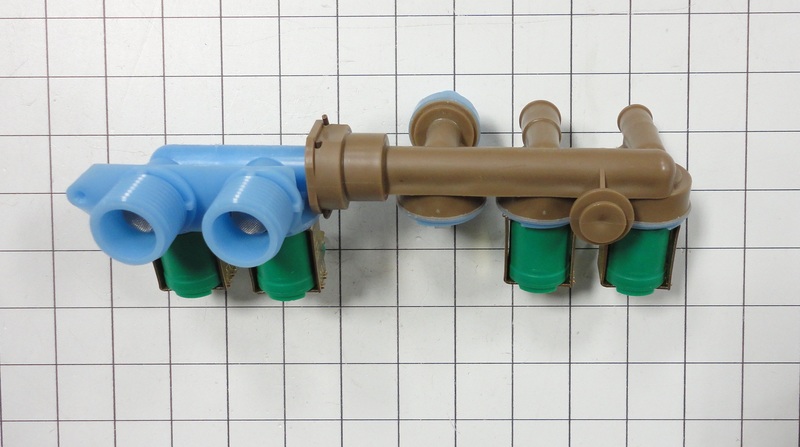

	WP22002903	Valve, Water (Series: 10)	$167.40 Special Order
3	22002436	Screw (Series: 10)	$4.40 Special Order
4	WP616099	Clamp, Stepless (Series: 10)	$4.40 Special Order
5	WP74007164	Wire Tie, Twist Lock (Series: 10)	$5.50 Special Order
6	Y00000000	See Note (Series: 10)	Call for Availability
	8539404	Tie, Cable (Series: 10)	$4.40 Special Order
	WP22002083	Hose, Injector (Series: 10)   (Replaces: 22002083)	$93.30 Special Order
7	WP616099	Clamp, Stepless (Series: 10)	$4.40 Special Order
8	33002212	Bracket, Water Valve (Series: 10)	Call for Availability
9	WP489128	Screw (Series: 10)	$6.70 Special Order
10	33002213	Rack, Hose (Series: 10)	$4.40 Special Order
11	W11573574	Screw (Series: 10) (Replaces: 22001995)	$8.70  In-Stock Retail: $8.47
12	22002022	Spacer, Access Panel (Series: 10)	Call for Availability
13	22002092	Panel, Access (Series: 10)	$18.80 Special Order
14	WP67006908	Screw (Series: 10)	$4.80 Special Order
15	WP489128	Screw (Series: 10)	$6.70 Special Order
16	35-3401	Hose, Inlet (hot) (Series: 10)	$41.90 Special Order
	WP22002960	Strainer, Washer Inlet (Series: 10)	$4.80 Special Order
17	Y013783	Gasket, Inlet Hose (Series: 10)	$4.50 Special Order
18	22002704	Cover, Drain Hose (Series: 10)	Call for Availability
19	W11573574	Screw (Series: 10) (Replaces: 22001995)	$8.70  In-Stock Retail: $8.47
20	WP285655	Clamp, Drain Hose (Series: 10)	$4.80  In-Stock Retail: $4.59
21	8539404	Tie, Cable (Series: 10)	$4.40 Special Order
	WP22002892	Retainer, Drain Hose (Series: 10)	$56.80 Special Order
	12001807	Hose, Drain (corr)(80 1/2``) (Series: 10) (Replaces: 22003319)	$33.50 Special Order
	12001807	Drain Hose Replacement(neptun) (Series: 10) (Replaces: 12001659)	$33.50 Special Order
22	W10850756	Screw----na (Series: 10)	$4.80  In-Stock Retail: $4.59
23	313363	Washer (Series: 10)	Call for Availability
24	35-3400	Hose, Inlet (cold) (Series: 10)	$40.70 Special Order
25	WP22004095	Hinge, Plastic (Series: 10)	$28.10 Special Order
26	22003540	Cord, Power (export) (Series: 10)	Call for Availability
27	216183	Grommet, Cord Export (Series: 10)	$4.40 Special Order
28	22004404	Adapter (australia) 10 Amp (Series: 10)	$15.90 Special Order
	22003543	Adapter (britian) 10 Amp (Series: 10)	$23.30 Special Order
	22003542	Adapter (gen Export) 10 Amp (Series: 10)	$22.30 Special Order
29	22003882	Cord Lock (10amp) (Series: 10)	$4.40 Special Order
