Maytag MAH3000AKW Parts List

Popular Searches: (Click to search)    assy  belt  boot  conversion  door  drain  drive  kit  lip  motor  neptune  pump  seal  shaft  sleeve  spinner  support  svc  watt  wax


Select a Diagram

01 - Base

02 - Cabinet-front

03 - Cabinet-rear

04 - Control Panel

05 - Door & Front Panel

06 - Door Shroud & Door Latch Assembly

07 - Motor & Motor Control

08 - Outer Tub

09 - Spinner Assembly & Outer Tub Cover

10 - Top

11 - Wiring Information

Select Diagram ... 01 - Base 02 - Cabinet-front 03 - Cabinet-rear 04 - Control Panel 05 - Door & Front Panel 06 - Door Shroud & Door Latch Assembly 07 - Motor & Motor Control 08 - Outer Tub 09 - Spinner Assembly & Outer Tub Cover 10 - Top 11 - Wiring Information

02 - Cabinet-front   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	22002548	Cabinet Assy. (wht) (Series: 29)	Call for Availability
	W11573574	Screw (Series: 67) (Replaces: 22001995)	$8.70  In-Stock Retail: $8.47
	22003639	Cabinet Kit (wht) (Series: 10)	$102.50 Special Order
	22003639	Cabinet Assy. (wht As Pk) (Series: 72)	$102.50 Special Order
	22003582	Cabinet, Assy. (wht-as Pk) (Series: 67)	$172.20 Special Order
	22002013	Stop, Shipping (Series: 10)	Call for Availability
	WP22004095	Hinge, Plastic (Series: 67)	$28.10  In-Stock Retail: $27.35
	22003511	Insulation, Cabinet (Series: 10)	$4.40 Special Order
2	315471	Retainer, Wire (Series: 10)	$6.40 Special Order
3	33001836	Strap, Top Cover Support (Series: 10)	$4.20 Special Order

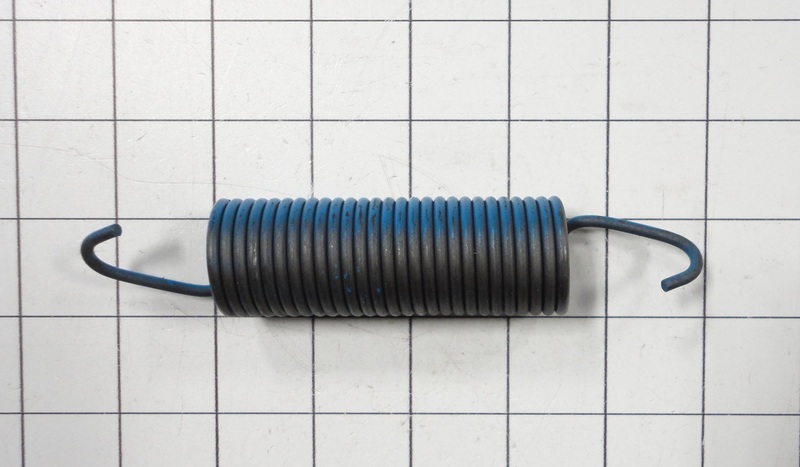

4	22002100	Spring (Series: 10)	$19.90 Special Order
5	WP22002297	Support, Spring (Series: 10)	$4.80  In-Stock Retail: $4.59
6	22001997	Spacer, Top Cover (Series: 10)	$4.40 Special Order
7	WP22002049	Clip (Series: 10)	$7.10 Special Order
8	22002090	Brace, Corner (Series: 10)	$4.40 Special Order
	22003652	Shroud Support Assembly (Series: 69)	$21.10 Special Order
	22002292	Brace, Corner (lt) (Series: 10)	$4.40 Special Order
9	W11573574	Screw (Series: 10) (Replaces: 22001995)	$8.70  In-Stock Retail: $8.47
10	22002001	Support, Hinge (Series: 10)	$4.40 Special Order
11	22002247	Hook, Security (Series: 10)	$0.40 Special Order
12	22003224	Bracket, Shroud Support (rt) (Series: 10)	$21.20 Special Order

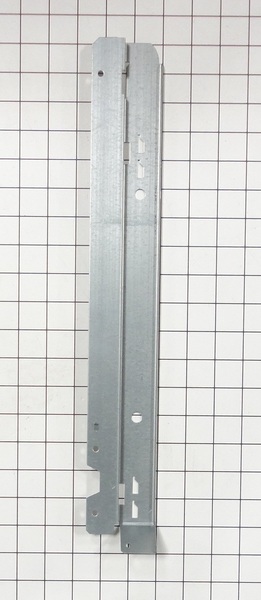

13	22002985	Bracket, Shroud Support (lt) (Series: 10)	$21.10 Special Order
14	22002505	Bridge, Shroud Support (Series: 10)	Call for Availability
15	22003652	Shroud Support Assembly (Series: 69)	$21.10 Special Order
	22002259	Brace, Cross (Series: 10)	Call for Availability
16	W11573574	Screw (Series: 10) (Replaces: 22001995)	$8.70  In-Stock Retail: $8.47
17	22002178	Bracket, Water Switch (Series: 10)	$4.40 Special Order
	WP489128	Screw (Series: 10)	$6.70  In-Stock Retail: $6.50
18	W11573574	Screw (Series: 10) (Replaces: 22001995)	$8.70  In-Stock Retail: $8.47
19	213007	Screw, Cabinet (Series: 10)	$7.80 Special Order
	213007	Screw----na (Series: 67)	$7.80 Special Order
