Whirlpool KDRP463LSS04 Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    60mm  blower  burner  control  glass  hinge  inner  light  module  receiver  screw  sealer  sensor  silastic  spark  spst  temp  thermostat  tod  transformer


Select a Diagram


06 - Cooktop, Burner And Grate Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
2 4454960 4454960 Backsplash Call for Availability
3 8284712 Support, Backsplash Call for Availability
4 WP3196557 WP3196557 Screw, 8-18 X 3/8 $4.80
 In-Stock
Retail: $4.59
5 W10106700 W10106700 Grate, Burner
(Replaces: 4454963) 		$79.50
Special Order
6 8284851 Trim, Island $42.50
Special Order
7 8285038 Cover, Burner Spud $27.40
Special Order
8 8301056 Support, Control Panel $79.10
Special Order
9 8301041 Cover, Control Panel $26.90
Special Order

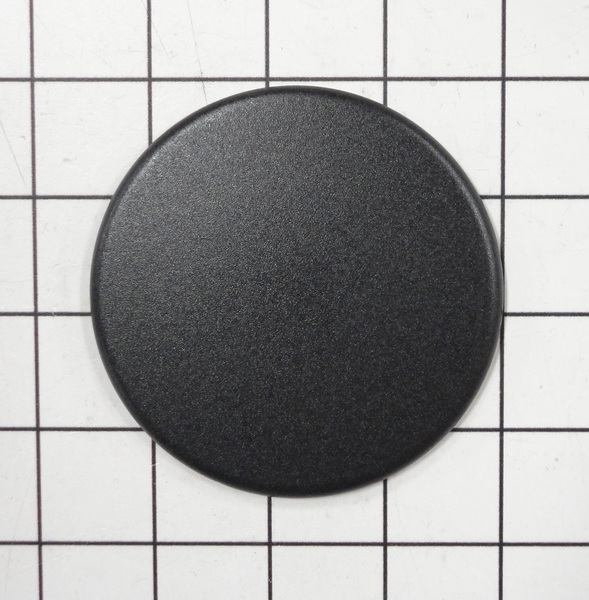

13 WP4455243 WP4455243 Cap, Burner (14k (2))
(Replaces: 4455243) 		Call for Availability
WP8284669 WP8284669 Cap, Burner (6k (2))
(Replaces: 8284669) 		$41.80
 In-Stock
Retail: $40.76
15 4456920 Holder, Orifice Includes Orifice (auxi) $19.00
Special Order

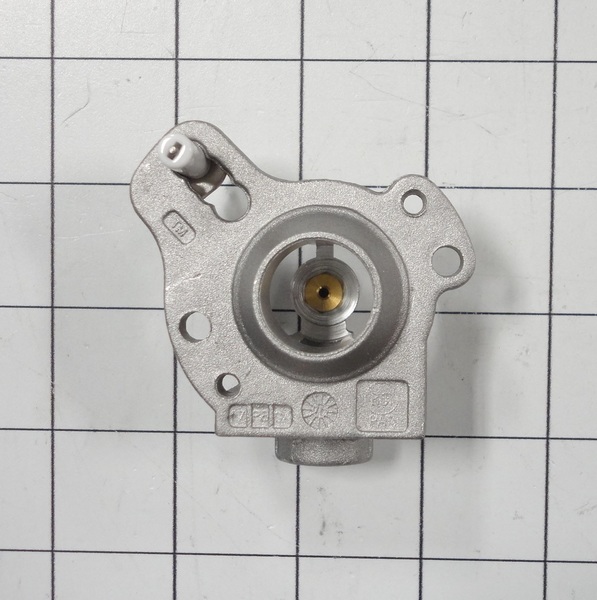

WPW10155786 WPW10155786 Holder, Orifice Includes Orifice (turbi) $71.50
Special Order
16 4454974 Support Rail (r.h.& L.h.) $37.10
Special Order
18 4456964 Cooktop, Black $110.30
Special Order
19 WP4455849 WP4455849 Burner Head 14k (turbo (2))
(Replaces: 4455849) 		Call for Availability
WP4455979 WP4455979 Burner Head 14k (auxillary (2))
(Replaces: 4455979) 		$35.80
 In-Stock
Retail: $34.83
20 WP3368921 WP3368921 Screw, 7-18 X 3/4
(Replaces: 3368921) 		$1.30
 In-Stock
Retail: $1.24
25 W11233072 W11233072 Screw $8.70
 In-Stock
Retail: $8.47
28 4455109 Plate, Simmer Call for Availability
