Whirlpool KDRP463LSS04 Parts List

Popular Searches: (Click to search) 60mm blower burner control glass hinge inner light module receiver screw sealer sensor silastic spark spst temp thermostat tod transformer

Select a Diagram

01 - Oven Parts

02 - Oven Door Parts

03 - Internal Oven Parts

04 - Control Panel Parts

05 - Top Venting Parts

06 - Cooktop, Burner And Grate Parts

07 - Burner Box, Gas Valves, And Switches

08 - Chassis Parts, Miscellaneous Parts

Double click the image below to zoom-in

Hover over In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability
1	4451759	Vent, Exhaust	Call for Availability
2	4455178	Elbow, Vent-top	Call for Availability
3	WP4449809	Screw (4) (Replaces: 4449809)	Call for Availability
	W10810687	Blower 60mm (Replaces: 9759320 8300223)	Call for Availability
	WP3400015	Screw (1)	Call for Availability
4	4455177	Elbow, Vent Bottom	Call for Availability
5	WP9760588	Transformer, Light (Replaces: 6610122)	Call for Availability
6	WP9760587	Transformer, Control (Replaces: 8300642)	Call for Availability
7	WP4449809	Screw, 8-18 X 3/8 (Replaces: 4449809)	Call for Availability
8	WP4455352	Bracket, Blower	Call for Availability
9	8301632	Box, Blower	Call for Availability
11	WP4449868	Block, Terminal (Replaces: 4449868)	Call for Availability
14	4452442	Side, Control Top	Call for Availability
21	W10491987	Seal, Foam	Call for Availability
22	W10145009	Deflector, Vent Box	Call for Availability
23	8301489	Bracket, Control Mounting	Call for Availability

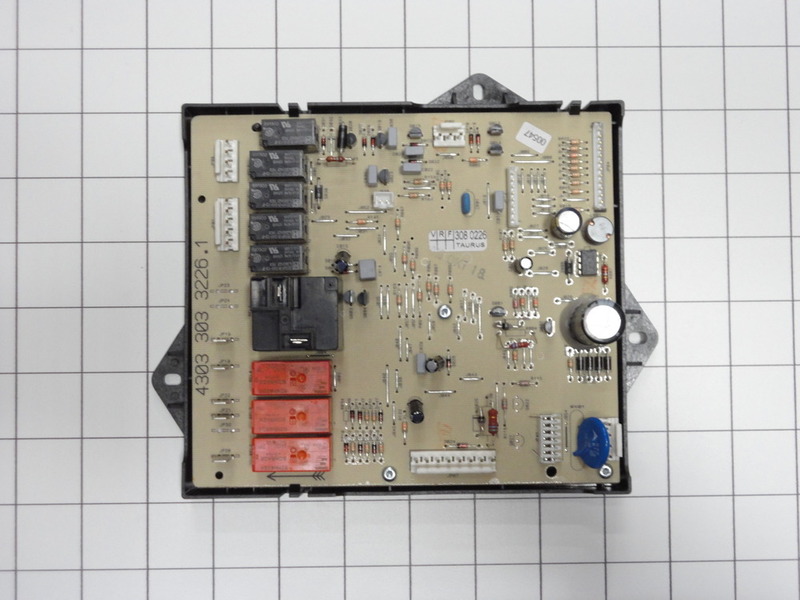

24	WP8300795	Control, Zodiac	Call for Availability
25	W11684512	Screw (4)	Call for Availability
	WP4451985	Suppressor (Replaces: 4451985)	Call for Availability
