Maytag LSE9900AFL Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    assembly  bearing  belt  clamp  damper  door  drive  kit  lid  light  lube  pad  poly  pulley  pump  repair  roller  switch  tub  tumbler


Select a Diagram


02 - Base & Pump (lse9900afl,afw)   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
1 WPW10346892 WPW10346892 Screw (Series: A0) $4.80
 In-Stock
Retail: $4.59
215098 Shield, Motor (Series: A0) $21.10
Special Order
2 213100 Brace, Tub (Series: A0) Call for Availability
3 206707 Transmission, Orbital (Series: A0) $155.40
Special Order
4 211028 Deflector,water (drive Tube) (Series: A0) $1.70
Special Order
5 203725 203725 Damper W/bolt & Clip (Series: A0) Call for Availability
6 203956 203956 Damper Pad Kit (w/poly Lube) (Series: A0) $29.70
 In-Stock
Retail: $40.79
7 206505 Switch, Motor Start (Series: A0) Call for Availability
205133 Motor External Start Switch (Series: A0) Call for Availability
205132 Switch, Motor Start (Series: A0) Call for Availability
8 12002351 12002351 Motor (one Speed) (Series: A0)
(Replaces: 201805) 		$165.40
 In-Stock
Retail: $165.37
9 WP210385 Nut, Lock (Series: A0) $4.80
Special Order
10 22003428 22003428 Leg, Adjustable (w/nut) (Series: A0) $8.70
Special Order
11 WP210684 Foot, Rubber (Series: A0)   (Replaces: 210684) $9.30
 In-Stock
Retail: $9.22
12 214956 214956 Mount, Motor/upper (Series: A0) $20.10
Special Order
13 205999 205999 Motor Mount Assm Complete (Series: A0) Call for Availability
14 202718 Tension Springs (Series: A0) $8.40
Special Order
15 205000 205000 Glide Kit (4 W/poly Lube) (Series: A0) $55.00
 In-Stock
Retail: $53.57
16 205908 Lower Motor Mount (Series: A0) $21.60
Special Order
17 WP3400029 Nut, Washered Lock (Series: A0) $4.80
Special Order
18 WP6-2008160 Pulley, Motor (w/set Screw) (Series: A0)   (Replaces: 200816) Call for Availability
Y053241 Set Screw, Pulley (Series: A0) Call for Availability
19 205000 205000 Glide & Spring Kit (Series: A0) $55.00
 In-Stock
Retail: $53.57
20 203274 203274 Base With Damper Pads (Series: A0) $111.70
Special Order
21 901220 Wire, Ground (Series: A0) $4.40
Special Order
WP489128 Screw, Ground Wire To Base--na (Series: A0) $6.70
Special Order
22 WP22001448 Hose (Series: A0)   (Replaces: 215365) $51.60
Special Order
23 WP285655 WP285655 Hose Clamp - 1-5/8 Inch (Series: A0) $4.80
 In-Stock
Retail: $4.59
24 WPY014874 WPY014874 Screw, Hex Hd No.10 X 1/2 Inc (Series: A0) $4.80
Special Order
WP6-2022030 WP6-2022030 Pump As Pak (Series: A0)
(Replaces: 202203) 		Call for Availability
22003235 Screw, Bearing Insert (Series: A0) $5.40
Special Order
25 WP3367052 WP3367052 Clamp, Hose (Series: A0) $4.80
Special Order
26 WP213045 WP213045 Drain Hose-tub To Pump (Series: A0)
(Replaces: 213045) 		$35.30
 In-Stock
Retail: $34.38

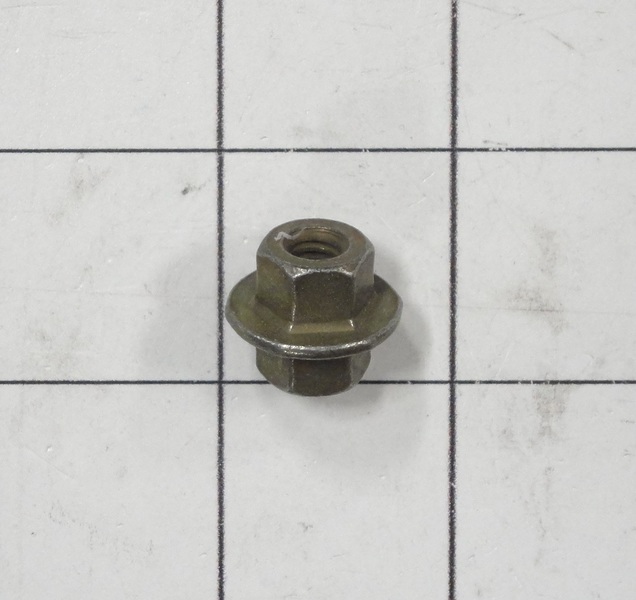

27 WP211949 WP211949 Nut, Eyebolt (Series: A0)
(Replaces: 211949) 		$4.80
Special Order

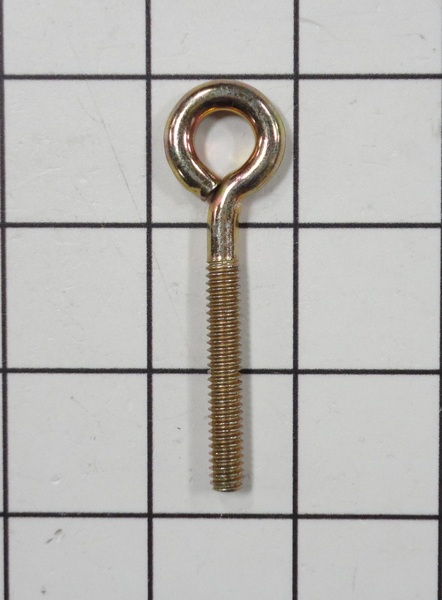

28 W11129403 W11129403 Eye Bolt For Center Spring (Series: A0) $8.70
Special Order
29 Y015627 Screw, Hex Hd Cap 5/16 X 5/8 (Series: A0) $5.40
Special Order
30 486009 Washer, Lock (brace) (Series: A0) $4.40
Special Order

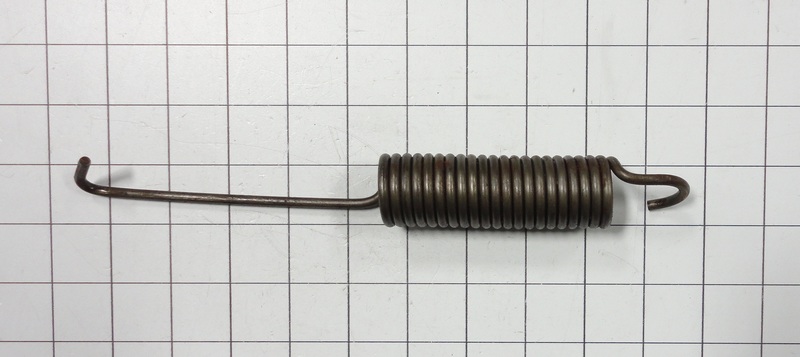

31 213054 213054 Centering Spring - 3 Used (Series: A0) Call for Availability

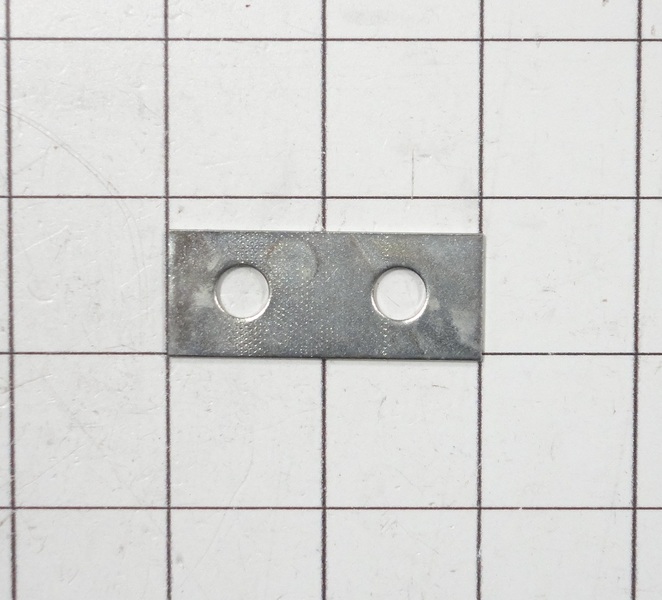

32 213073 213073 Washer, Double (Series: A0) $4.40
Special Order
33 Y052785 Nut,brace To Damper (Series: A0) $4.40
Special Order
34 Y052734 Y052734 Nut (Series: A0) $4.40
Special Order
35 Y054867 Washer, Lock (Series: A0) $4.40
Special Order

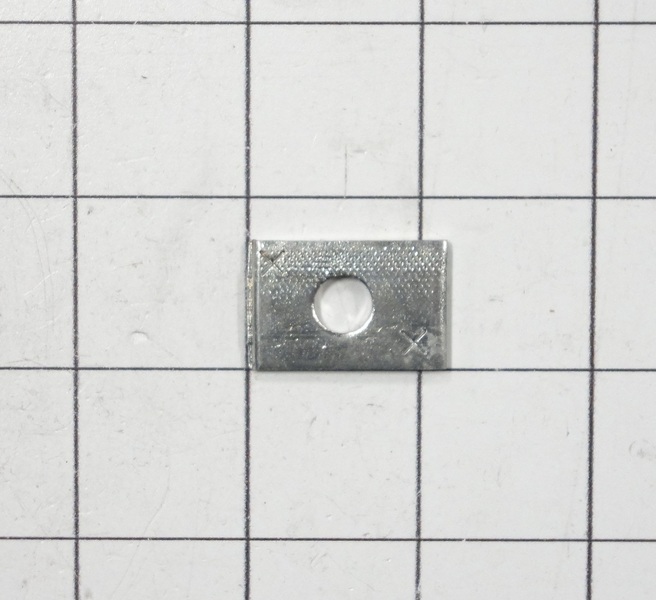

36 212979 212979 Washer, Tub Brace (Series: A0) Call for Availability
37 211100 211100 Washer, Cushion (Series: A0) Call for Availability
38 Y054867 Washer, Lock (Series: A0) $4.40
Special Order
39 W10175939 W10175939 Bolt & Gasket Assy.(short) (Series: A0)
(Replaces: 200744) 		$4.80
 In-Stock
Retail: $4.59
W10175938 W10175938 Bolt & Gasket Assembly (long) (Series: A0)
(Replaces: 205254) 		$4.80
 In-Stock
Retail: $4.59
