Maytag LSE7804ACL Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    assembly  bearing  belt  break  clamp  damper  door  drive  idler  kit  lube  pad  poly  pulley  pump  repair  roller  switch  tub  tumbler


Select a Diagram


15 - Tumbler   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
1 WP1163839 Screw (Series: A0) $4.50
Special Order
2 33001106 Back, Tumbler (w/seal) (Series: A0) Call for Availability
3 WP90767 Screw (Series: A0) $4.80
 In-Stock
Retail: $4.59
4 WP314820 WP314820 Seal, Tumbler (Series: A0)
(Replaces: 314820) 		$19.20
 In-Stock
Retail: $18.72
5 33001177 33001177 Tumbler (Series: A0) Call for Availability
6 WPY310759 WPY310759 Screw (Series: A0) $4.80
Special Order
7 314158 Washer (Series: A0) $4.40
Special Order

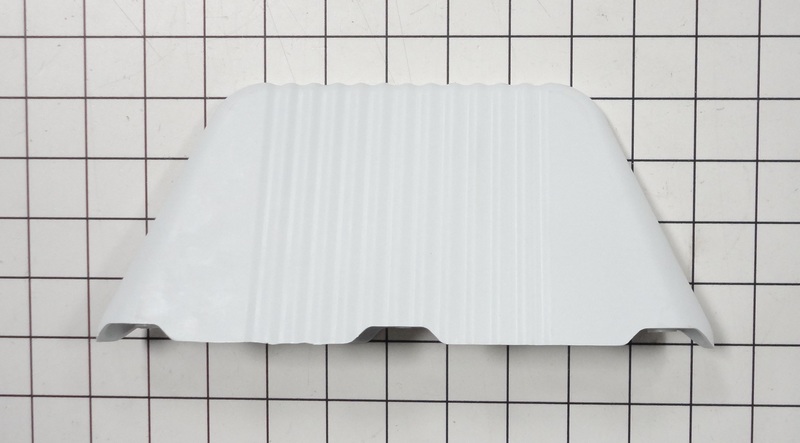

8 33001014 33001014 Baffle (tall) (Series: A0) Call for Availability
9 33001107 33001107 Front, Tumbler (Series: A0) Call for Availability
10 WP210720 WP210720 Rivet (Series: A0) $8.70
Special Order
11 WPY313561 Screw----na (Series: A0) $4.80
Special Order
12 306508 306508 Tumbler Bearing Kit (Series: A0) $9.70
 In-Stock
Retail: $21.18
13 WP33002917 Screw, Inlet Duct (Series: A0) $4.80
Special Order
14 WP488234 WP488234 Screw, Ground Wire (Series: A0) $4.60
Special Order
15 WP1163839 Screw (Series: A0) $4.50
Special Order
16 901220 Wire, Ground (Series: A0) $4.40
Special Order
17 Y310376 Clip, Wire Harness (Series: A0) $4.40
Special Order

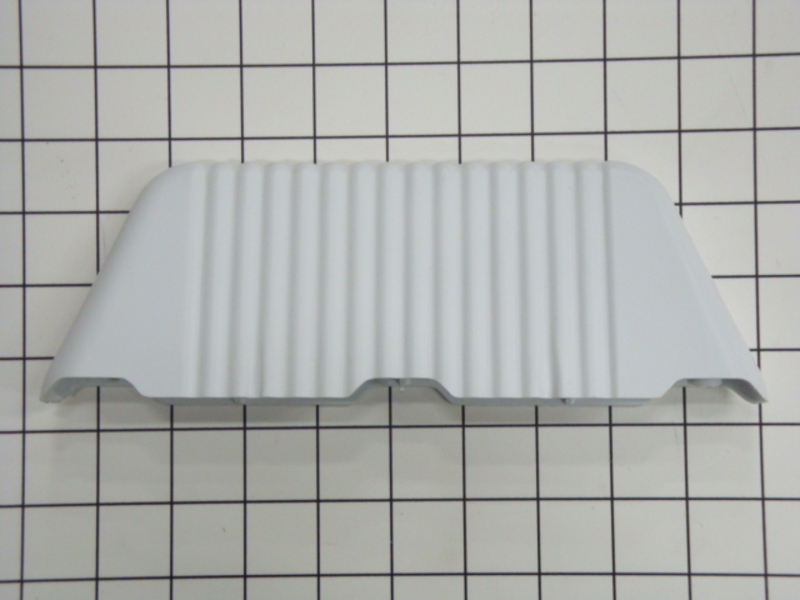

18 33001013 33001013 Baffle (short) (Series: A0) Call for Availability
19 WP9703438 WP9703438 Ring, Retaining (Series: A0)
(Replaces: 410233) 		$1.80
 In-Stock
Retail: $1.68
20 WP312535 WP312535 Washer, Roller Shaft (Series: A0)
(Replaces: 312535) 		$7.00
 In-Stock
Retail: $6.75
21 12001541 12001541 Bearing & Roller Assembly (Series: A0)
(Replaces: Y303373) 		$29.30
 In-Stock
Retail: $29.30
22 WP312535 WP312535 Washer, Spring (roller Shaft) (Series: A0) $7.00
 In-Stock
Retail: $6.75
23 WP6-3129480 WP6-3129480 Shaft, Tumbler Roller (Series: A0)
(Replaces: Y312948) 		$7.80
 In-Stock
Retail: $7.80
24 WP33001443 Nut, Roller Shaft (Series: A0)   (Replaces: 312538) $4.80
Special Order
25 304997 304997 Sensor Assembly (w/screws) (Series: A0) $35.40
Special Order
26 Y303711 Y303711 Sensor Ground Wire (Series: A0) $4.40
Special Order
27 WP3177991 WP3177991 Screw (Series: A0) $4.80
Special Order
28 Y312658 Receptacle, Sensor Ground Wire (Series: A0) $4.40
Special Order
29 WP90767 Screw (Series: A0) $4.80
 In-Stock
Retail: $4.59
30 WPY312959 WPY312959 Belt, Drum (Series: A0)
(Replaces: 314774) 		$31.30
 In-Stock
Retail: $31.25
31 WP33001003 WP33001003 Screen, Lint (Series: A0)
(Replaces: 33001003) 		$30.90
 In-Stock
Retail: $30.89
32 WPW10116751 Screw (Series: A0) $4.80
Special Order
33 Y313795 Guide For Lint Screen (Series: A0) Call for Availability
34 Y313796 Y313796 Lint Seal (Series: A0) $4.40
Special Order
35 488660 Fastener On Outlet Duct (Series: A0) $8.20
Special Order
36 WP33001006 WP33001006 Duct, Outlet & Grid (Series: A0) $62.90
Special Order
37 WPW10116751 Screw (Series: A0) $4.80
Special Order
38 314485 Outlet Duct And Grid (Series: A0) $21.60
Special Order
39 315239 Shield For Outlet Duct (Series: A0) $4.40
Special Order
40 315238 Shield (Series: A0) $20.50
Special Order
41 310207 Screw, No.6 X 1/4 Inch (Series: A0) $4.40
Special Order
42 313915 Cover, Thread (Series: A0) $0.30
Special Order
