Maytag LSE7804ACL Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    assembly  bearing  belt  break  clamp  damper  door  drive  idler  kit  lube  pad  poly  pulley  pump  repair  roller  switch  tub  tumbler


Select a Diagram


08 - Front Panel & Control Panel   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
1 314286 Seal For Front Panel (Series: A0) $63.20
Special Order
2 WP1163283 Screw, No.8 X 1/2 Inch (Series: A0) $4.80
Special Order
3 W10169313 W10169313 Switch, Door (Series: A0)
(Replaces: Y305753) 		$18.00
 In-Stock
Retail: $17.56
W10169313 W10169313 Switch, Door (Series: 16)
(Replaces: 33001509) 		$18.00
 In-Stock
Retail: $17.56
4 WP98008544 WP98008544 Panel, Fastener (Series: A0) $9.00
Special Order
33002366 Panel, Front (alm) (Series: A0) $129.80
Special Order
5 Y310376 Clip, Wire Harness (Series: A0) $4.40
Special Order
6 315287 Bumper Small (Series: A0) $4.40
Special Order
7 LA-1003 LA-1003 Catch, Door (female) (Series: A0) $16.90
Special Order
8 308017 Switch, Dryer Temperature (Series: A0) $46.30
Special Order
9 22001627 Screw (Series: A0) $4.40
Special Order
10 207782 207782 Switch, Water Temperature (Series: A0) Call for Availability
11 22001188 22001188 Switch, Rotary (Series: A0) $69.80
Special Order
12 WP90767 Screw (Series: A0) $4.80
 In-Stock
Retail: $4.59
13 22001034 Knob, Timer (blk) (Series: A0) Call for Availability
14 315267 End Cap,control Panel (blk) (Series: A0) $5.00
Special Order
15 WP8281227 WP8281227 Screw,hex Head (brake Drum) (Series: A0) $6.70
Special Order
16 WP211065 WP211065 Spring, Timer Knob (Series: A0)
(Replaces: 211065) 		$4.80
Special Order
17 215828 215828 Knob, Timer (blk) (Series: A0) $7.80
Special Order
18 12001119 12001119 Cap, Timer Knob (blk) (Series: A0) $5.20
Special Order
19 WPW10137328 WPW10137328 Retainer, Timer Knob (Series: A0)
(Replaces: 211605) 		Call for Availability
20 W10155650 W10155650 Nut (Series: A0) $8.70
Special Order
21 315041 Knob, Timer (Series: A0) $21.10
Special Order
22 33001291 Knob, Selector Switch (blk) (Series: A0) $21.00
Special Order
23 33001009 Dial, Dryer Timer (blk) Na (Series: A0) Call for Availability
24 WP488234 WP488234 Screw, Switches (Series: A0) $4.60
Special Order
25 Y308025 Switch, Push To Start (blk) (Series: A0) $33.80
Special Order
26 33001008 Panel, Control (blk) (Series: A0) Call for Availability
27 215952 Screw (Series: A0) $4.40
Special Order
28 315237 Bracket For Switches & Timer (Series: A0) Call for Availability
29 WP33001034 WP33001034 Timer, Dryer (Series: A0)
(Replaces: 33001034) 		$208.20
Special Order
30 314482 Fastener, Spring (Series: A0) $4.40
Special Order
31 488660 Fastener, Speednut (Series: A0) $8.20
Special Order
32 315286 Bumper Large (Series: A0) $4.40
Special Order

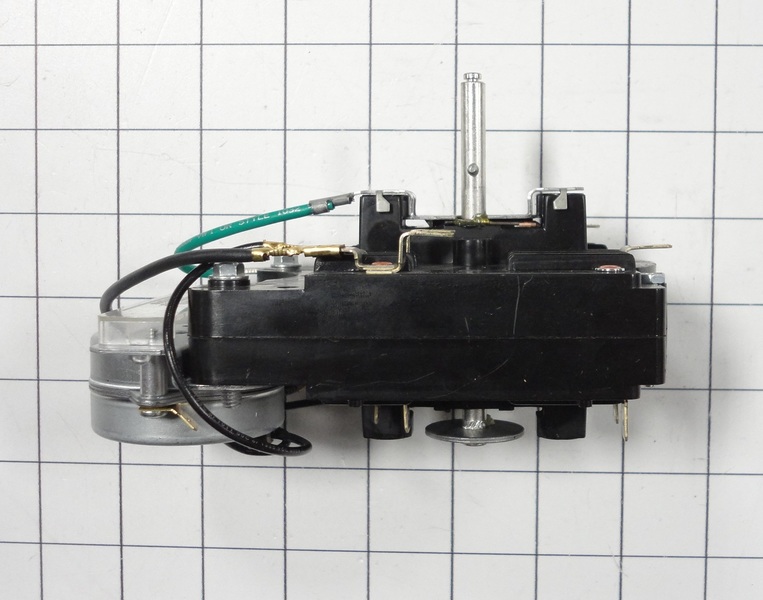

33 WP22001180 WP22001180 Timer (Series: A0)
(Replaces: 22001180) 		Call for Availability
34 22001427 Wire Harness (upr) Na (Series: A3) Call for Availability
208772 Wire Harness (upper) (Series: A0) $87.70
Special Order
35 208776 Wire Harness (lower) (Series: A0) Call for Availability
22001432 Wire Harness (lwr) (Series: A3) Call for Availability
36 33001368 Wire Harness, Dryer (Series: A1) $57.00
Special Order
33001553 Harness, Wire (dryer) (Series: 16) $75.60
Special Order
33001042 Wire Harness, Dryer (Series: A0) $41.40
Special Order
