Whirlpool KBLP36MHB01 Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    16``  access  assembly  blade  complete  defrost  door  drain  drier  fan  grease  heater  icemaker  kit  pan  screw  silicone  timer  tube  valve


Select a Diagram

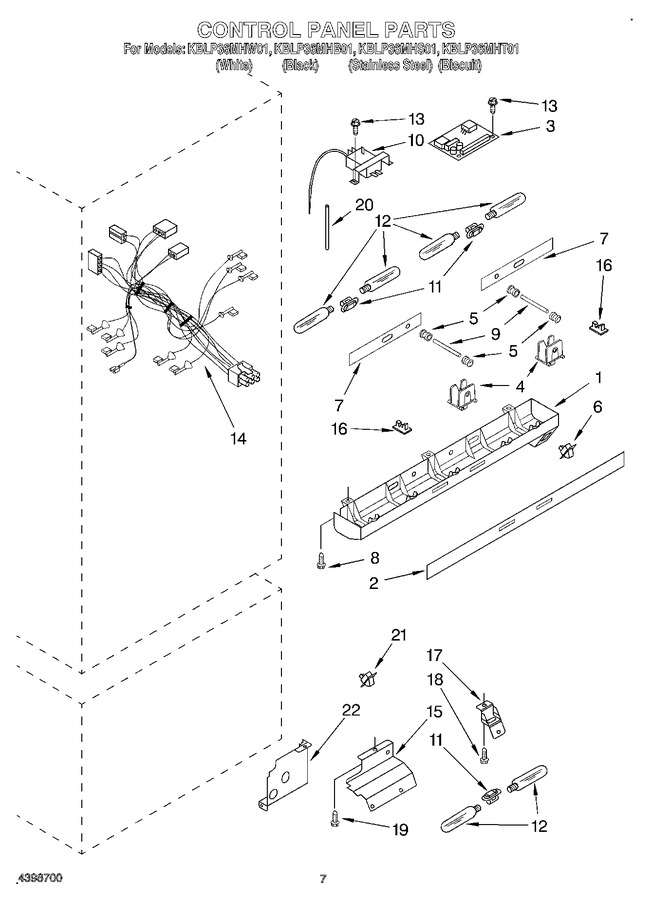

05 - Control Panel   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
1 2005489 Control Panel $62.90
Special Order
2 2005940 Overlay, Control Panel $24.20
Special Order
3 2005585 2005585 Circuit Board Call for Availability
4 2005414 Slide, Control $8.10
Special Order
5 2172906 Grommet, Light Fiber $5.50
Special Order
6 W11384469 W11384469 Switch, Rocker Arm
(Replaces: WP1118894 1118894)
$22.90
 In-Stock
Retail: $22.28
7 2005935 Heat Shield, Lamp $10.60
Special Order
8 489260 Screw (3) Call for Availability
9 2179920 Fiber Optic Call for Availability
10 2207475 Thermostat $90.70
Special Order
11 2005043 Socket, Light $29.80
Special Order
12 WP548049 WP548049 Light Bulb
(Replaces: 548049)
$51.20
 In-Stock
Retail: $49.94
13 2006254 Screw $8.50
Special Order
14 2207480 Harness, Control Box $164.40
Special Order
15 2207411 Channel, Wiring Freezer Light $11.00
Special Order
16 1115375 Clip, Wiring $7.60
Special Order
17 2207410 Bracket, Freezer Light $38.70
Special Order
18 WP489128 Screw $6.70
 In-Stock
Retail: $6.50
19 WP488729 Screw   (Replaces: 486194) $4.80
 In-Stock
Retail: $4.59
20 2207416 Tube-barrier, Thermostat $4.40
Special Order
21 W11457217 Switch, Rocker $22.90
 In-Stock
Retail: $22.28
22 2005792 Wiring Cover, Icemaker $38.30
Special Order
