07 - Refrigerator Door Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	L2300083	Refrigerator Door (includes Item 9)	$462.30 Special Order
2	W10137191	Skin, Door (stainless Steel)	$844.80 Special Order
3	2266912	Hinge Assembly, Top	$30.90 Special Order
4	2256381	Spacer-hinge, Top	$18.60 Special Order
5	W11474472	Screw, 10-32 X 3/4   (Replaces: WP489282 489282)	$4.80  In-Stock Retail: $4.59
6	2302928	Hinge Assembly, Bottom	$21.90 Special Order
7	2005397	Filler, Foam	$75.60 Special Order
8	2300026	Spacer, Door Edge - Side (2)	$143.70 Special Order

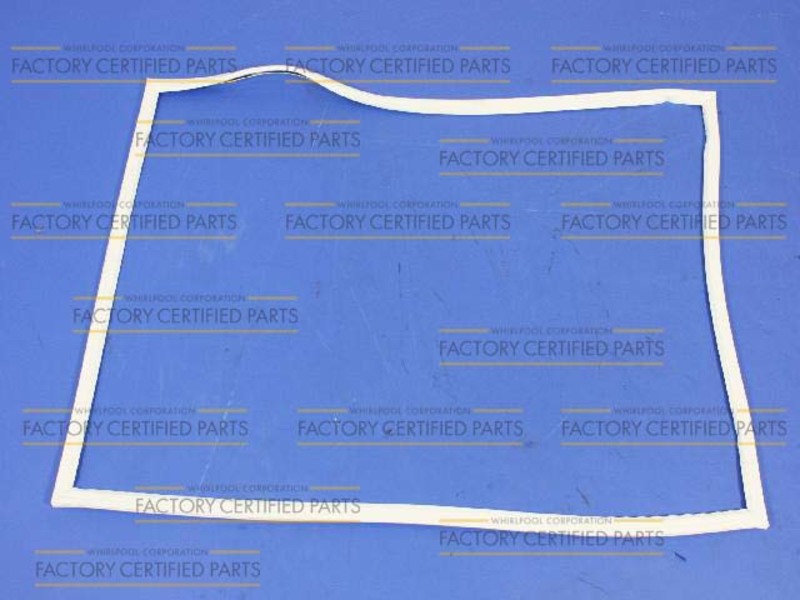

9	2302709	Door Gasket, Magnetic	$211.70 Special Order
10	WP308544	Screw, 10-24 X 1/2	$4.80 Special Order
11	WP2005290	Handle, Door (stainless Steel)	$187.70  In-Stock Retail: $183.10
12	2005982	Gasket (2)	$29.50 Special Order
13	2257647	Spacer-hinge, Bottom	$4.40 Special Order
14	2300023	Spacer, Door Edge - Bottom	$90.70 Special Order
15	WP8281250	Screw 8-15 X 1/2 (stainless Steel)	$6.70  In-Stock Retail: $6.50
	W10851443	Screw 8-15 X 1/2 (black)	$4.80 Special Order
17	2300024	Spacer, Door Edge - Top	$36.40 Special Order
18	2005482	Tube, Door Shelf	$128.90 Special Order
19	2005417	Shelf, Door (2)	Call for Availability
20	WP681249	Screw, 8-18 X 3/4	$4.80  In-Stock Retail: $4.59
21	2005542	End Cap, Left	$29.60 Special Order
22	2005541	End Cap, Right	$29.60 Special Order
23	2006152	Tube, Door Shelf (gallon)	$127.60 Special Order
26	2005983	Door, Utility Bin (2) (includes Item 12)	Call for Availability
27	2006154	Door Shelf, Gallon	$121.30 Special Order
28	WP2165792K	Butter Tray	$7.60 Special Order
