Maytag LNC6762B71 Parts List

Popular Searches: (Click to search) 2sp 60hz assembly bearing belt cam cap drive dust hub kit motor pulley pump replacement seal snubber thrust trans tub

Select a Diagram

01 - Base

02 - Base (series 19)

03 - Cabinet

04 - Control Panel

05 - Supplemental Information

06 - Top

07 - Transmission

08 - Transmission (series 17)

09 - Transmission (series 22)

10 - Tub

11 - Wiring Information

12 - Wiring Information (series 20)

Double click the image below to zoom-in

Hover over In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability
1	21001565	Panel, Control (wht) (Series: 10)	$47.70 Special Order
	53-1639	Buzzer Assy. (Series: 10)	Call for Availability
2	21001546	Endcap, Panel (lt-wht) (Series: 10)	Call for Availability
3	21001547	Endcap, Panel (rt-wht) (Series: 10)	Call for Availability
4	31001190	Switch, Two Position Rotary (Series: 10)	Call for Availability
5	21001882	Switch, Pressure (emz) (Series: 20)	Call for Availability
	WP21001554	Switch, Water Level (Series: 10) (Replaces: 21001554)	$107.50 Special Order
6	21001520	Skirt, Timer Knob (wht) (Series: 10)	Call for Availability
7	21001526	Knob, Timer (wht) (Series: 10)	Call for Availability

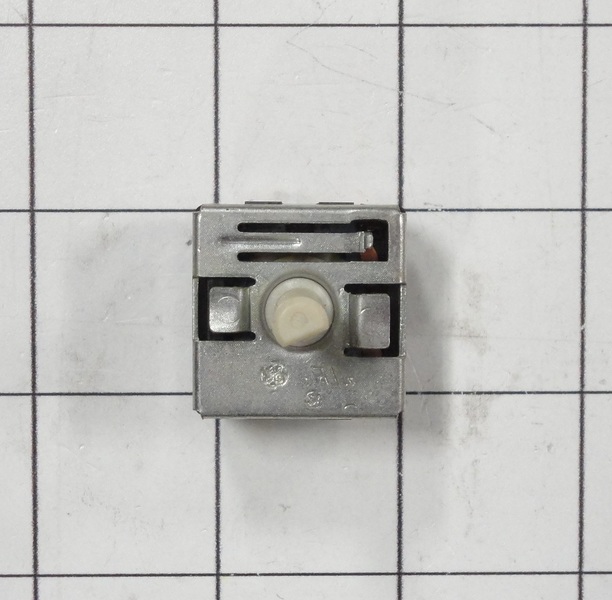

8	21001226	Switch, Water Temp. 4 Position (Series: 10)	Call for Availability
9	21001552	Frame (wht), Control Panel (Series: 10)	$39.70 Special Order
10	21001527	Shield, Rear (back Panel) (Series: 10)	$21.10 Special Order
11	21001561	Timer (Series: 10)	$162.80 Special Order
12	21001544	Knob, Selector (wht) (Series: 10)	$18.30 Special Order
13	21001603	Shield, Control (3 Pos.) (Series: 10)	$4.40 Special Order
14	21001792	Harness, Wire (Series: 10)	$33.60 Special Order
	21001938	Harness, Wiring (Series: 20)	$32.40 Special Order
