Whirlpool KBFS22EWWH1 Parts List

Popular Searches: (Click to search)    2oz  black  board  control  door  drain  drier  filter  miscellaneous  paint  pressurized  slide  spray  start  thermistor  touch  tube  valve  water  white


Select a Diagram

01 - Cabinet Parts

02 - Freezer Liner Parts

03 - Refrigerator Liner Parts

04 - Refrigerator Door Parts

05 - Unit Parts

06 - Shelf Parts

07 - Freezer Door Parts

08 - Icemaker Parts

09 - Optional Parts (not Included)

Select Diagram ... 01 - Cabinet Parts 02 - Freezer Liner Parts 03 - Refrigerator Liner Parts 04 - Refrigerator Door Parts 05 - Unit Parts 06 - Shelf Parts 07 - Freezer Door Parts 08 - Icemaker Parts 09 - Optional Parts (not Included)

03 - Refrigerator Liner Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	N/P	Liner (not A Serviceable Part)	Call for Availability
2	W10203323	Module, Light	$16.90 Special Order
3	WPW10317125	Overlay	$148.60 Special Order
4	W11416469	Module, Control	$125.40 Special Order
5	WPW10319823	Board, Control   (Replaces: W10319823)	$198.70  In-Stock Retail: $193.81
6	W11291138	Switch, Rocker (Replaces: WP12466104 12466104)	$21.60  In-Stock Retail: $21.02
7	W11284721	Cover, Light	$55.80 Special Order
8	12806601	Housing, Light	$61.20 Special Order
9	W11679940	Bulb, Light	$7.20  In-Stock Retail: $6.99
10	W11447232	Socket, Light	$7.00  In-Stock Retail: $6.80
11	67003900	Insert, Damper Cover	$4.50 Special Order
12	WP400021-1	Screw	$6.30  In-Stock Retail: $6.13
13	WP12806701	Cover, Damper	$61.90 Special Order
14	WP13012402	Insulation, Damper   (Replaces: 13012402)	$47.90 Special Order
15	WPW10594329	Control, Damper   (Replaces: W10207517)	$126.00  In-Stock Retail: $122.87
17	WP67001668	Plate, Filter	$7.60  In-Stock Retail: $7.35
18	W11346623	Head, Water Filter (Replaces: 12590620)	$63.70  In-Stock Retail: $62.11
19	EDR4RXD1	Filter, Water (Replaces: UKF8001AXX)	$59.99  In-Stock Retail: $59.99
20	WP12568001	Cover, Filter (Replaces: 12568001)	$60.50  In-Stock Retail: $58.97
21	WP67006415	Screw	$4.50 Special Order
22	B8390302	Clip, Speed	$7.60 Special Order
23	12706909SP	Facade, Dispenser	$33.20 Special Order
24	12707303SP	Plate, Dispenser	$45.10 Special Order
25	WP12575501	Switch, Limit (Replaces: 12575501)	$37.90 Special Order
26	W11677725	Guide, Waterline	$13.00 Special Order
27	67002816	Clip, Water Tube	$10.90 Special Order
28	W11519867	Facade, Dispenser	$13.20  In-Stock Retail: $12.80
29	12706111	Tank, Water	$55.40 Special Order
30	WP2300868	Union, Water (Replaces: 61006182)	$18.70  In-Stock Retail: $18.17
31	W11395888	Cartridge, Bypass (Replaces: 12664501SP)	$26.10  In-Stock Retail: $25.37
32	67006425	Screw	$4.50  In-Stock Retail: $4.33
33	W10833346	Insulation, Water Tank	$18.20 Special Order

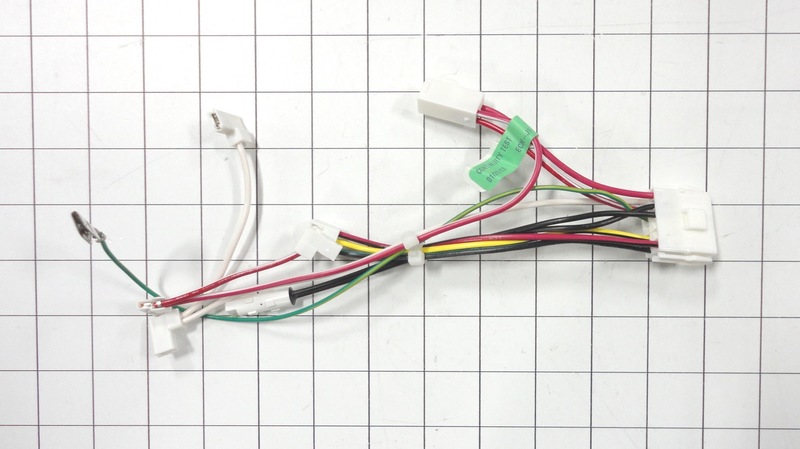

NI	WPW10273869	Harness, Control (refrigerator)	$77.70 Special Order
	N/P	Following Parts Not Illustrated	Call for Availability
