03 - Control Panel   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	214872	Palnut, End Cap (Series: A0)	Call for Availability
2	33001265	Plate, Support (Series: A0)	Call for Availability
3	210932	Screw,ctrl.pnl & End Cap(blk) (Series: A0)	$4.40 Special Order
4	22001288	End Cap, Ctrl. Pnl. (lt-blk) (Series: A0)	$4.30  In-Stock Retail: $4.17
	22001290	End Cap, Ctrl. Pnl. (rt-blk) (Series: A0)	$4.30  In-Stock Retail: $4.17
5	214894	Fastener, End Cap (Series: A0)	$4.40 Special Order
6	33001093	Panel, Control (blk) (Series: A0)	Call for Availability
7	33001182	Skirt, Timer Dial (blk) (Series: A0)	Call for Availability
8	315041	Knob, Timer (Series: A0)	$21.10 Special Order
9	W10155650	Nut (Series: A0)	$8.70 Special Order
10	12001119	Cap, Timer Knob (blk) (Series: A0)	$5.20 Special Order
11	33001186	Button (blk) (Series: A0)	Call for Availability
12	214897	Pad, Control Panel (Series: A0)	$27.00 Special Order
13	WP488234	Screw, Switches (Series: A0)	$4.60 Special Order

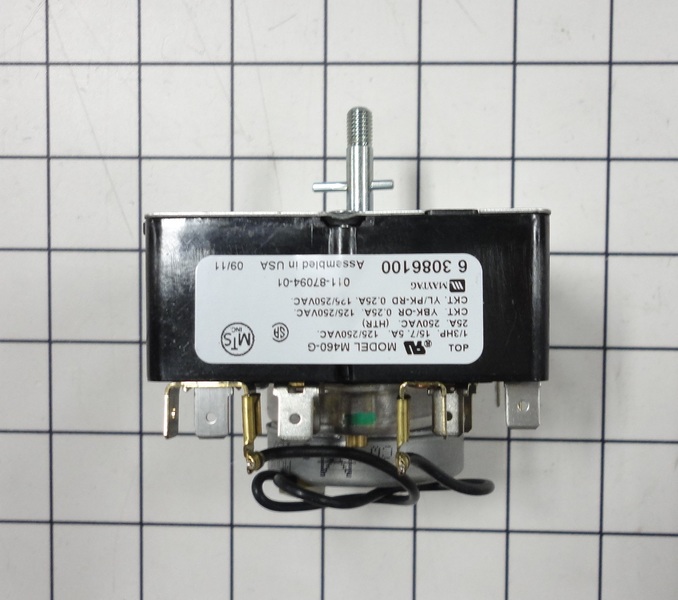

14	33001035	Timer (Series: A0)	Call for Availability
15	WP489128	Screw, Ground Wire To Base--na (Series: A0)	$6.70 Special Order
16	204807	Grnd.wire,supp.plte To Top Cvr (Series: A0)	$4.40 Special Order
17	WP488234	Screw, Switches (Series: A0)	$4.60 Special Order
18	Y308205	Buzzer (Series: A0)	Call for Availability
19	WP488234	Screw, Switches (Series: A0)	$4.60 Special Order
20	33001232	Switch, Push To Start (Series: A0)	Call for Availability
21	33001348	Wire Harness, Main (Series: A0)	Call for Availability
	33001138	Wire Harness, Main (Series: A0)	Call for Availability
22	22001135	Switch, Rocker (blk) (Series: A0)	$4.30 Special Order
23	33001215	Switch, Push Button (3 Positio (Series: A0)	Call for Availability
24	WP488234	Screw, Switches (Series: A0)	$4.60 Special Order
25	33001046	Display, Dryness Asy. (blk) (Series: A0)	$9.40 Special Order
26	WP33001212	Board, Control-moisture Sensor (Series: A0)	$209.00 Special Order
27	WP488234	Screw, Switches (Series: A0)	$4.60 Special Order
28	33001219	Switch, Push Button (2 Positio (Series: A0)	$23.80 Special Order
29	33001105	Resistor (med. Temp) (Series: A0)	Call for Availability
30	WP7730P011-60	Lens, Indicator Light (Series: A0)   (Replaces: 22001215)	$3.50 Special Order
31	33001224	Light, Indicator (Series: A0)	$2.70 Special Order
