Whirlpool JT051CAE1611 Parts List

Popular Searches: (Click to search)    16``  2oz  36`  36``  4``  access  acess  adhesive  almond  clamp  enamel  hose  insulation  paint  permagum  sealer  spray  strips  tube  valve


Select a Diagram

02 - Unit, Literature

03 - Water Distribution

04 - Cabinet And Front

05 - Optional Parts

06 - Drain Pump

Select Diagram ... 02 - Unit, Literature 03 - Water Distribution 04 - Cabinet And Front 05 - Optional Parts 06 - Drain Pump

02 - Unit, Literature   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	4387474	Compressor, Service Kit	$263.20 Special Order
2	758638	Overload (production)	$18.70 Special Order
	819098	Overload (service)	$62.30 Special Order
3	549086	Spring, Overload (service)	$4.40 Special Order
4	758637	Relay, Start (production)	$70.60 Special Order
	989646	Relay, Start (service)	$46.90 Special Order
5	1108115	Cover, Terminal (production)	$25.90 Special Order
	549336	Cover, Terminal (service)	$7.60 Special Order
6	549342	Retainer, Cover (service)	$29.70 Special Order
	938384	Retainer, Cover (production)	$4.40 Special Order

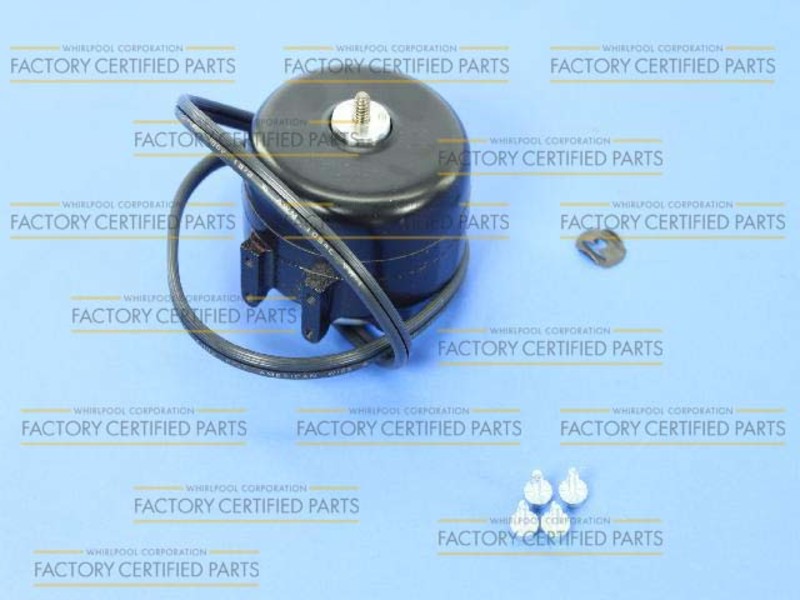

7	978483	Motor, Fan (includes No. 23)	$120.10 Special Order

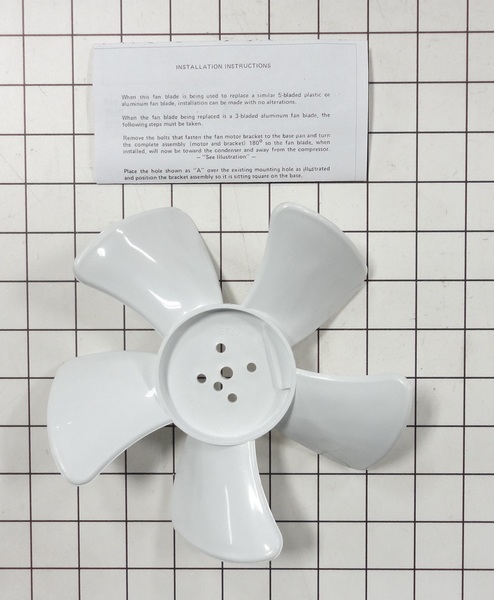

8	978655	Blade, Fan (includes And No.9)	$56.10 Special Order
9	681650	Nut, Hex 1/4-20	$4.40 Special Order
10	757955	Shroud, Condenser	Call for Availability
11	756299	Condenser	$105.40 Special Order
12	681305	Screw, 1/4-20 X 1/2	Call for Availability
13	2180807	Accumulator	$32.50 Special Order
14	W10843121	Drier, Tube	$31.80  In-Stock Retail: $30.99
15	598086	Valve, Solenoid Coil	Call for Availability
16	587970	Coil, Solenoid	Call for Availability
17	587971	Harness, Wiring (solenoid Coil)	$40.80 Special Order
18	564234	Retainer, Solenoid Coil	$4.40 Special Order
19	758811	Deflector, Air	$33.70 Special Order
20	WP90767	Screw, 8-32 X 3/8 (4)	$4.80  In-Stock Retail: $4.59
21	585219	Harness, Wiring (fan Motor)	Call for Availability
22	560817	Bracket, Fan Motor	Call for Availability
23	489199	Screw, 8-36 X 1/2 (4)	$4.50 Special Order
24	680233	Screw, 5/16-18 X 1 1/4``	$4.40 Special Order
25	486645	Washer, Flat (4)	$4.40 Special Order
30	482739	Sleeve (4)	$4.40 Special Order
31	553583	Grommet (4)	$4.40 Special Order
32	758810	Base, Unit	$51.70 Special Order
33	680811	Screw, 10-24 X 1/2 (4)	Call for Availability
	LIT758860	Sheet, Tech	Call for Availability
	LIT2165548	List, Repair Parts	Call for Availability
	LIT759231	Instructions, Installtion	Call for Availability
	758846	Wiring, Diagram	Call for Availability
	LIT2165451	Guide, Use And Care	Call for Availability
