03 - Control Panel   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	8534058	Screw (Series: 10)	$6.70 Special Order
	33001606	Panel, Control (wht) (Series: 10)	Call for Availability
2	WP33001621	Skirt, Timer Dial (wht) (Series: 10) (Replaces: 33001621)	$15.20  In-Stock Retail: $14.74
3	WP22001659	Timer Knob - Grey (Series: 10) (Replaces: 22001659)	$15.90  In-Stock Retail: $15.49
4	WP22001664	Timer Knob Insert/cap (wht) (Series: 10) (Replaces: 22001664)	$4.80  In-Stock Retail: $4.59
5	33001619	Button, Push To Start (wht) (Series: 10)	Call for Availability
6	WP90767	Screw, Timer (Series: 10)	$4.80  In-Stock Retail: $4.59
7	33001635	Timer Rpr (Series: 10)	Call for Availability
	WP33001730	Timer (Series: 11) (Replaces: 33001730)	$213.20 Special Order
8	WP489128	Screw, Ground Wire To Base--na (Series: 10)	$6.70 Special Order
9	22001654	Wire, Ground (Series: 10)	$4.40 Special Order
10	WP489128	Screw (Series: 10)	$6.70 Special Order
11	33001848	Signal, End Of Cycle (chime) (Series: 15)	$27.80 Special Order
	33001848	Signal, End Of Cycle (Series: 10)	$27.80 Special Order
12	33001618	Switch, Push To Start (wht) (Series: 10) (Replaces: 33001726)	Call for Availability
13	33001732	Wire Harness, Main (Series: 11)	$97.80 Special Order
	33001675	Wire Harness, Main (Series: 10)	$67.40 Special Order
	33001850	Wire Harness, Main (Series: 15)	$63.60 Special Order
14	WP33001656	Switch, Temp (elec)(wht) (Series: 10)	$171.10 Special Order

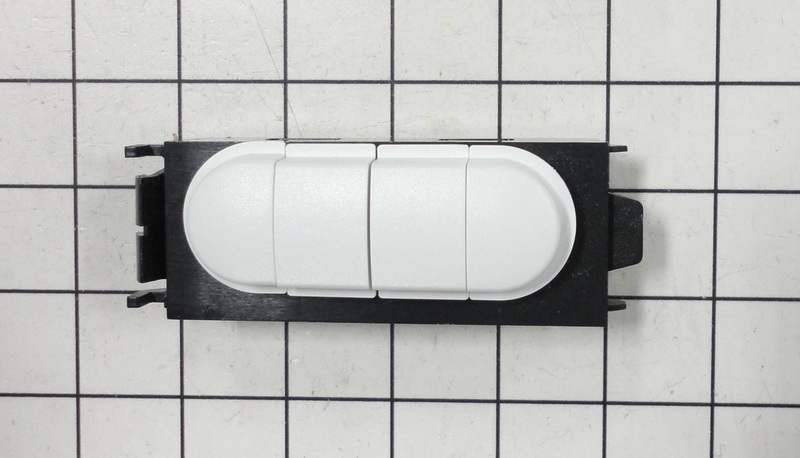

15	22001908	Switch, Option (4 Pos.-wht) (Series: 10)	$31.80  In-Stock Retail: $30.97
16	22001788	Button, Switch (wht-end) (Series: 10)	$4.40 Special Order
17	22001789	Button, Switch (wht-mdl) (Series: 10)	$4.40 Special Order
18	33001661	Display, Dryness (wht) (Series: 10)	$29.50 Special Order
