06 - Heater   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WP90767	Screw (Series: 10)	$4.80  In-Stock Retail: $4.59
2	308503	Inlet Duct Assy. (Series: 10)	$24.90 Special Order
3	314995	Heater Enclosure (Series: 10)	$21.10 Special Order
4	315346	Bracket, Thermal Fuse (Series: 10)	$4.40 Special Order
5	WP90767	Screw (Series: 10)	$4.80  In-Stock Retail: $4.59
6	WP307473	Fuse, Thermal (Series: 10) (Replaces: 307473)	$36.40  In-Stock Retail: $35.47
7	314998	Insulator, Terminal (Series: 10)	$13.00 Special Order
8	WPY308612	Heater Sub-assembly (240v) (Series: 10)	$219.50 Special Order

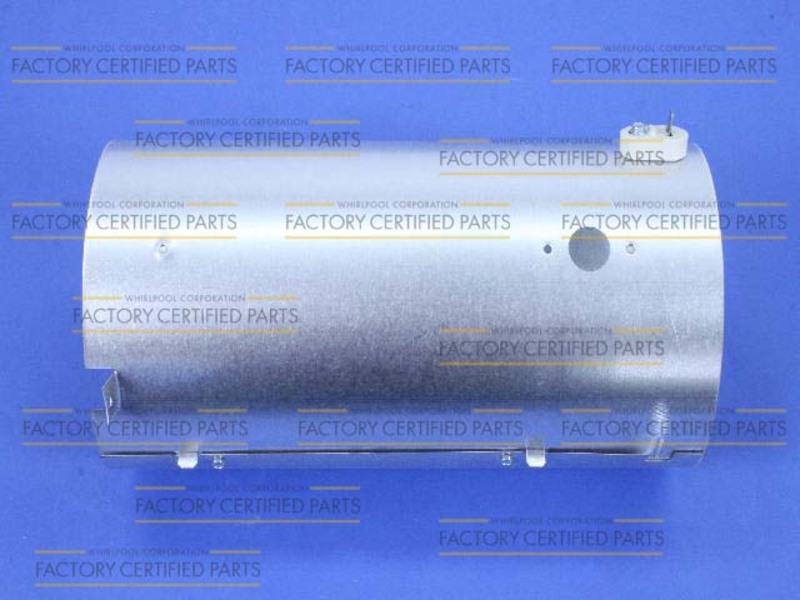

	WPW10116747	Heater Sub-assembly (208v) (Series: 10)	$212.30 Special Order
9	314999	Shield, Radiant (Series: 10)	$18.40 Special Order
10	314554	Screw (Series: 10)	Call for Availability
11	WP303396	Thermostat, Hi-limit (elec) (Series: 10) (Replaces: 303396)	$39.70  In-Stock Retail: $39.67
12	WP307178	Heater Assembly(complete 240v) (Series: 10)   (Replaces: 307178)	$227.80 Special Order
13	WPY307173	Wire, Jumper (Series: 10) (Replaces: Y307173)	$4.80 Special Order
14	W10116795	Conversion Kit (240v To 208v) (Series: 10)	$115.00 Special Order
