Whirlpool IEP314RQ2 Parts List

Popular Searches: (Click to search) 6`` 8`` almond bake door element hand infinite left lower paint pressurized right screw spray switch touch trim use white

Select a Diagram

01 - Cooktop Parts

02 - Control Panel Parts

03 - Chassis Parts

04 - Drawer & Broiler Parts

05 - Door Parts, Optional Parts

Double click the image below to zoom-in

Hover over In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability
1	3195318	Endcap (left Hand-white)	$31.60 Special Order
	3195319	Endcap (right Hand-white)	$37.60 Special Order
2	8523408	Support, Endcap (left Hand)	Call for Availability
	8523409	Support, Endcap (right Hand)	Call for Availability
3	9761901	Panel, Backguard (white)	$127.90 Special Order
4	WP3149404	Switch, Infinite (use W/ 6`` Element) (Replaces: 3148951)	$56.70 In-Stock Retail: $55.31
	WP3148953	Switch, Infinite (use W/ 8`` Element) (Replaces: 3148953)	$53.60 In-Stock Retail: $52.29
5	8273303	Indicator, Surface	$27.70 Special Order
6	WP3188987	Switch, Selector (Replaces: 3188987)	$101.10 In-Stock Retail: $98.54

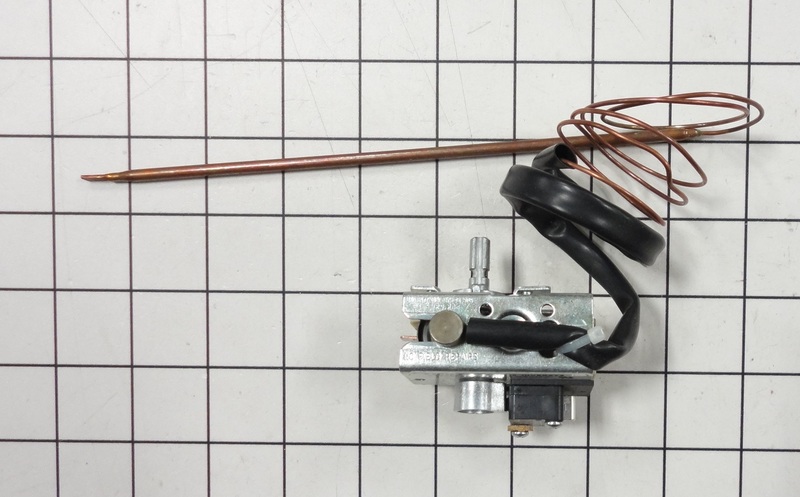

7	WP9762852	Thermostat (Replaces: 9762852 8524329)	$215.30 Special Order
8	314031	Indicator, Oven	$43.90 Special Order
10	3196200	Clip, Spring (2)	$7.30 Special Order

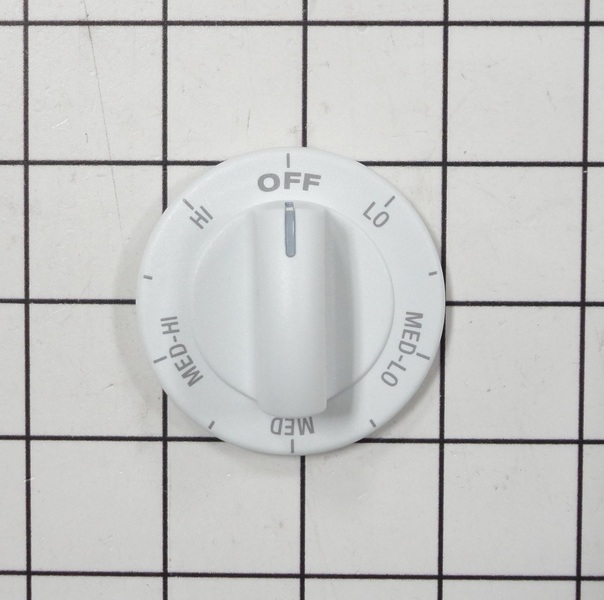

11	WP3196028	Knob, Infinite (4) (white)	$14.30 Special Order
12	3196049	Knob, Thermostat (white)	Call for Availability
13	WP3196068	Lens, Ind. (2) (Replaces: 3196068)	$3.50 In-Stock Retail: $3.34
14	3196031	Knob, Selector (white)	$43.50 Special Order
15	8053912	Shield, Heat	$35.90 Special Order
16	WP4449746	Screw (Replaces: 4449746)	$4.50 Special Order
17	WP8272473	Cover, Upper Rear	$121.50 Special Order
19	W11233072	Screw	$8.70 In-Stock Retail: $8.47
20	WP3400882	Screw (Replaces: 3400882)	$4.80 In-Stock Retail: $4.59
21	WP3196170	Screw-thermostat	$4.80 Special Order
23	WP8273564	Clip - Cover	$7.70 Special Order
