Maytag LDE712 Parts List

Popular Searches: (Click to search)    bearing  0  assembly  clamp  cycling  deg  door  idler  kit  latch  motor  pulley  retaining  ring  roller  seal  shaft  switch  thermostat  tumbler


Select a Diagram

01 - Control Panel

02 - Door

03 - Front View

04 - Heater

05 - Motor Drive

06 - Motor Drive-thermostats

07 - Rear View

08 - Tumbler-beige

09 - Tumbler-gray

Select Diagram ... 01 - Control Panel 02 - Door 03 - Front View 04 - Heater 05 - Motor Drive 06 - Motor Drive-thermostats 07 - Rear View 08 - Tumbler-beige 09 - Tumbler-gray

01 - Control Panel   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WPW10139210	Screw, No.8 X 5/16 Inch (Series: 00)	$4.80  In-Stock Retail: $4.59
2	314165	Chime And Solenoid Bracket (Series: 00)	Call for Availability
3	Y311660	Chime (Series: 00)	Call for Availability
4	Y303350	Solenoid (Series: 00)	Call for Availability
5	Y312260	Link (Series: 00)	Call for Availability
6	Y303771	Chime Actuator Assembly (Series: 00)	$15.90 Special Order
7	Y313321	Chime Actuator (Series: 00)	Call for Availability
8	305950	Dryness-press Care Switch (Series: 00)	Call for Availability
9	215210	Button For Switch (Series: 00)	Call for Availability
10	215211	Button For Switch (Series: 00)	$4.40 Special Order
11	306042	Electronic Control (Series: 00)	Call for Availability
12	214872	Palnut, End Cap (Series: 00)	Call for Availability
13	314184	Back Up Plate (Series: 00)	Call for Availability
14	210932	Screw, No.8 X 9/16 Ctsk (Series: 00)	$4.40 Special Order
15	214815	End Cap F/control Panel-lh (Series: 00)	Call for Availability
16	214894	Fastener, End Cap (Series: 00)	$4.40 Special Order
17	306386	Control Panel (Series: 02)	Call for Availability
	305886	Control Panel (Series: 00)	Call for Availability
18	WP488234	Screw -relay To Tub Support (Series: 00)	$4.60 Special Order
19	314422	Timer Dial Indicator (Series: 00)	$4.70 Special Order
20	314421	Knob For Timer (Series: 00)	Call for Availability
21	W10155650	Nut (Series: 00)	$8.70 Special Order
22	215164	Cap For Knob (Series: 00)	$4.40 Special Order
23	214816	End Cap F/control Panel-rh (Series: 00)	$6.90 Special Order
24	214897	Pad, Control Panel (Series: 00)	$27.00 Special Order

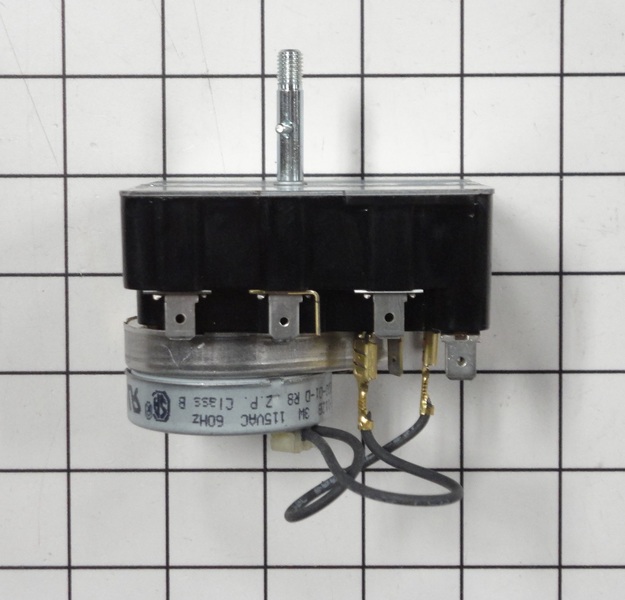

25	WP306039	Timer Rpr (Series: 00) (Replaces: 306039)	$212.50 Special Order
26	204807	Grnd.wire,supp.plte To Top Cvr (Series: 00)	$4.40 Special Order
27	WP90767	Screw (Series: 00)	$4.80  In-Stock Retail: $4.59
28	306043	Edgeboard Connector Assembl (Series: 00)	$51.30 Special Order
29	313611	Bracket F/electronic Contro (Series: 00)	$29.80 Special Order
30	Y305392	Printed Circuit Board (Series: 00)	Call for Availability
31	305946	Temperature Switch (Series: 00)	Call for Availability
32	WP67006908	Screw-temp. Switch To Panel (Series: 00)	$4.80 Special Order
33	Y305945	Control Switch (Series: 00)	Call for Availability
	215211	Button For Switch (Series: 00)	$4.40 Special Order
34	305978	Wire Harness-canada (Series: 00)	Call for Availability
	305947	Wire Harness (Series: 00)	Call for Availability
