03 - Control Panel   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	8534058	Screw (Series: 10)	$6.70 Special Order
	33001589	Panel, Control (alm) (Series: 10)	$41.00 Special Order
2	WP33002346	Skirt, Timer Dial (alm) (Series: 10) (Replaces: 33001622)	$27.20 Special Order
3	WP22001659	Timer Knob - Grey (Series: 10) (Replaces: 22001659)	$15.90  In-Stock Retail: $15.49
4	22001665	Insert, Timer Knob (alm) (Series: 10)	Call for Availability
5	33002435	Button, Push To Start (alm) (Series: 10)	$4.40  In-Stock Retail: $4.20
6	WP90767	Screw, Timer (Series: 10)	$4.80  In-Stock Retail: $4.59
7	WP33001632	Timer (Series: 10)   (Replaces: 33001632)	$197.70 Special Order
8	WP489128	Screw, Ground Wire To Base--na (Series: 10)	$6.70 Special Order
9	22001654	Wire, Ground (Series: 10)	$4.40 Special Order
10	WP489128	Screw (Series: 10)	$6.70 Special Order
11	33001623	Buzzer, Non-adjustable (Series: 10)	Call for Availability
12	33001727	Switch, Push-to-start (alm) (Series: 10)	$4.00 Special Order
13	33001669	Wire Harness, Main (Series: 10)	$58.80 Special Order
14	22001667	Knob, Selector Switch (alm) (Series: 10)	Call for Availability

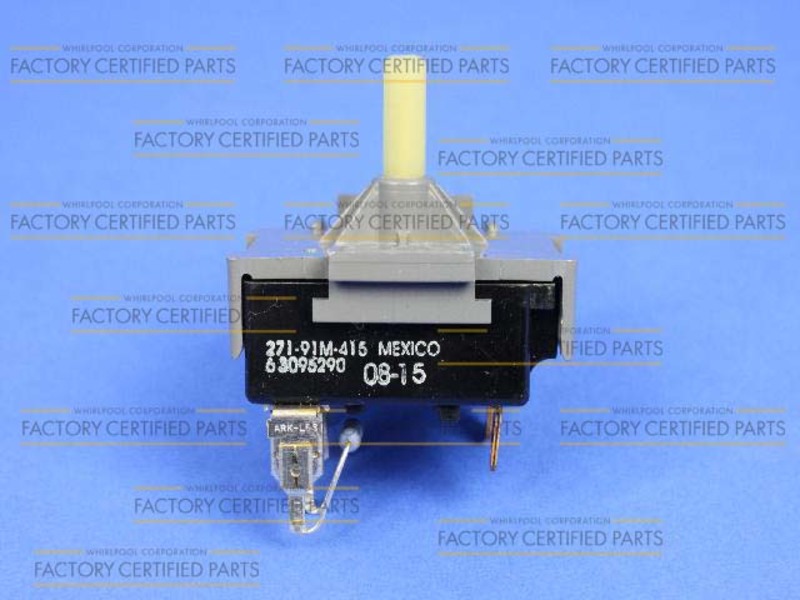

15	33001640	Switch, Temperature (Series: 10)	$87.30 Special Order
