Maytag LAT9406AAE Parts List

Popular Searches: (Click to search) assy bearing belt damper drive hose kit lid light lube pad pak poly pulley pump repair switch tub valve water

Select a Diagram

01 - Base (9406)

02 - Cabinet (9406)

03 - Clutch, Brake & Belts (9406)

04 - Control Panel (9406)

05 - Top (9406)

06 - Transmission

07 - Tub (9406)

08 - Wiring Information

09 - Wiring Information (ser Pre 15)

Double click the image below to zoom-in

Hover over In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability
1	WP22001619	Tube, Water Level Switch (Series: 10)	$49.30 In-Stock Retail: $48.01
2	WP22001664	Timer Knob Insert/cap (wht) (Series: 10) (Replaces: 22001664)	$4.80 In-Stock Retail: $4.59
3	22001708	Panel, Control (wht) (Series: 10)	Call for Availability
4	WP22001663	Knob, Selector Switch (wht) (Series: 10) (Replaces: 22001663)	$37.10 In-Stock Retail: $36.12
5	WPW10137328	Retainer, Timer Knob (Series: 10) (Replaces: 211605)	Call for Availability
6	8534058	Screw (Series: 10)	$6.70 Special Order
7	WP3400094	Screw, Timer (Series: 10)	$4.80 Special Order
8	22002207	Harness, Wire (Series: 15)	$46.80 Special Order
	22001756	Wire Harness, Main (Series: 10)	$51.80 Special Order

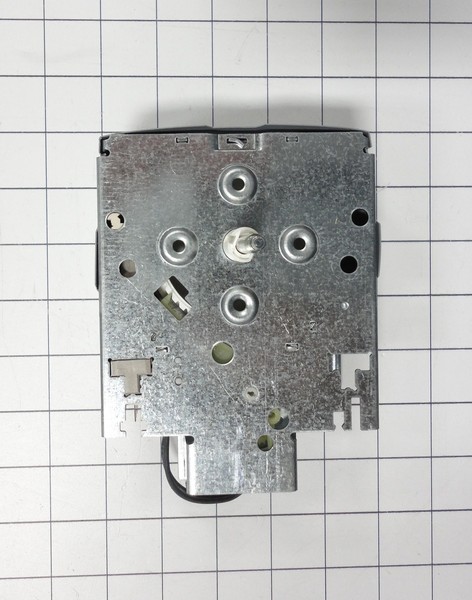

9	22003365	Timer (Series: 10) (Replaces: 22001831)	Call for Availability
	WP22003361	Timer (Series: 15) (Replaces: 22002200)	$261.60 Special Order
10	22001660	Dial Skirt - White (Series: 10)	$16.20 Special Order
11	WP22001659	Timer Knob - Grey (Series: 10) (Replaces: 22001659)	$15.90 In-Stock Retail: $15.49
12	WP211065	Spring, Timer Knob (Series: 10) (Replaces: 211065)	$4.80 Special Order
13	WP22001656	5 Level Rotary Pressure Switch (Series: 10) (Replaces: 22001656)	$107.90 Special Order
14	22001825	Temperature Switch - Rotary (Series: 10)	Call for Availability
16	16000327	Guide, Quick Ref. - Maytag (Series: 10)	Call for Availability
	22001770	Manual, Use & Care (french) (Series: 10)	Call for Availability
	22001764	Manual, Use & Care (Series: 10)	Call for Availability
