03 - Cooktop Burner   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	814512	Burner Base W/orifice (small (2))	$114.60  In-Stock Retail: $111.71
	814514	Burner Base W/orifice (large (2)) (Replaces: 9753431)	$88.10 Special Order
2	9753005	Tubing, Burner (rf)	$37.60 Special Order
3	9753006	Tubing, Burner (rr)	$37.60 Special Order
4	9753003	Tubing, Burner (lf)	$37.60 Special Order
5	9753004	Tubing, Burner (lr)	$37.60 Special Order
7	9753045	Valve, Burner Small (2)	$105.50 Special Order
8	9753044	Valve, Burner Large (2)	$89.10 Special Order

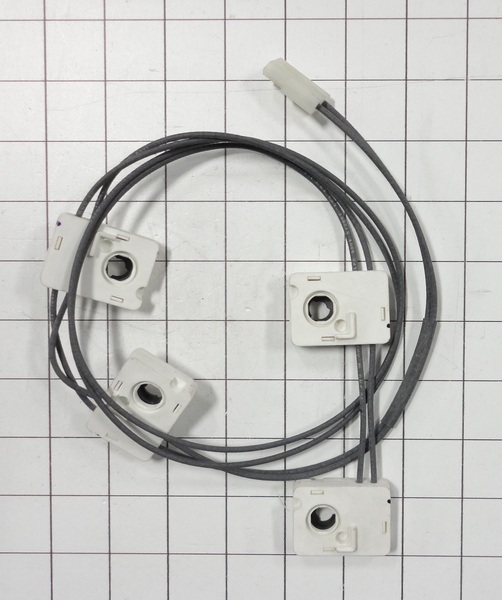

9	WP9752994	Spark Switch & Harness Assembly	$200.20 Special Order
10	9752996	Tubing, Manifold	Call for Availability
11	9752995	Manifold (2)	$66.70 Special Order
13	8184773	Electrode (Replaces: 3192527)	Call for Availability
14	W10491986	Bolt, Valve (4)	$4.50 Special Order

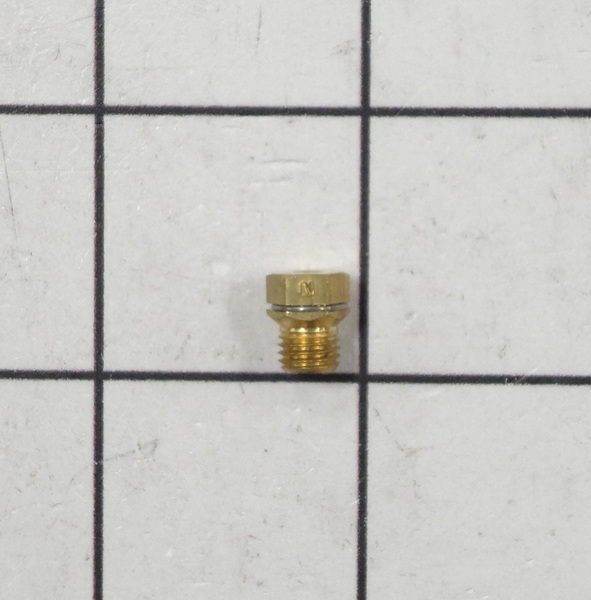

16	WP9753929	Orifice, Burner (large Base, 12k)	$52.60 Special Order

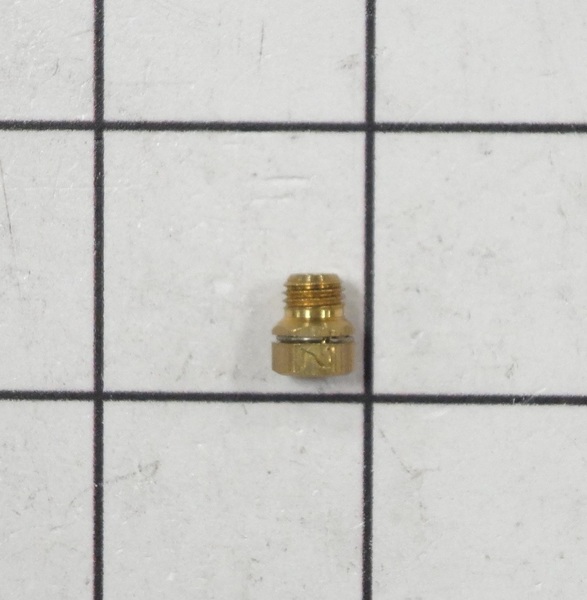

	WP9753928	Orifice, Burner (small Base, 6k)	$58.40 Special Order
18	9751854	Tubing, Flex	$40.90 Special Order
21	814512	Head, Burner (small) (Replaces: 9753109)	$114.60  In-Stock Retail: $111.71
	814514	Head, Burner (large)	$88.10 Special Order

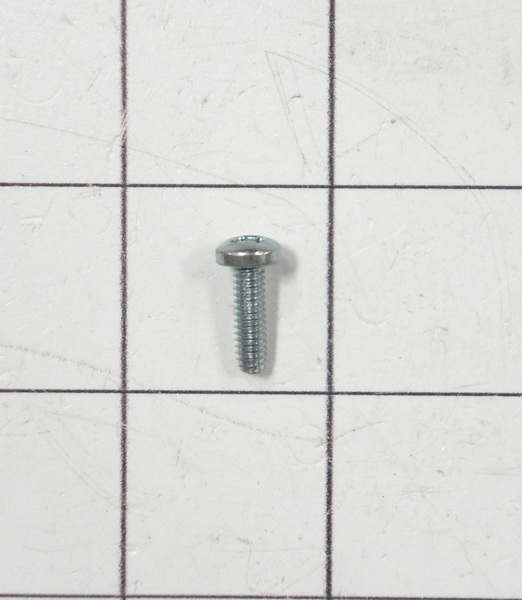

22	WP3400814	Screw, 8-32 X 5/8	$2.40 Special Order
NI	9752996	Tubing, Manifold	Call for Availability
