02 - Cabinet And Frame   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	8054490	Cabinet (white)	$232.50 Special Order
	3954709	Cabinet (biscuit)	$231.10 Special Order
	8522247	Cabinet (pewter)	$157.60 Special Order
2	8522246	Panel, Front (pewter)	$152.60 Special Order
	8318242	Panel, Front (biscuit)	Call for Availability
	8318240	Panel, Front (white)	$153.60 Special Order
3	8526005	Bracket, Top Lock	$13.80 Special Order
4	8283274	Brace, Cabinet (front)	$44.80 Special Order
5	WP8283273	Damper, Brace	$16.10 Special Order
6	8519823	Hinge, Top To Panel	$11.50 Special Order
7	8317308	Pad, Front Panel	$7.70 Special Order
8	3400085	Screw, 10-32 X 1/2	$4.40 Special Order
9	8518891	Rivet	$8.70 Special Order
10	8518896	Panel, Back	$52.70 Special Order
11	W11573574	Screw, 10-16 X 5/8	$8.70  In-Stock Retail: $8.47
12	8283364	Pan, Bottom	$67.00 Special Order
13	8054500	Frame, Cabinet	$82.50 Special Order
14	8300022	Switch, Motor (2)	$5.60 Special Order
15	8283353	Spacer, Cabinet	$4.40 Special Order
16	W10854425	Clip, Front Panel	$9.70  In-Stock Retail: $9.38
17	8299814	Harness, Lower (includes No. 30)	$98.30 Special Order

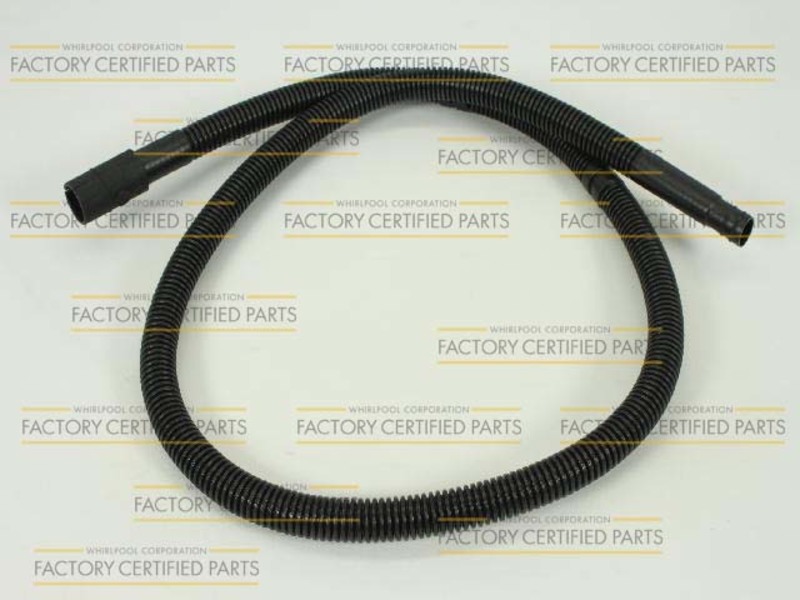

18	9724100	Hose, Drain	$17.70 Special Order
19	4389654	Screw, 8-18 X 3/8	$8.70 Special Order
20	8271831	Spacer	$4.40 Special Order
21	8318449	Lock, Top (front)	$28.00 Special Order
22	9724106	Retainer, Drain Hose (storage)	$23.90 Special Order
23	8310666	Power Cord Assembly	$31.30 Special Order
24	8283348	Cover, Harness	$12.90 Special Order
25	8054328	Strain Relief	$4.40 Special Order
26	WP693995	Screw 8-18 X 3/8   (Replaces: 693995)	$4.80  In-Stock Retail: $4.59
27	WP16123	Washer, Inlet Hose	$4.80 Special Order
28	WP89503	Hose, Water Inlet ((blue Coupler))	$7.80  In-Stock Retail: $11.98
	WP89503	Hose, Water Inlet ((red Coupler))	$7.80  In-Stock Retail: $11.98

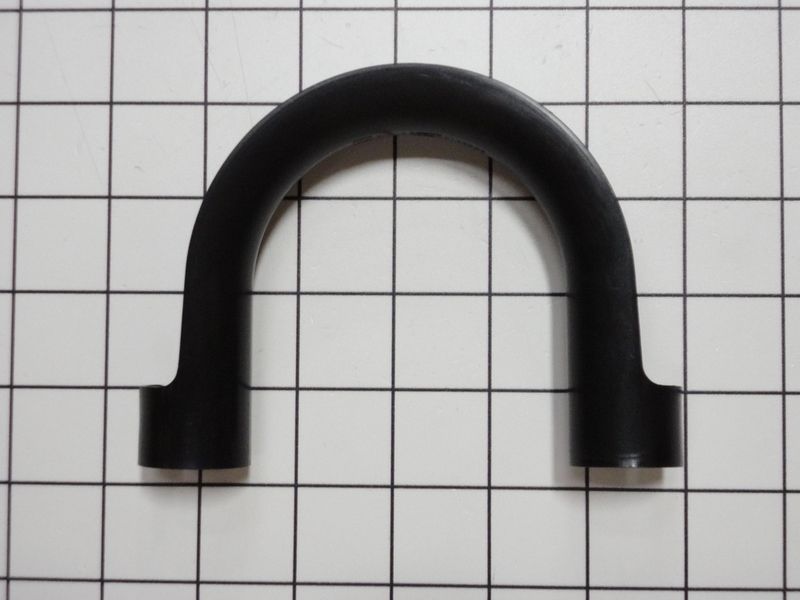

29	8528318	U-bend, Drain Hose	Call for Availability
30	8310651	Clip, Harness (3)	$6.30 Special Order
31	8528279	Gusset, Harness	$14.50 Special Order
32	WP692400	Nut, Push-in (Replaces: 692400)	$4.80  In-Stock Retail: $4.59
33	9724675	Clip, Drain Hose	$4.40 Special Order
34	W11233072	Screw, 8-18 X 1/2	$8.70  In-Stock Retail: $8.47
35	WPW10339879	Cable Tie (beaded)	$4.80 Special Order
36	8318208	Retainer, Drain Hose	$4.40 Special Order
37	W10891954	Screw, 8-18 X 3/8	$4.80 Special Order
38	3400811	Screw, 8-18 X 1.187	$7.70 Special Order
39	WP285655	Clamp, Hose	$4.80  In-Stock Retail: $4.59
