Whirlpool GU3600XTVY2 Parts List

Popular Searches: (Click to search)    assembly  balance  bracket  dispenser  door  drain  fill  hose  includes  link  metal  paint  pressurized  pump  seal  spray  touch  undercounter  valve  white


Select a Diagram

01 - Door And Panel Parts

02 - Control Panel Parts

03 - Door And Latch Parts

04 - Fill, Drain And Overfill Parts

05 - Tub And Frame Parts

06 - Pump, Washarm And Motor Parts

07 - Upper Wash And Rinse Parts

08 - Heater Parts

09 - Upper Rack And Track Parts

10 - Lower Rack Parts

11 - Optional Parts (not Included)

Select Diagram ... 01 - Door And Panel Parts 02 - Control Panel Parts 03 - Door And Latch Parts 04 - Fill, Drain And Overfill Parts 05 - Tub And Frame Parts 06 - Pump, Washarm And Motor Parts 07 - Upper Wash And Rinse Parts 08 - Heater Parts 09 - Upper Rack And Track Parts 10 - Lower Rack Parts 11 - Optional Parts (not Included)

06 - Pump, Washarm And Motor Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	8579273	Cover Sleeve	$6.60 Special Order
2	W10348405	Screw	$4.40 Special Order
3	8579234	Cover, Outlet	$4.70 Special Order
4	W10168822	Sump With Seal (includes Items 12, 13, & 2 Hose Clamps)   (Replaces: W10208687)	$159.80 Special Order
5	8579246	Retainer, Feed Tube	$5.40 Special Order
6	WP8579253	Screen	$52.40 Special Order
7	W10142900	Wash Arm Assembly	Call for Availability
8	W10872845	Filter Cup, Assembly	$47.10  In-Stock Retail: $45.88
9	8579311	Hose, Inlet (includes 3 Hose Clamps)	$121.90 Special Order

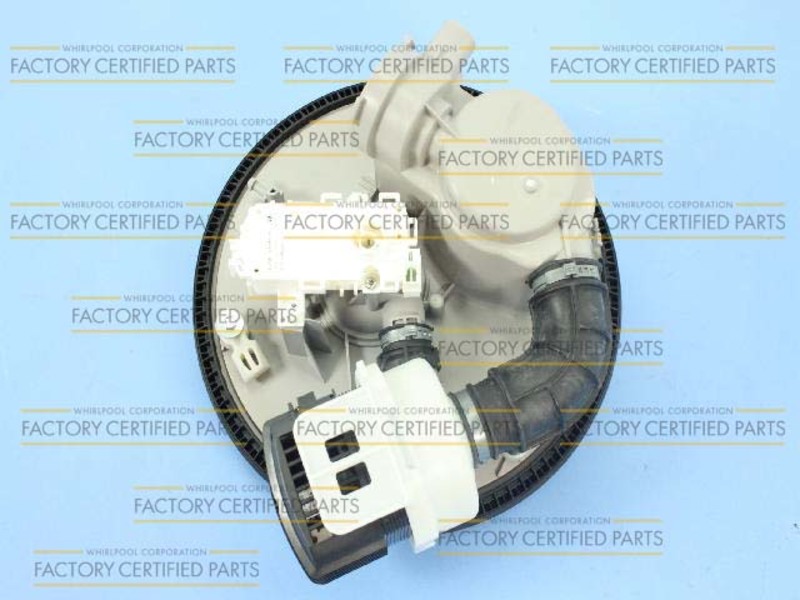

10	WPW10056309	Motor & Sump Assy. (includes Item 21)	$240.00 Special Order
11	8579272	Shield, Motor	$59.10 Special Order
12	WPW10348407	Screw	$4.80 Special Order
13	WPW10372113	Tab, Sump	$18.10 Special Order
14	WPW10348269	Pump, Drain (Replaces: W10158351)	$70.70  In-Stock Retail: $68.95
15	8269144A	Hose, Drain (Replaces: 8269144)	$16.80  In-Stock Retail: $16.39
16	8579251	Disc-valve Diverter	$10.20 Special Order
17	W10155344	Motor, Diverter Valve (includes Item 21)	$90.20  In-Stock Retail: $87.98
18	WP356138	Clamp, Hose (Replaces: 356138)	$4.80 Special Order
19	WPW10705575	Optical Water Indicator (Replaces: W10134017)	$26.20  In-Stock Retail: $25.56
20	WP9741232	Screw	$4.80 Special Order
21	WPW10083167	Fuse In-line	$41.90 Special Order
