Maytag LA484 Parts List

Popular Searches: (Click to search)    bearing  belt  clamp  damper  drive  hose  kit  lid  light  lube  pad  poly  pulley  pump  repair  siphon  switch  tub  valve  water


Select a Diagram

01 - Base

02 - Cabinet

03 - Clutch, Brake & Belts

04 - Control Panel

05 - Motor & Pump Assembly

06 - Top

07 - Transmission-helical Drive

08 - Transmission-orbital

09 - Tub-inner & Outer

10 - Tub-water Inlet & Tub Cover

Select Diagram ... 01 - Base 02 - Cabinet 03 - Clutch, Brake & Belts 04 - Control Panel 05 - Motor & Pump Assembly 06 - Top 07 - Transmission-helical Drive 08 - Transmission-orbital 09 - Tub-inner & Outer 10 - Tub-water Inlet & Tub Cover

04 - Control Panel   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	206231	Wire Harness (Series: 00)	Call for Availability
2	WPW10139210	Screw, No.8 X 5/16 Inch (Series: 00)	$4.80  In-Stock Retail: $4.59
3	206220	Water Level Switch (Series: 00)	Call for Availability
4	WP596669	Clamp,water Level Swtch Tube (Series: 00)	$4.80  In-Stock Retail: $4.59
5	WP22001619	Air Dome And Tube (Series: 00)	$49.30  In-Stock Retail: $48.01
6	WP22205033	Timer Motor 120-60 (Series: 00)	$68.30 Special Order
7	WP206230	Timer (Series: 00)   (Replaces: 206230)	Call for Availability
8	WP67006908	Screw-temp. Switch To Panel (Series: 00)	$4.80 Special Order
9	215211	Button For Switch (Series: 00)	$4.40 Special Order
10	206216	Water Temperature Switch (Series: 00)	Call for Availability
11	215212	Button For Switch (Series: 00)	Call for Availability

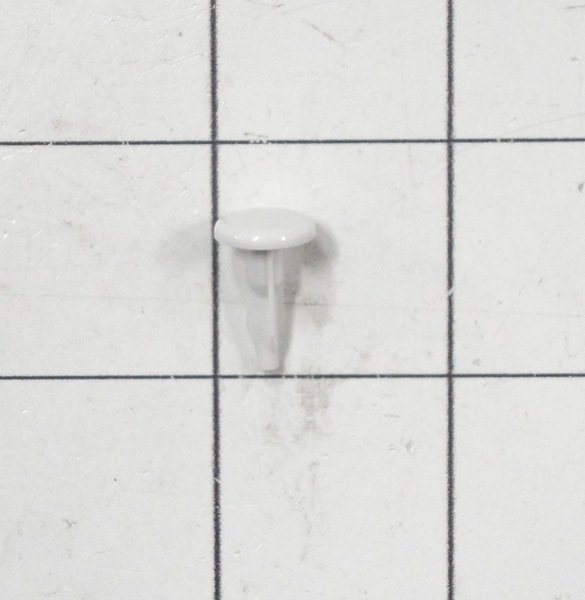

	214993	Button For Switch (Series: 00)	$4.40 Special Order
12	214897	Pad, Control Panel (Series: 00)	$27.00 Special Order
13	214872	Palnut, End Cap (Series: 00)	Call for Availability
14	210932	Screw, No.8 X 9/16 Ctsk (Series: 00)	$4.40 Special Order
15	214816	End Cap F/control Panel-rh (Series: 00)	$6.90 Special Order
16	214894	Fastener, End Cap (Series: 00)	$4.40 Special Order
17	WP3400014	Screw-timer To Control Pane (Series: 00)	$4.80 Special Order
18	WP211065	Spring, Timer Knob (Series: 00) (Replaces: 211065)	$4.80 Special Order
19	WPW10137328	Retainer, Timer Knob (Series: 00) (Replaces: 211605)	Call for Availability
20	215164	Cap For Knob (Series: 00)	$4.40 Special Order
21	215162	Timer Knob (Series: 00)	Call for Availability
22	22001571	Timer Dial Indicator (Series: 00)	$23.50 Special Order
23	214818	Back Up Plate (Series: 00)	Call for Availability
24	206564	Control Panel (Series: 00)	Call for Availability
25	214815	End Cap F/control Panel-lh (Series: 00)	Call for Availability
