Maytag LA212S Parts List

Popular Searches: (Click to search)    bearing  belt  break  clamp  damper  drive  kit  lid  light  lube  pad  poly  pulley  pump  repair  siphon  switch  tub  valve  water


Select a Diagram

01 - Base, Pump, Motor & Components

02 - Cabinet, Water Valve, Hoses & Frnt Panel

03 - Clutch, Brake & Belts

04 - Control Panel

05 - Orbital Transmission

06 - Suds Saver

07 - Top Cover, Console & Lid Switch

08 - Top Cover, Console & Lid Switch (ser 11)

09 - Transmission

10 - Tub, Agitator, Mtg. Stem & Seal (ser 04)

Select Diagram ... 01 - Base, Pump, Motor & Components 02 - Cabinet, Water Valve, Hoses & Frnt Panel 03 - Clutch, Brake & Belts 04 - Control Panel 05 - Orbital Transmission 06 - Suds Saver 07 - Top Cover, Console & Lid Switch 08 - Top Cover, Console & Lid Switch (ser 11) 09 - Transmission 10 - Tub, Agitator, Mtg. Stem & Seal (ser 04)

04 - Control Panel   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WP22205033	Timer Motor 120-60 (Series: 00)	$68.30 Special Order

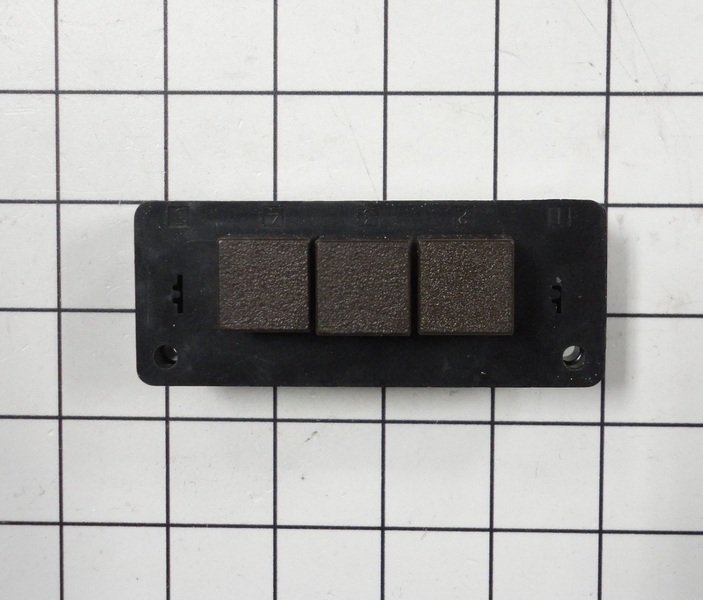

2	206216	Water Temperature Switch (Series: 00)	Call for Availability
3	206222	Infinite Water Level Switch (Series: 00)	Call for Availability
4	206226	Suds Save Switch (Series: 00)	$23.70 Special Order
6	206236	Timer (Series: 00)	Call for Availability
8	206560	Control Panel (Series: 00)	Call for Availability

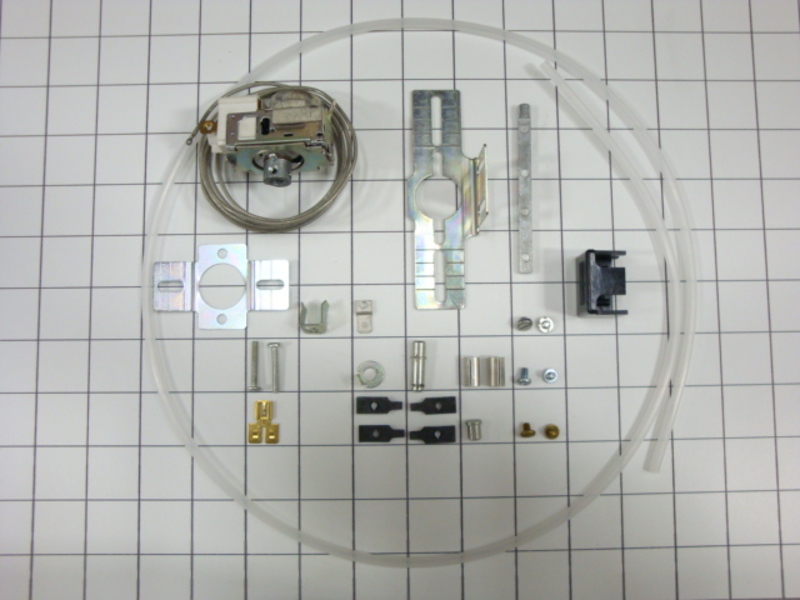

9	569869	Timer (Series: 03) (Replaces: 206630)	Call for Availability
10	206631	Control Panel (Series: 03)	Call for Availability
11	210932	Screw, No.8 X 9/16 Ctsk (Series: 00)	$4.40 Special Order
12	WP211065	Spring, Timer Knob (Series: 00) (Replaces: 211065)	$4.80 Special Order
13	WPW10139210	Screw, No.8 X 5/16 Inch (Series: 00)	$4.80  In-Stock Retail: $4.59
14	WPW10137328	Retainer, Timer Knob (Series: 00) (Replaces: 211605)	Call for Availability
15	WP67006908	Screw-temp. Switch To Panel (Series: 00)	$4.80 Special Order
16	WP3400014	Screw-timer To Control Pane (Series: 00)	$4.80 Special Order
17	214806	Cap For Timer Knob (Series: 00)	$4.40 Special Order
18	214815	End Cap F/control Panel-lh (Series: 00)	Call for Availability
19	214816	End Cap F/control Panel-rh (Series: 00)	$6.90 Special Order
20	214872	Palnut, End Cap (Series: 00)	Call for Availability
21	214894	Fastener, End Cap (Series: 00)	$4.40 Special Order
22	214897	Pad, Control Panel (Series: 00)	$27.00 Special Order
23	22001571	Timer Dial Indicator (Series: 00)	$23.50 Special Order
24	215162	Timer Knob (Series: 00)	Call for Availability
25	215164	Cap For Knob (Series: 00)	$4.40 Special Order
