Maytag LA105 Parts List

Popular Searches: (Click to search) bearing belt break clamp damper drive kit lid light lube pad poly pulley pump repair siphon switch tub valve water

Select a Diagram

01 - Base, Pump, Motor & Components

02 - Cabinet, Water Valve, Hoses & Frnt Panel

03 - Clutch, Brake & Belts

04 - Control Panel

05 - Orbital Transmission (series 10)

06 - Top Cover, Console & Lid Switch

07 - Top Cover, Console & Lid Switch (ser 11)

08 - Transmission

09 - Tub, Agitator, Mounting Stem & Seal

Double click the image below to zoom-in

Hover over In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability
1	205410	Timer Motor 120-60 (Series: 00)	Call for Availability
2	206216	Water Temperature Switch (Series: 00)	Call for Availability
3	206513	Water Level Control Switch (Series: 00)	Call for Availability

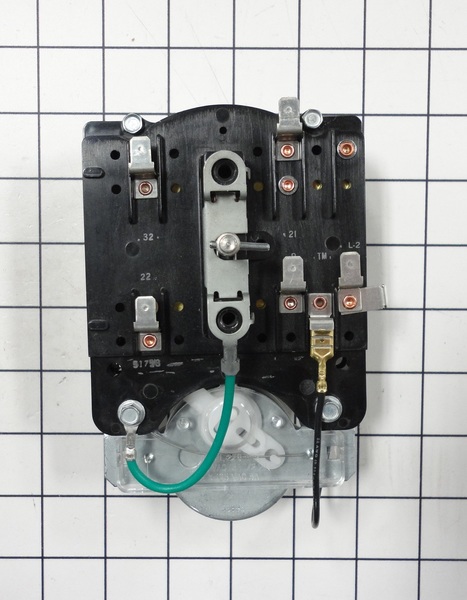

4	WP206686	Timer (Series: 00) (Replaces: 206686)	Call for Availability
5	206877	Control Panel (Series: 00)	Call for Availability
6	WP211065	Spring, Timer Knob (Series: 00) (Replaces: 211065)	$4.80 Special Order
7	WPW10139210	Screw, No.8 X 5/16 Inch (Series: 00)	$4.80 In-Stock Retail: $4.59
8	WPW10137328	Retainer, Timer Knob (Series: 00) (Replaces: 211605)	Call for Availability
9	WP67006908	Screw-temp. Switch To Panel (Series: 00)	$4.80 Special Order
10	WP3400014	Screw-timer To Control Pane (Series: 00)	$4.80 Special Order
11	214818	Back Up Plate (Series: 00)	Call for Availability
12	214872	Palnut, End Cap (Series: 00)	Call for Availability
13	214894	Fastener, End Cap (Series: 00)	$4.40 Special Order
14	214897	Pad, Control Panel (Series: 00)	$27.00 Special Order
15	22001571	Timer Dial Indicator (Series: 00)	$23.50 Special Order
16	215162	Timer Knob (Series: 00)	Call for Availability
17	215163	Cap For Knob (Series: 00)	Call for Availability
18	215552	End Cap, L.h. (Series: 00)	Call for Availability
19	215553	End Cap, R.h. (Series: 00)	Call for Availability
20	210932	Screw,ctrl.pnl & End Cap(blk) (Series: 00)	$4.40 Special Order
