Whirlpool 3XLER5437KQ6 Parts List

Popular Searches: (Click to search)    assembly  belt  bracket  catch  door  drive  dryer  fuse  idler  kit  paint  pressurized  pulley  repair  roller  strike  support  switch  thermal  white


Select a Diagram

01 - Top And Console Parts

02 - Cabinet Parts

03 - Bulkhead Parts

04 - Optional Parts (not Included)

Select Diagram ... 01 - Top And Console Parts 02 - Cabinet Parts 03 - Bulkhead Parts 04 - Optional Parts (not Included)

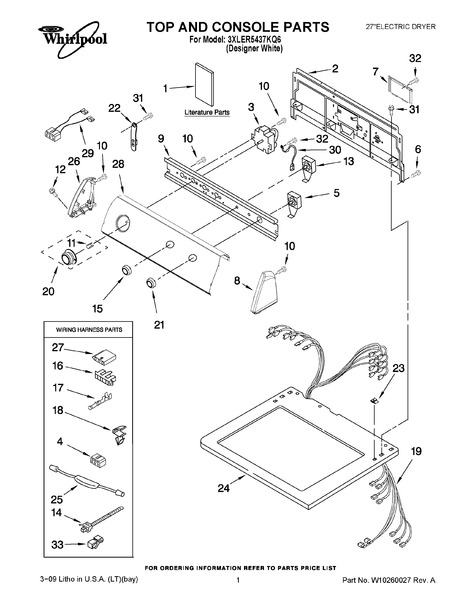

01 - Top And Console Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10167635	Wiring Diagram	Call for Availability
	W10115524	Instructions, Installation	Call for Availability
	W10131645	Guide, Use & Care	Call for Availability
2	285909	Panel, Rear Console	$160.80 Special Order
3	8299770	Timer	$142.50 Special Order
4	3347243	Connector 6-circuit	$35.50 Special Order
5	WP3395382	Switch, Push-to-start (Replaces: 3395382)	$39.60  In-Stock Retail: $38.55
6	WP693995	Screw 8-18 X 3/8   (Replaces: 693995)	$4.80  In-Stock Retail: $4.59
7	W10601020	Cover, Terminal Block   (Replaces: W10096918)	$44.60 Special Order
8	W10820038	Cap, End (r.h.)	$55.10 Special Order
9	8271316	Bracket, Control	$28.20 Special Order
10	WP90767	Screw,8-18 X 5/16	$4.80  In-Stock Retail: $4.59
11	WP688805	Spring Clip   (Replaces: 688805)	$4.80  In-Stock Retail: $4.59
12	WP388326	Screw, Console (Replaces: 388326)	$4.80  In-Stock Retail: $4.59
13	W10115453	Switch, Temperature	$32.20 Special Order
14	WP3391018	Tie, Cable	$20.50 Special Order
15	WP3957799	Knob, Control (Replaces: 3957799)	$35.40 Special Order
16	3397269	Connector, Timer	$17.90 Special Order
17	WP94614	Terminal	$4.80 Special Order
18	WP3394427	Clip, Harness	$4.80  In-Stock Retail: $4.59
19	W10167633	Harness, Wiring	$147.00 Special Order
20	WP3957754	Timer Knob Assembly   (Replaces: 3957754)	$40.40 Special Order
21	3957804	Knob, Push-to-start	$35.20 Special Order
22	WP8568314	Strap, Console	$4.80 Special Order
23	WP357213	Nut, Push-in (2) (Replaces: 357213)	$4.80  In-Stock Retail: $4.59
24	3979278	Top	$24.80 Special Order
25	279872	Resistor, Assembly	$52.30  In-Stock Retail: $50.97
26	W10820038	Cap, End (l.h.)	$55.10 Special Order
27	3936144	Connector	$13.70 Special Order
28	8318383	Panel, Control	$121.50 Special Order
29	8283286	Wire, Jumper Assembly	$51.40 Special Order
30	3395559	Wire, Ground	$30.60 Special Order
31	WP488729	Screw, 8-18 X 1/2	$4.80  In-Stock Retail: $4.59
32	303776	Screw, 8-32 X 5/16	$6.80 Special Order
33	W10113937	Clip, Grounding	$7.00  In-Stock Retail: $6.82
