Whirlpool 3XLER5437KQ1 Parts List

Popular Searches: (Click to search)    assembly  belt  bracket  catch  door  drive  dryer  fuse  idler  kit  paint  pulley  repair  roller  spray  strike  support  switch  thermal  white


Select a Diagram

01 - Top And Console Parts

02 - Cabinet Parts

03 - Bulkhead Parts

Select Diagram ... 01 - Top And Console Parts 02 - Cabinet Parts 03 - Bulkhead Parts

01 - Top And Console Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	LIT8318344	Literature Parts (guide, Use & Care)	Call for Availability
	677818L	Literature Parts (manual, Do-it- Yourself Repair (dryer)) (Replaces: LIT677818)	$29.40 Special Order
	N/A	Following May Be Purchased Do-it-yourself Repair Manuals	Call for Availability
	LIT8528095	Literature Parts (instructions, Installation)	Call for Availability
	LIT8318458	Literature Parts (wiring Diagram)	Call for Availability
2	285909	Panel, Rear Console	$150.30 Special Order
3	8299770	Timer	$142.50 Special Order
4	3347243	Connector 6-circuit	$35.50 Special Order
5	WP3395382	Switch, Push-to-start (Replaces: 3395382)	$37.00  In-Stock Retail: $36.03
6	WP693995	Screw 8-18 X 3/8   (Replaces: 693995)	$4.80 Special Order
7	WPW10119283	Cover, Terminal Block	$77.30 Special Order
8	W10820038	Cap, End (r.h.)	$51.50 Special Order
9	8271316	Bracket, Control	$28.20 Special Order
10	WPW10139210	Screw, 8-18 X 5/16	$4.80  In-Stock Retail: $4.59
12	WP388326	Screw, Console (Replaces: 388326)	$4.80  In-Stock Retail: $4.59
13	3399638	Switch, Temperature	$84.60 Special Order
14	WP3391018	Tie, Cable	$20.50 Special Order
15	WP3957799	Knob, Control (Replaces: 8271339)	$33.10 Special Order
16	3397269	Connector, Timer	$17.90 Special Order
19	8529874	Harness, Wiring	$177.30 Special Order
20	WP3957754	Timer Knob Assembly	$37.70 Special Order

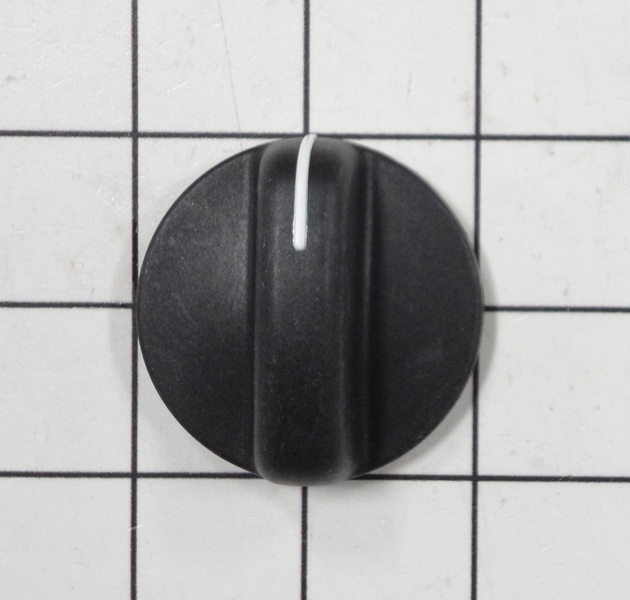

21	3957804	Knob, Push To Start (Replaces: 8271341)	$32.90 Special Order
22	WP8568314	Strap, Console	$4.80 Special Order
23	WP357213	Nut, Push-in (2) (Replaces: 357213)	$4.80  In-Stock Retail: $4.59
24	3979278	Top	$24.80 Special Order
26	W10820038	Cap, End (l.h.)	$51.50 Special Order
27	3936144	Connector	$13.70 Special Order
31	8318383	Panel, Control	$121.50 Special Order
32	8283286	Wire, Jumper Assembly	$48.00 Special Order
33	3395559	Wire, Ground	$30.60 Special Order
35	WP488729	Screw, 8-18 X 1/2	$4.80  In-Stock Retail: $4.59
36	303776	Screw, 8-32 X 5/16	$6.80 Special Order
37	W10113937	Clip, Grounding	$7.00  In-Stock Retail: $6.82
40	279872	Resistor, Assembly	$48.90  In-Stock Retail: $47.64
41	WP3394427	Clip, Harness	$4.80 Special Order
44	WP94614	Terminal (female)	$4.80 Special Order
