Maytag JRSD224 (BOM: 8N61A) Parts List

Popular Searches: (Click to search)    bulb  defrost  dispenser  ice  light  screw  switch  thermostat  washer  water  yoke


Select a Diagram

01 - Freezer Compartment

02 - Freezer Door

03 - Fresh Food Compartment

04 - Fresh Food Door

05 - Ice Cream Maker Kit (icm100)

06 - Unit Compartment & System

07 - Water & Ice Dispenser

Select Diagram ... 01 - Freezer Compartment 02 - Freezer Door 03 - Fresh Food Compartment 04 - Fresh Food Door 05 - Ice Cream Maker Kit (icm100) 06 - Unit Compartment & System 07 - Water & Ice Dispenser

04 - Fresh Food Door   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	66689-1-WW	Panel, F.f. Door (wht)	Call for Availability
	RA95060-1	Insulation Kit	$25.70 Special Order
	66689-1-AM	Panel, F.f. Door (alm)	Call for Availability
2	495034-900	Plug Button, Door	Call for Availability
3	66799-1	Achor, Screw	$4.40 Special Order
	66720-2	Door Trim	$92.40 Special Order
	66723-1	Clip	Call for Availability
	400019-1	Screw	Call for Availability
4	66715-1	Perimeter Trim	Call for Availability
5	66717-1	Perimeter Trim	Call for Availability
6	66719-2	Perimeter Trim	Call for Availability
	W11233072	Screw	$8.70  In-Stock Retail: $8.47
7	66641-1	Bezel, Nameplate	Call for Availability
8	66646-1	Insert	Call for Availability
9	68381-1	Retainer, Nameplate Bezel	Call for Availability
10	60066-9	Tray, Egg	$12.30 Special Order
11	54485-2	Closer, Door	$51.30 Special Order
	WP489478	Screw (Replaces: 400017-1)	$4.80  In-Stock Retail: $4.59
	52613-1	Insulation, Closer	$1.30 Special Order
	52614-1	Bracket, Closer	$5.80 Special Order
12	9986-12	Screw,door Liner	$1.10 Special Order
	65641-6	Liner, F.f. Door	Call for Availability
13	53712-2	Gasket	$44.00 Special Order
14	69918-3	Door, Dairy	$41.30 Special Order
15	29936-2	Tray, Butter	$2.20 Special Order
16	68121-23	Insert	Call for Availability
17	65781-3	Shelf Front	$40.90 Special Order
18	68121-26	Insert	Call for Availability
19	66645-2	Organizer	Call for Availability
20	70121-4	Cover, Upper Hinge (wht)	$1.40 Special Order
	WP3-24838-048	Screw (Replaces: 9986-87)	$4.80 Special Order
	65003-3	Cover, Upper Hinge (alm)	Call for Availability
		Hinge, Upper	Call for Availability
21	WP52185-1	Washer	$6.80  In-Stock Retail: $6.55
22	66036-2	Bushing, Upper Hinge	$4.40 Special Order
23	65031-1	Shim, Upper Hinge	$12.70 Special Order
24	55990-1	Seal Sleeve	$0.50 Special Order
25	60630-12	Hinge, Lower	$21.40 Special Order
	403062-801	Screw	Call for Availability
26	65418-1	Pin	$12.40 Special Order
27	54233-1	Washer	$0.50 Special Order

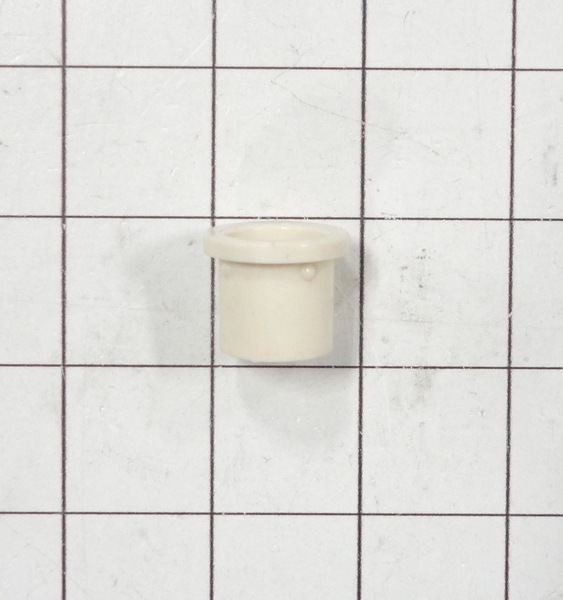

28	66037-1	Hinge Bushing	$4.40 Special Order
29	60626-1	Shim, Lower Hinge	Call for Availability
30	65964-1	Tapping Plate, Lower Hinge	Call for Availability
31	69608-1	Shelf, Pick-off	$31.80 Special Order
32	65637-204	Cover	Call for Availability
